Mascot Stabilised Linear AC/DC Adapter 230V AC Input 3A Output 12V 36W TS070709 8421-12/30

Free Delivery in India | Lowest Global Shipping Charges

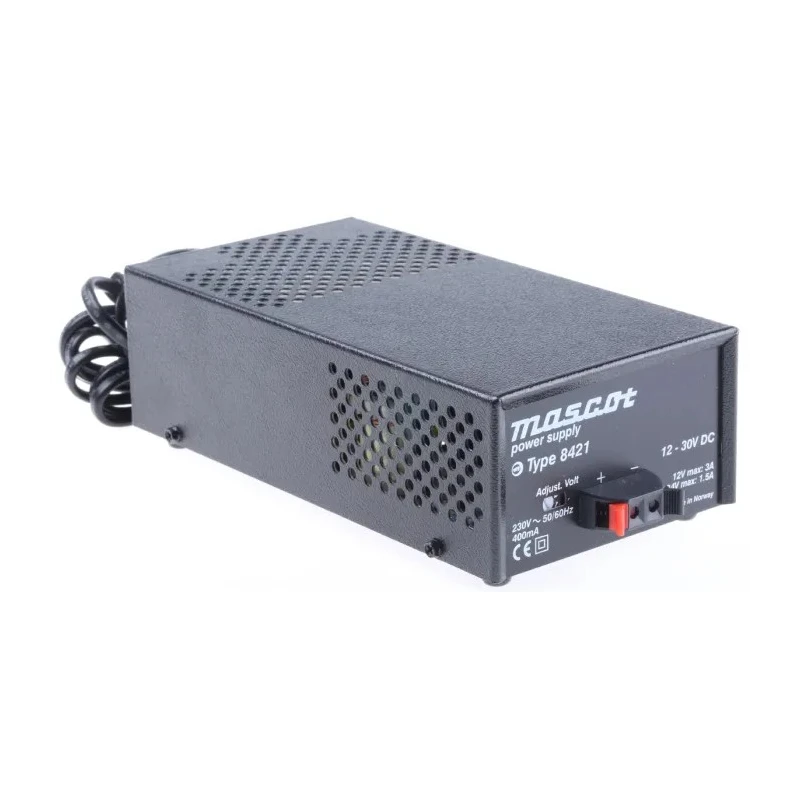

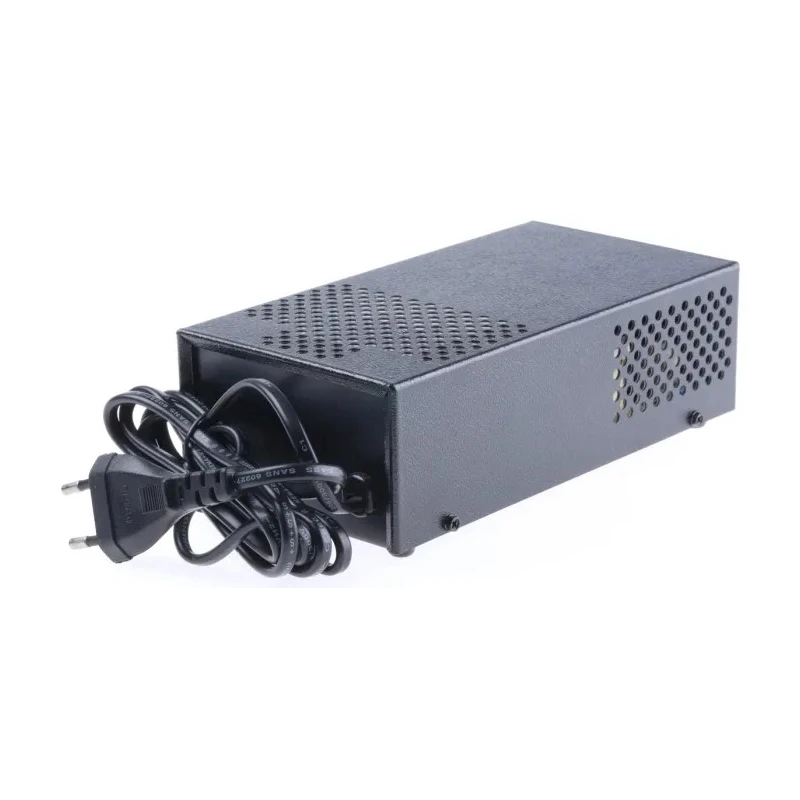

Mascot Stabilised Linear AC/DC Adapter 230V AC Input 3A Output 12V 36W TS070709 8421-12/30

Name: Mascot Stabilised Linear AC/DC Adapter 230V AC Input 3A Output 12V 36W TS070709 8421-12/30
Brand: Mascot
SKU: 170478
Price: 20.22 USD
Availability: InStock



Category AC/DC Adapter Brand Mascot Condition New

Specifications

Country of Origin	India
Brand	Mascot
Model	8421-12/30
Input	mains connector lead with plug
Overall Length	190mm
Series	TS070709
Overall Width	100mm
Maximum Operating Temperature	40°C
Maximum Input Voltage	230V ac
Maximum Output Current	3A
Standards/Approvals	EN 60065
Minimum Input Voltage	198V ac
Overall Depth	57mm
Minimum Output Voltage	12V

Key Features

Operates with a 230V AC input voltage and delivers a regulated 12V DC output.
Provides a maximum output current of 3A ensuring steady power supply.
Compact dimensions of 190mm length, 100mm width, and 57mm depth for easy installation.
Equipped with short-circuit protection for enhanced device safety.
Designed for operating temperatures up to 40°C to maintain performance stability.
Includes a mains connector lead with plug for easy connectivity.
High power density enabling excellent power-to-footprint ratio.
Optional attachment system supports adaptation to various socket types including vehicle sockets.

Product Description

Mascot 8421-12/30 is a stabilised linear AC/DC Adapter designed to provide efficient and reliable power conversion for electronic applications. This unit accepts a 230V AC input voltage within an operating range of 198V to 230V, converting it to a stable 12V output at a maximum current of 3A with a total power rating of 36W.

The compact form factor, measuring 190mm in length, 100mm in width, and 57mm in depth, makes it suitable for tight installation environments. Constructed with high power density, the adapter ensures excellent power output relative to its size.

Built-in short-circuit protection safeguards both the adapter and connected devices from electrical faults, enhancing operational safety. It operates reliably in environments up to 40°C maximum temperature, ensuring stable performance under typical conditions.

The adapter comes with a mains connector lead and plug for straightforward connection to standard mains supplies. Additionally, an optional attachment system allows adaptation for use with vehicle socket installations, adding versatility for mobile or automotive applications.

This adapter complies with EN 60065 safety standards, reflecting its high-quality manufacture and suitability for consumer electronic use, though it is not compliant for industrial use and falls outside the scope of Regulation (EC) No 125/2009.

Operates on 230V AC input voltage with an operating range of 198V AC minimum. Provides a stable 12V DC output at maximum 3A current. Compact size: 190mm (L) x 100mm (W) x 57mm (D). Includes short-circuit protection for device safety.

Compatible with various socket types via optional attachments. Suitable for operating temperatures up to 40°C. High power density design for efficient usage of space. Compliant with EN 60065 safety standard.

This AC/DC Adapter is ideal for low power electronic devices in home, laboratory, and commercial settings requiring a high-quality, stable power supply. Explore the range of AC/DC Adapters and Power Supplies by Mascot on EnvMart for suitable power solutions.
