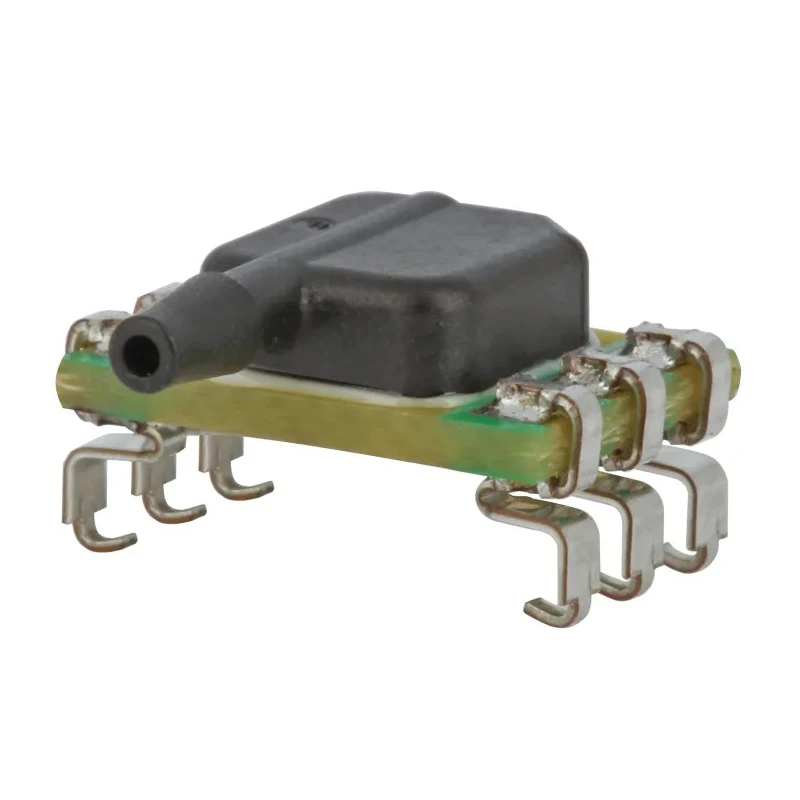

Honeywell Technologies Piezoresistive Gauge Pressure Sensor Surface Mount 6 Pin SMT ABP2MRNT001BG2A3XX
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell Technologies |
| Maximum Operating Pressure | 100 kPa |
| Height | 10.59mm |
| Length | 8.2mm |
| Model | ABP2MRNT001BG2A3XX |
| Sensor Type | Gauge Pressure Sensor |
| Width | 7.2mm |
| Mount Type | Surface |
| Series | ABP2 |
| Maximum Operating Temperature | 110°C |
| Port Type | Dual Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Operating Pressure | 600Pa |
| Maximum Overload Pressure | 16bar |
Key Features
- Offers high accuracy with ±0.25% precision for reliable measurements.
- Operates over a wide temperature range of -40°C to 110°C.
- Supports supply voltage between 1.8V minimum and 3.6V maximum.
- Maximum operating pressure is 100 kPa with an overload pressure of 16 bar.
- Compact dimensions measuring 10.59mm height, 8.2mm length, and 7.2mm width.
- Features dual axial barbed port type for versatile pressure connections.
- Reaches minimum operating pressure of 600 Pa suitable for sensitive applications.
- Compliant with RoHS standards ensuring environmental safety.
Product Description
Honeywell Technologies ABP2MRNT001BG2A3XX is a state-of-the-art piezoresistive gauge pressure sensor designed for surface mount technology with 6 pins in an SMT package. This sensor delivers high accuracy of ±0.25%, supporting supply voltage from 1.8V up to 3.6V, making it suitable for a range of sensitive electronic applications.
It operates reliably in harsh industrial and medical environments with an operating temperature range from -40°C to 110°C and offers a maximum operating pressure of 100 kPa and an overload pressure capability up to 16 bar.
The compact form factor at 10.59mm height, 8.2mm length, and 7.2mm width allows easy integration into compact PCB assemblies. Features such as the dual axial barbed port type improve connectivity for pneumatic and gas pressure measurements.
Typical use cases include ventilators, CPAP machines, blood pressure monitoring, HVAC transmitters, material handling equipment, and process gas monitoring. This sensor is REACH and RoHS compliant, ensuring environmental standards are met for safe and sustainable manufacturing.
High accuracy of ±0.25% for precise pressure sensing. Wide operating temperature range from -40°C to 110°C. Supports supply voltages from 1.8V to 3.6V. Compact surface mount package with 6 pins. Dual axial barbed ports for flexible pressure connections.
Capable of measuring pressures from 600 Pa to 100 kPa. RoHS compliant ensuring restriction of hazardous materials. Ideal for medical, HVAC, and industrial pneumatic applications. Explore the Honeywell Technologies series for reliable pressure sensing solutions in electronic, industrial, and medical instrumentation fields.
