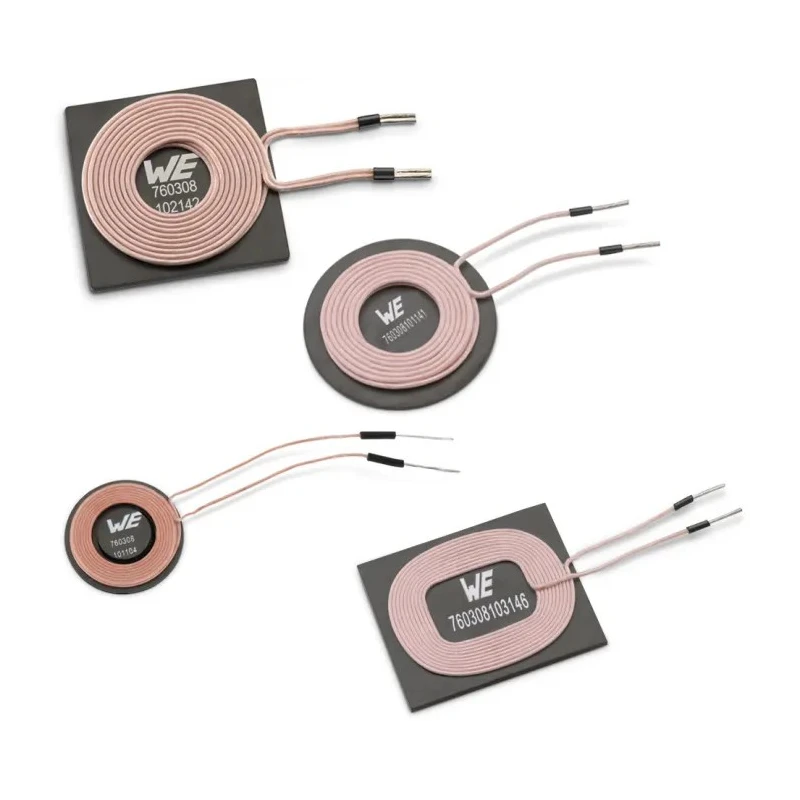

Wurth Elektronik Wireless Charging Coil Transmitter 6 A, 24 μH, 54 mm Diameter 760308101312

Wurth Elektronik 760308101312 wireless charging coil transmitter is a high-quality electronic component designed for wireless power transfer solutions. With an inductance of 24 μH and a diameter of 54 mm, this coil supports a maximum DC current of 6 A, making it suitable for applications such as portable device charging and industrial clean room environments.

Constructed with a ferrite core and a radial mounting style, the coil ensures efficient electromagnetic coupling while maintaining durability across a wide temperature range from -20°C to 105°C. Its low DC resistance of 90 mΩ helps minimize power loss during operation.

The coil's robust design allows it to handle frequencies up to 63 MHz, providing compatibility with contemporary wireless charging standards such as mQi. It incorporates high permeability shielding to prevent charging flux interference with sensitive components or batteries, which is crucial for sectors like medical facilities, industrial clean rooms, and mining industries.

The coil complies with RoHS directives, confirming its environmental and safety standards adherence. Manufactured in China, it maintains consistent quality demanded by industrial and commercial applications.

This coil is designed specifically for wireless power transfer applications. It features a radial mount type with ferrite core material ensuring efficient performance. The maximum DC current rating is 6 A with a low DC resistance of 90 mΩ.

It operates reliably within temperature ranges from -20°C to 105°C. The coil has a high quality factor minimum of 30, optimizing power transfer efficiency. Termination is radial style suitable for various electronic assembly methods.

RoHS compliant and manufactured in China under strict quality standards. Its self-resonant frequency reaches up to 63 MHz to accommodate high-frequency operation.

This product is ideal for use in industrial, medical, mining, and clean-room electronics systems requiring reliable wireless coil transmission components. Explore more Wurth Elektronik components and wireless charging solutions on EnvMart for your design and manufacturing requirements.
