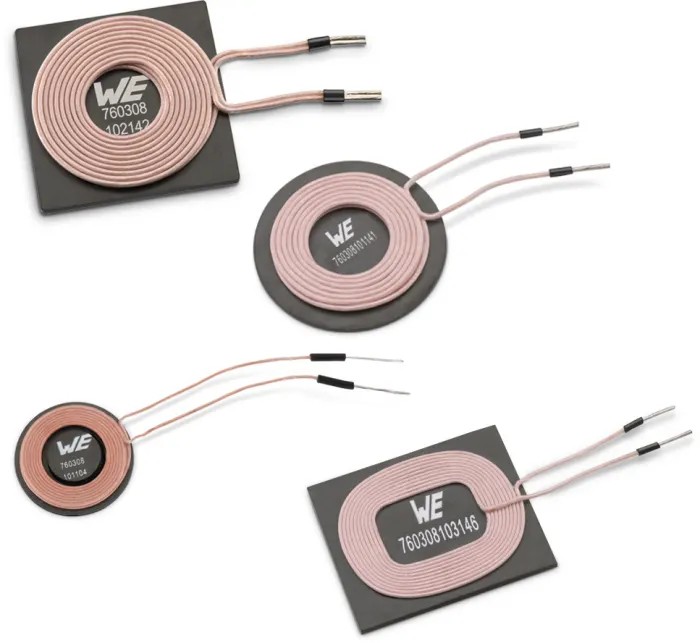

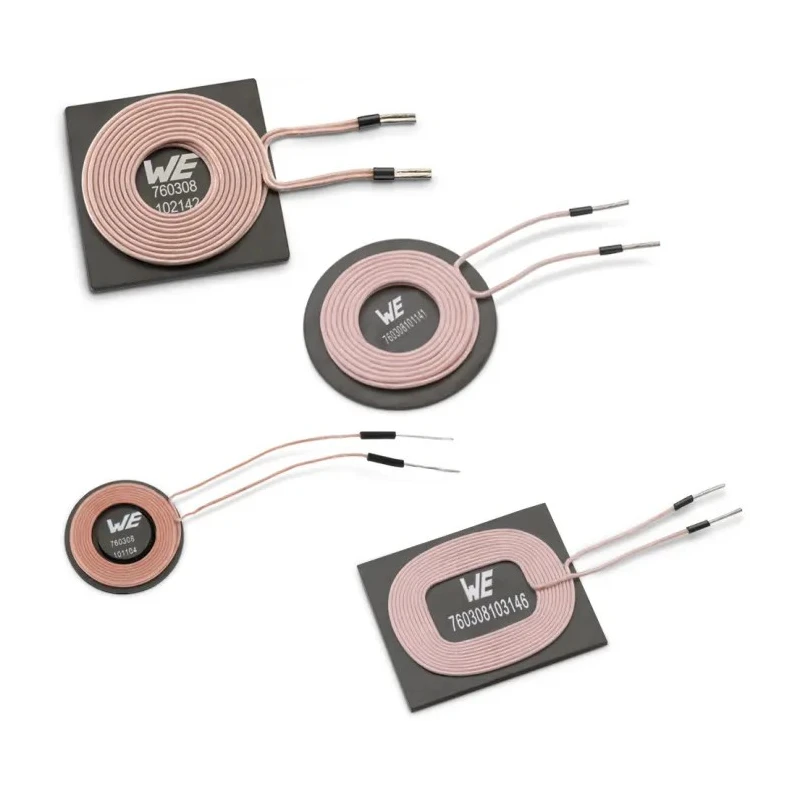

Wurth Elektronik WE-WPCC Wireless Charging Coil Transmitter 21 A, 5.8 μH, 70 mm Diameter 760308101311

Wurth Elektronik 760308101311 wireless charging coil transmitter is engineered for transmitting power in wireless charging systems, supporting currents up to 21 A with a 5.8 μH inductance and a diameter of 70 mm. Its ferrite core delivers high inductance and permeability necessary for efficient wireless power transfer.

With its radial mount and termination style, it easily integrates into printed circuit boards, making it ideal for compact and portable electronic applications. The coil operates within a wide temperature range (-20°C to 105°C), ensuring reliable performance in diverse environments including industrial, medical, and cleanroom settings.

This transmitter coil is designed to support up to 15 W power within mQi standards and can handle up to 300 W outside these specifications. Its high quality factor of at least 220 guarantees minimal energy loss during transmission. The coil features high permeability shielding to prevent coupling flux from interfering with sensitive components or batteries.

Wurth Elektronik's WE-WPCC series wireless charging coil is RoHS compliant, ensuring environmental safety and regulatory compliance. Its maximum self-resonant frequency of 13 MHz is suitable for high-frequency applications, enabling efficient power transfer for modern wireless charging devices.

Transmitter coil optimized for wireless power applications. Ferrite core material for high inductance and efficiency. Maximum DC current rating of 21 A with a 14 mΩ resistance. Radial mount and termination for PCB integration.

Operating temperature range from -20°C to 105°C. Minimum quality factor of 220 ensuring efficient energy transfer. RoHS standard compliant for environmental safety. Maximum self-resonant frequency of 13 MHz for high-frequency operation.

Diameter of 70 mm for compact device compatibility.

Applicable in industrial, medical, and cleanroom wireless charging assemblies, this coil is ideal for integration into portable devices requiring efficient and reliable power transfer without physical connectors. Choose Wurth Elektronik wireless charging coils for robust and compliant solutions.
