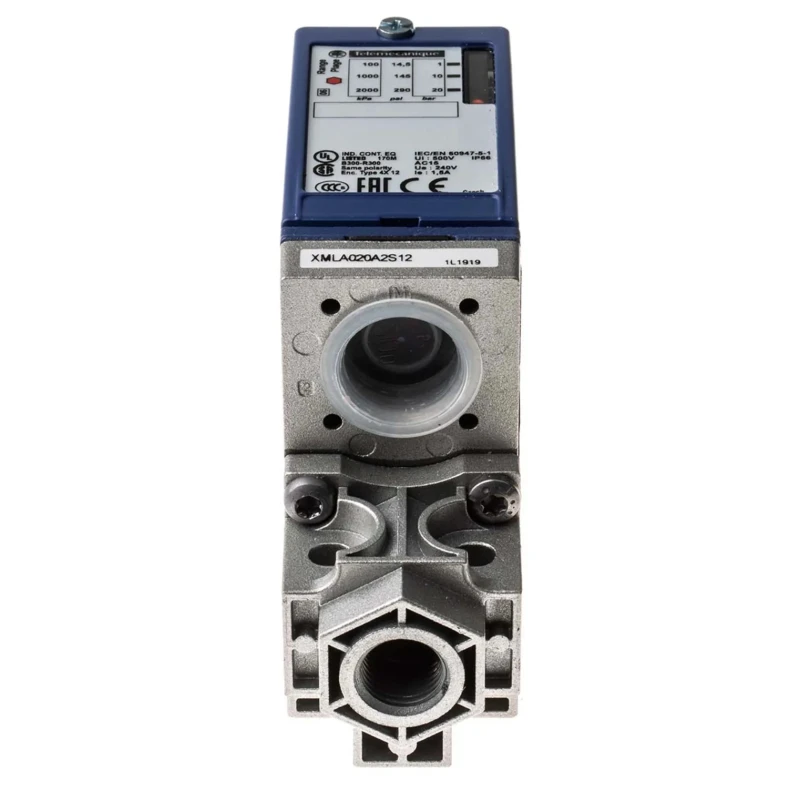

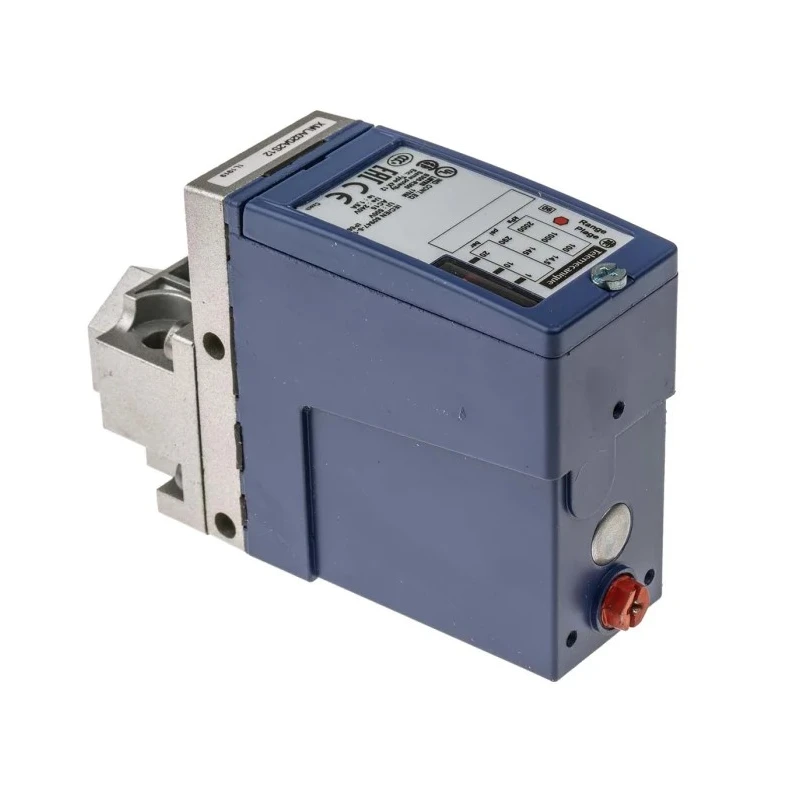

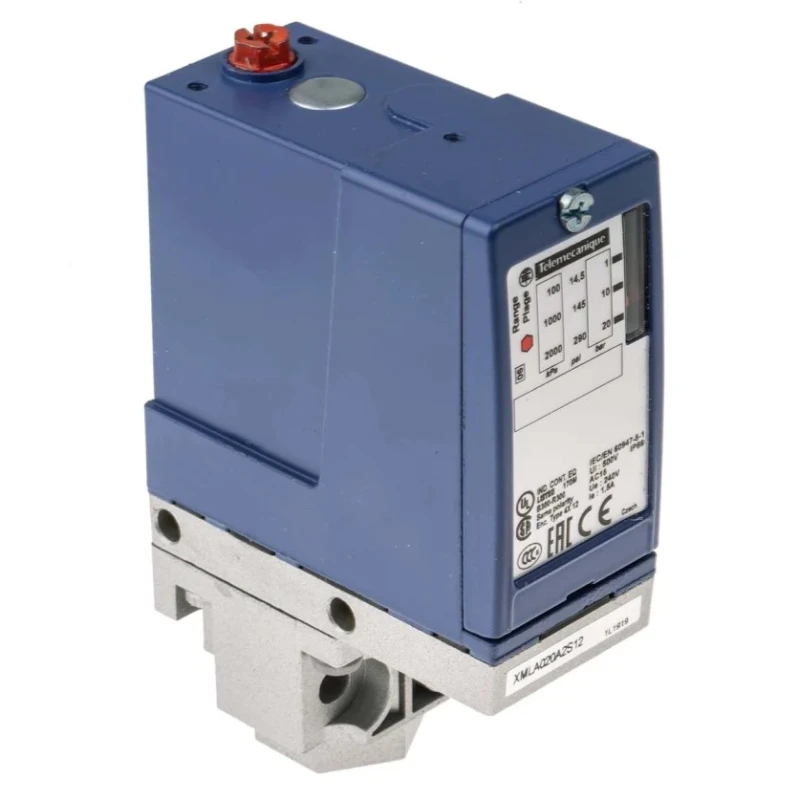

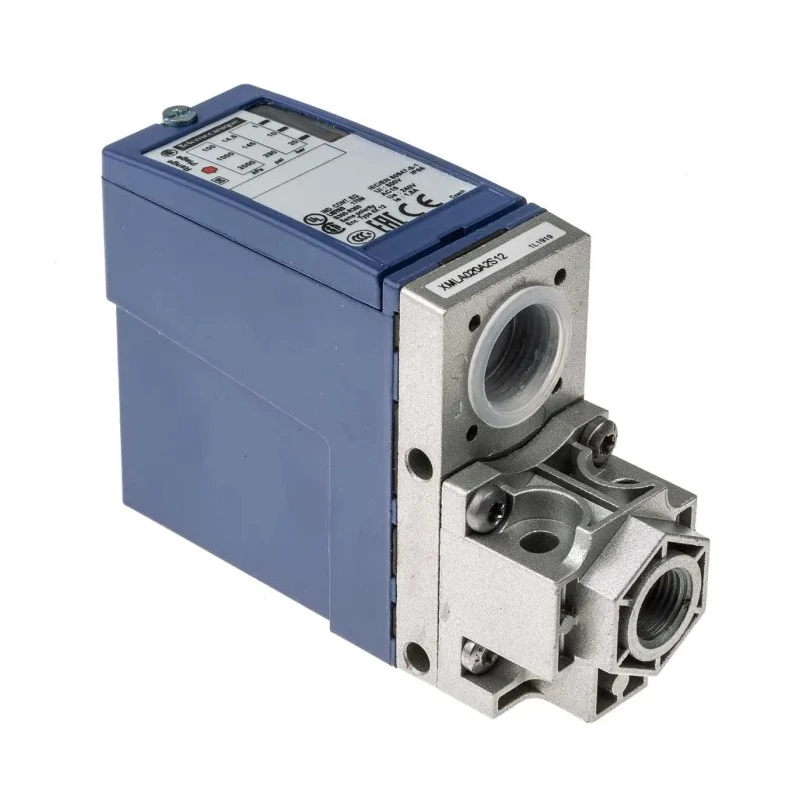

Telemecanique Sensors XMLA Series Pressure Sensor Relay Output 1 bar to 20 bar Differential Reading XMLA020A2S12
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Accuracy | 2 % |
| Brand | Telemecanique Sensors |
| Temperature range | - 25 to +70 °C |
| Model | XMLA020A2S12 |
| IP Rating | IP66 |
| Housing Material | Zinc Alloy |
| Output type | Relay |
| Series | XMLA |
| Maximum Operating Temperature | 70°C |
| Enclosure Rating | IP65 with plug-in connector, IP66 with terminal connections |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Maximum Pressure Measurement | 20bar |
| Minimum Pressure Measurement | 1bar |
| Maximum Supply Voltage | 240V ac |
| Minimum Supply Voltage | 120V |
| Pressure Reading Type | Differential |
| Media Measured | Air, Fresh Water, Hydraulic Fluid, Sea Water |
| Operating rate | up to 120 operations / min. for diaphragm and 60 / min. for piston |
| Media connection | 1/4" NPT |
| Conduit connection | 1/2" NPT |
Key Features
- Accurate pressure measurement with 2% accuracy.
- Relay output suitable for control circuits.
- Operates in temperature range from -25°C to 70°C.
- Housing made of durable zinc alloy with IP66 protection.
- Suitable for media including air, fresh water, hydraulic fluid, and sea water.
- Mounting with screw clamp terminals for secure electrical connection.
- Compliance with CE, CSA, EN/IEC, and UL standards guarantees quality and safety.
- Designed for industrial automation and control applications.
Product Description
Telemecanique Sensors XMLA020A2S12 is a robust pressure sensor from the XMLA Series designed for industrial and automation control applications requiring reliable differential pressure measurements.
This sensor accurately measures pressures from 1 bar to a maximum of 20 bar with an accuracy of 2%, making it suitable for various fluids including air, fresh water, hydraulic fluids, and sea water. It features relay output for straightforward integration into pressure control circuits.
Constructed with a zinc alloy housing, the sensor supports operating temperatures ranging from -25°C up to 70°C and offers high resistance to environmental factors with an IP66 protection rating. Electrical connection is provided via screw clamp terminals ensuring stable and secure attachment.
The pressure sensor incorporates a 1/4" NPT media connection and a 1/2" NPT conduit connection for easy installation. It operates efficiently within a supply voltage range of 120V to 240V AC and has an operating rate of up to 120 operations per minute for diaphragm and 60 per minute for piston types, supporting high-demand industrial environments.
Certified to comply with CE, CSA C22.2 No 14, EN/IEC 60947-5-1, and UL 508 standards, this sensor meets international quality and safety requirements. Its robust design makes it suitable for applications in electrical, automation, industrial, HVAC, and manufacturing sectors.
Accurate pressure measurement with 2% accuracy. Relay output suitable for control circuits. Temperature range from -25°C to 70°C for wide operating conditions. Housing material is durable zinc alloy with high corrosion resistance.
IP66 rating ensures protection against dust and water jets. Media compatible with air, fresh water, hydraulic fluid, and sea water. Standard electrical connections with screw clamp terminals. Certifications include CE, CSA, EN/IEC, and UL compliant.
This product is made in Czech Republic and is supplied new, ready for integration in critical pressure monitoring and control systems. EnvMart customers can explore more Telemecanique Sensors products and advanced Pressure Sensor solutions tailored for industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures pressures from 1 bar to a maximum of 20 bar.
The sensor has an accuracy of 2%.
It is compatible with air, fresh water, hydraulic fluid, and sea water.
It operates within a temperature range of -25°C to 70°C.
It features a relay output suitable for control circuits.
The sensor uses screw clamp terminals for secure electrical connections.
The housing has an IP66 rating, providing protection against dust and water jets.
It has a 1/4" NPT media connection and a 1/2" NPT conduit connection.
The maximum supply voltage is 240V AC.
It can operate at up to 120 operations per minute for diaphragm types and 60 operations per minute for piston types.
It complies with CE, CSA, EN/IEC, and UL standards.
It is made in the Czech Republic.
