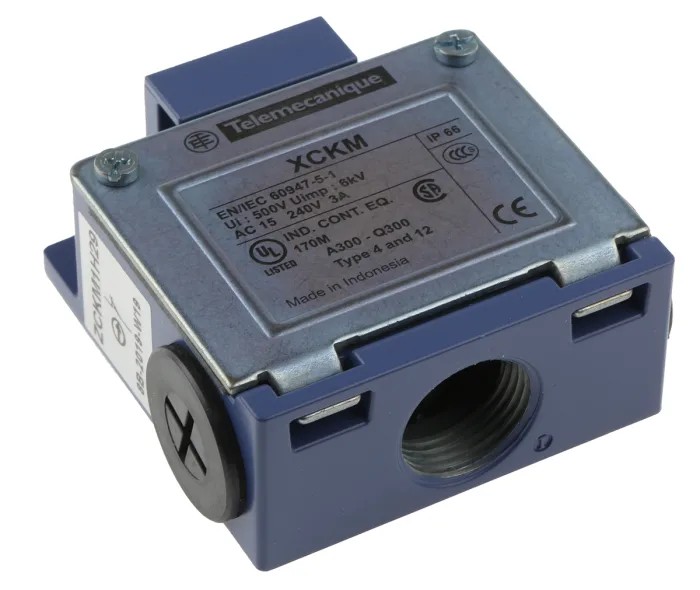

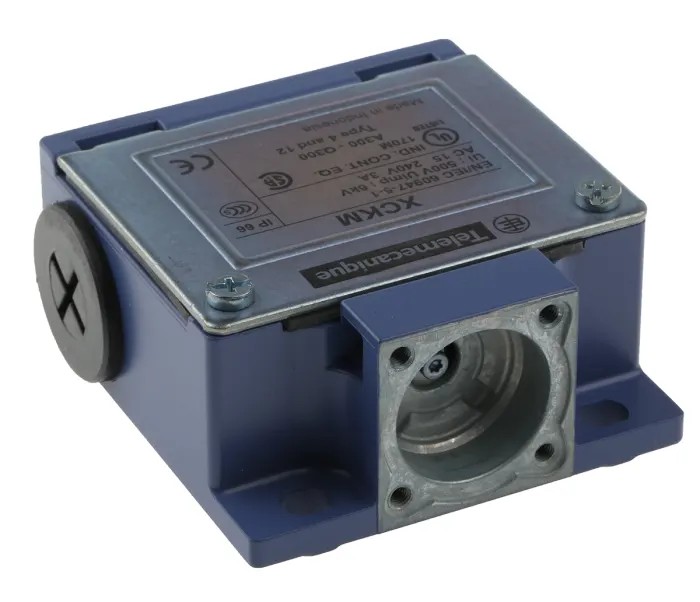

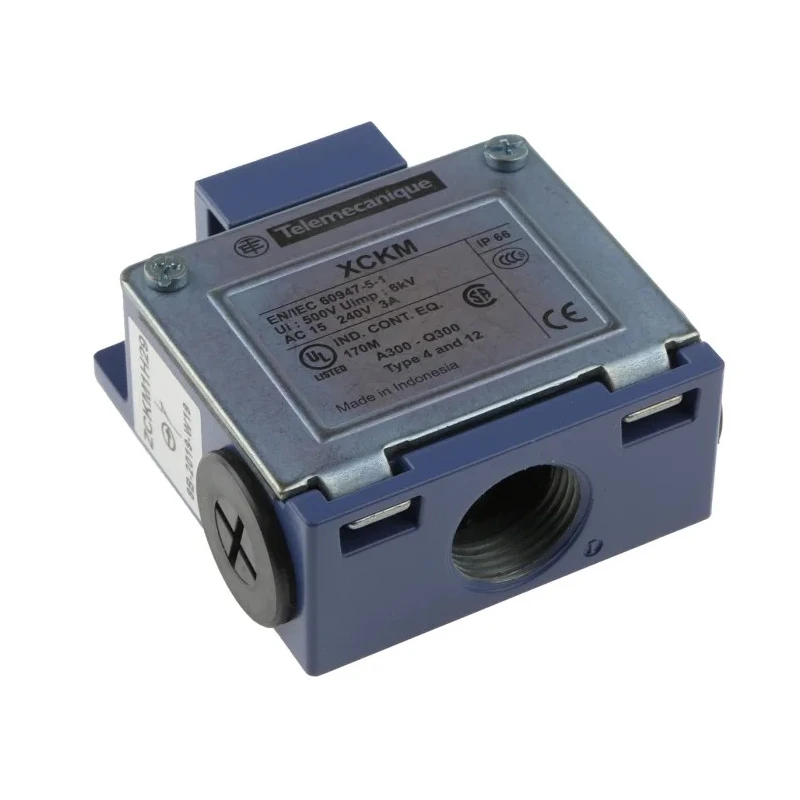

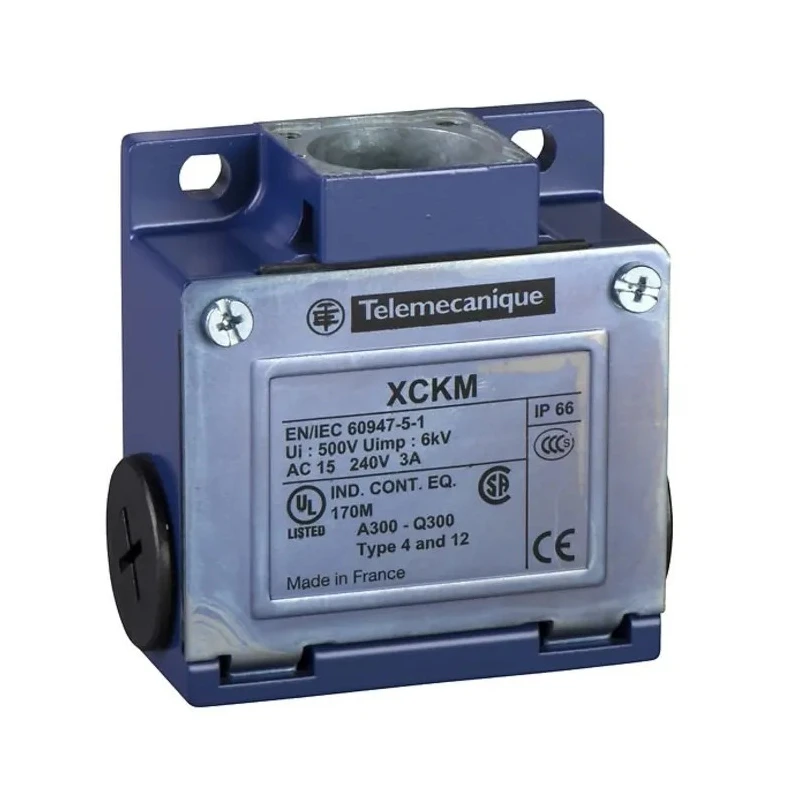

Telemecanique Sensors ZCKM Series Limit Switch Body, 1 NO/1 NC, IP66 Metal Housing, 240V AC, 3A
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Length | 64mm |
| Model | IP66 |
| Depth | 30mm |
| IP Rating | IP66 |
| Width | 64mm |
| Housing Material | Metal |
| Series | ZCKM |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 1 NO/1 NC |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3A |
| Terminal type | Screw Clamp |
| Standards/Approvals | EN, IEC, REACH, RoHS |
| Mechanical Life | 5000000Cycles |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Omron Lever Limit Switch, NO/NC, IP66, Metal Housing, 400V ac Max, 6A MaxBrand | Omron |
Key Features
- IP66 rated metal housing offers dust-tight and water-resistant protection.
- Supports switching currents up to 3A for AC supplies rated at 240V AC.
- Equipped with snap-action contacts for quick and dependable switching.
- Features screw clamp terminals for secure and maintenance-friendly wiring.
- Designed for mechanical endurance up to 5,000,000 cycles ensuring long operational life.
- Operates within a temperature range of -25°C to 70°C suitable for industrial environments.
- M20 conduit entry accepts standard metric cable glands for convenience.
- Suitable for position sensing, conveyor end-of-travel detection, safety interlocks, and retrofit uses.
Product Description
Telemecanique Sensors ZCKM1H29 is a robust Limit Switch Body designed for precise position control and industrial automation applications. Its metal housing with an IP66 rating ensures protection against dust ingress and powerful water jets, making it suitable for demanding environments.
With 1 Normally Open (NO) and 1 Normally Closed (NC) snap-action contact configuration, this limit switch body reliably performs quick switching operations under load. Rated for 240 volts AC and 3 amps switching current, it accommodates a range of control circuits.
The device is designed for long service intervals with a mechanical life rating of 5,000,000 cycles. Its operational temperature range spans from -25°C to 70°C, supporting stable performance under typical industrial ambient conditions.
Field wiring is facilitated by screw clamp terminals ensuring secure and easy electrical connections. The enclosure features an M20 conduit entry, accommodating standard metric cable glands for straightforward cable routing and installation.
This limit switch body complies with EN, IEC, RoHS, and REACH standards, although it does not carry hazardous-area certification, confirming its suitability for standard industrial environments. Common use cases include actuated valve position sensing, conveyor end-of-travel detection, control panel compact limit detection, safety interlocks in production machinery, and retrofitting existing mechanical switch assemblies.
IP66 metal enclosure provides dust and water protection. Snap-action contacts enable reliable and quick switching. 1 NO/1 NC contact setup suits diverse control circuit requirements. Screw clamp terminals allow easy and secure wiring.
Mechanical life rated for 5,000,000 operation cycles ensures durability. Wide operating temperature range from -25°C to 70°C. M20 conduit entry supports standard cable gland installations. Complies with EN, IEC, RoHS, and REACH standards.
The Telemecanique Sensors ZCKM1H29 limit switch body is a trusted component for automation, manufacturing, and control system applications within industrial, laboratory, construction, and water treatment sectors. Its resilient design and versatile contact layout make it an essential part for machine safety and position monitoring tasks.
Explore the extensive range of reliable Limit Switches and sensor products within the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This limit switch supports a maximum switching current of 3A for AC supplies rated at 240V AC.
It has an IP66 rating, providing dust-tight and water-resistant protection.
The mechanical life of this limit switch is rated for up to 5,000,000 cycles.
It operates within a temperature range of -25°C to 70°C, suitable for various industrial environments.
It features a contact configuration of 1 Normally Open (NO) and 1 Normally Closed (NC) with snap-action contacts.
This limit switch is equipped with screw clamp terminals for secure and maintenance-friendly wiring.
It has an M20 conduit entry, which accepts standard metric cable glands for installation.
It complies with EN, IEC, RoHS, and REACH standards.
The housing is made of metal, providing durability and protection in industrial settings.
It is suitable for position sensing, conveyor end-of-travel detection, safety interlocks, and retrofit uses.

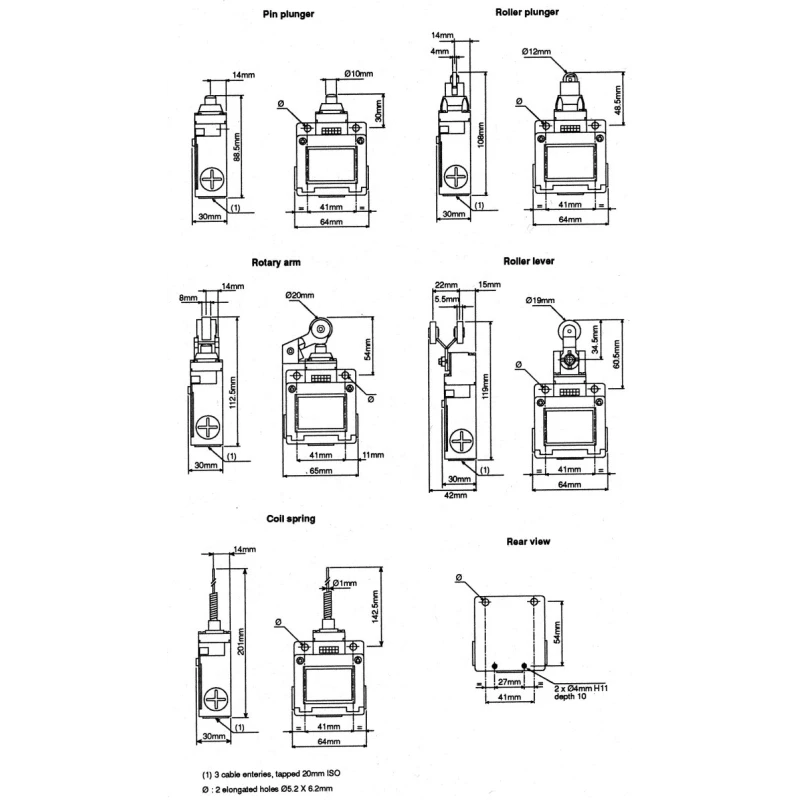

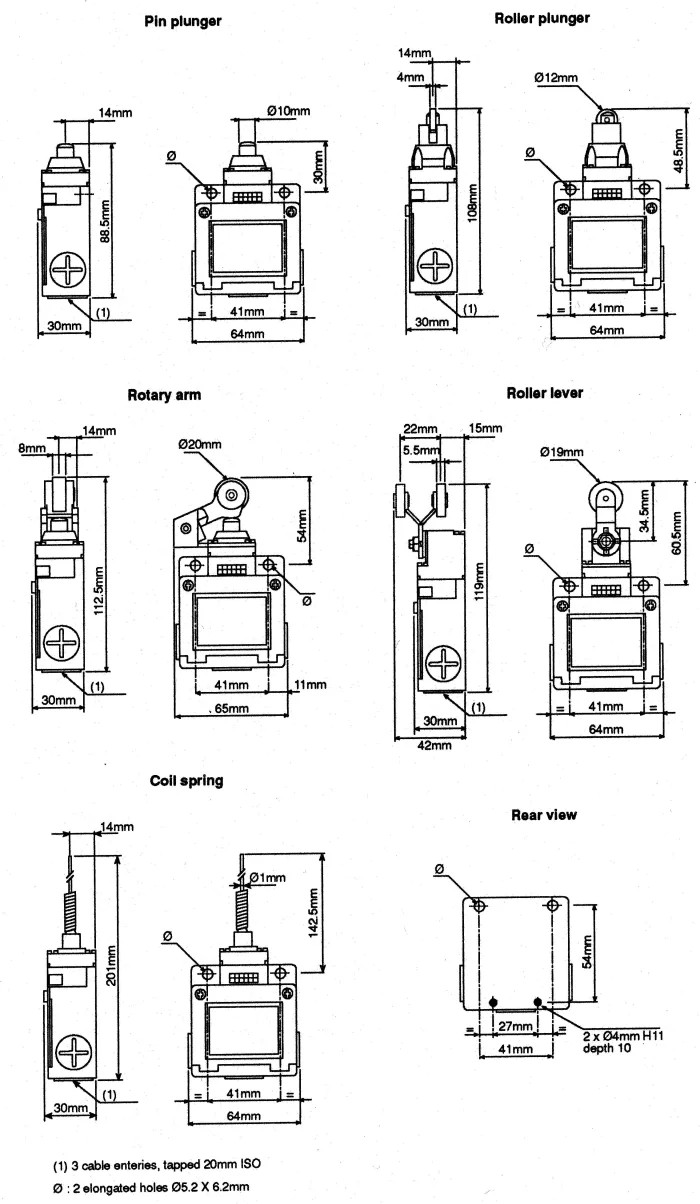

The dimensions are 64mm in length, 64mm in width, and 30mm in depth.
The switching DC voltage rating is 250V DC.
