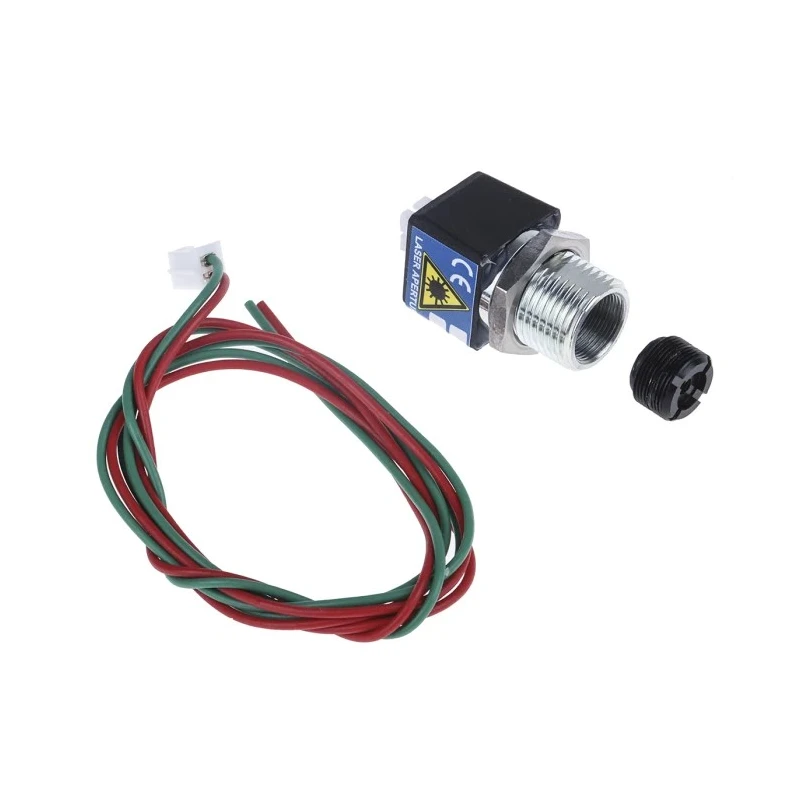

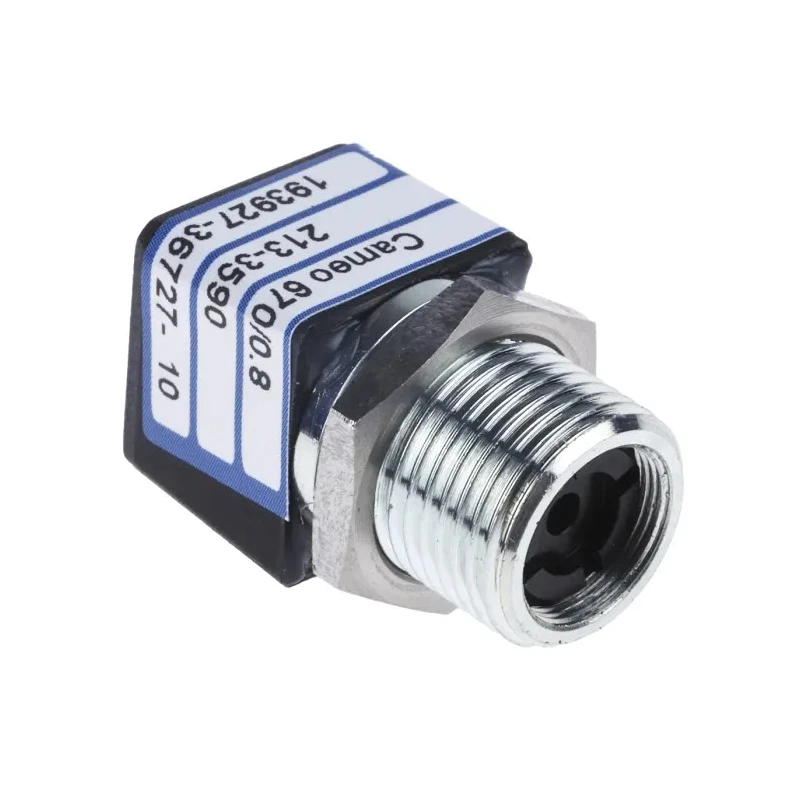

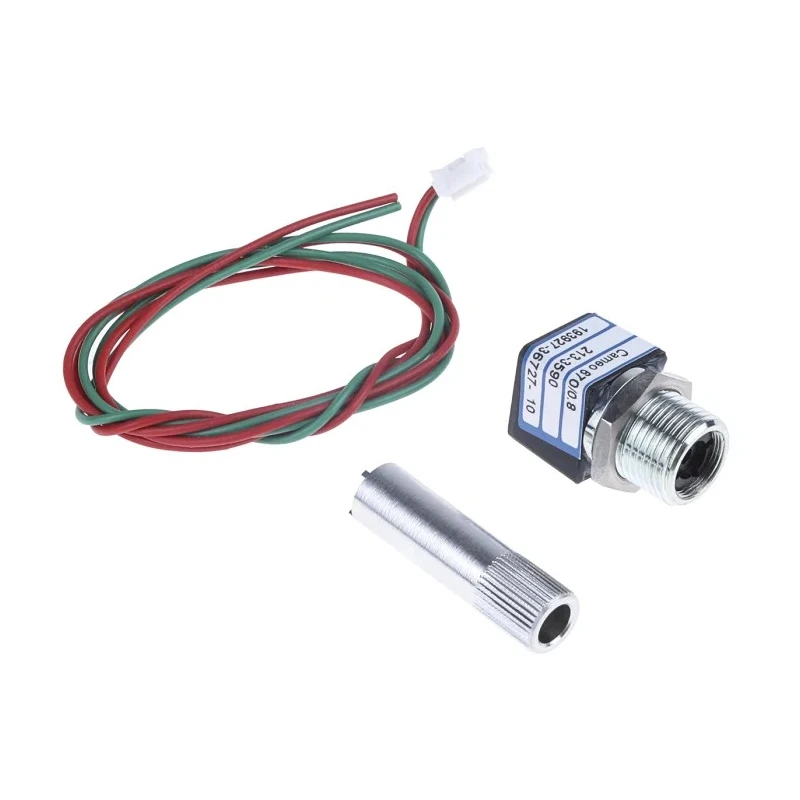

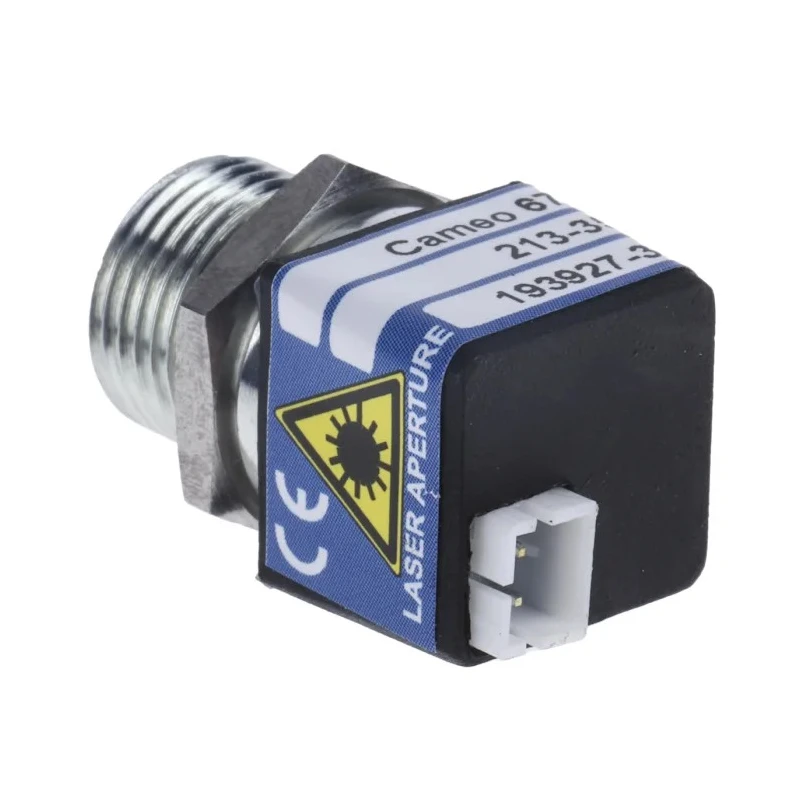

Global Laser Red Continuous Wave Laser Module 670 nm 0.8 mW Ellipse Pattern 5.5V 4.5V Cameo Series 1250-34-000

Global Laser 1250-34-000 is a precision red continuous wave laser module designed for industrial and electronic applications requiring stable and accurate laser emission. Operating at a wavelength of 670 nm, the module outputs 0.8 mW optical power with an elliptical emission pattern, ideal for tasks needing precise beam shape control.

This laser module features a robust isolated metal case with an M12 thread mount, measuring a compact 24 mm diameter by 14 mm length. Its design allows user-focusable operation with a spot size under 50 microns and a beam divergence less than 0.5 mRad, delivering excellent beam quality suitable for laboratory, construction, and manufacturing uses.

The device operates reliably within a voltage range of 4.5 to 5.5 V and supports continuous cool running to maintain performance stability. Its operating temperature range spans from -10°C up to 50°C, enabling use in diverse environmental conditions.

Connectivity is provided through a JST 2-way connector, facilitating integration into industrial systems. The module complies with the BS (EN) 60825 standard as a class 2 laser product, ensuring user safety if properly handled.

Operates with input voltage range of 4.5 V to 5.5 V for stable performance. Compact size measuring 24 x 14 x 14 mm suitable for industrial applications. Focusable laser spot size less than 50 microns for precision targeting.

Divergence of less than 0.5 mRad ensures beam quality and accuracy. Designed for continuous cool running with thread-mounted metal case. Operating temperature range from -10°C to 50°C for versatile environments. Equipped with JST 2-way connector for easy industrial integration.

Complies with BS (EN) 60825 safety standards for laser class 2 devices. This laser module is well suited for industrial automation, electronic instrumentation, laboratory setups, and optical equipment manufacturing. Explore more high-quality Laser Modules and optical components in the Electronics & Electricals category at EnvMart to find solutions tailored to your application needs.
