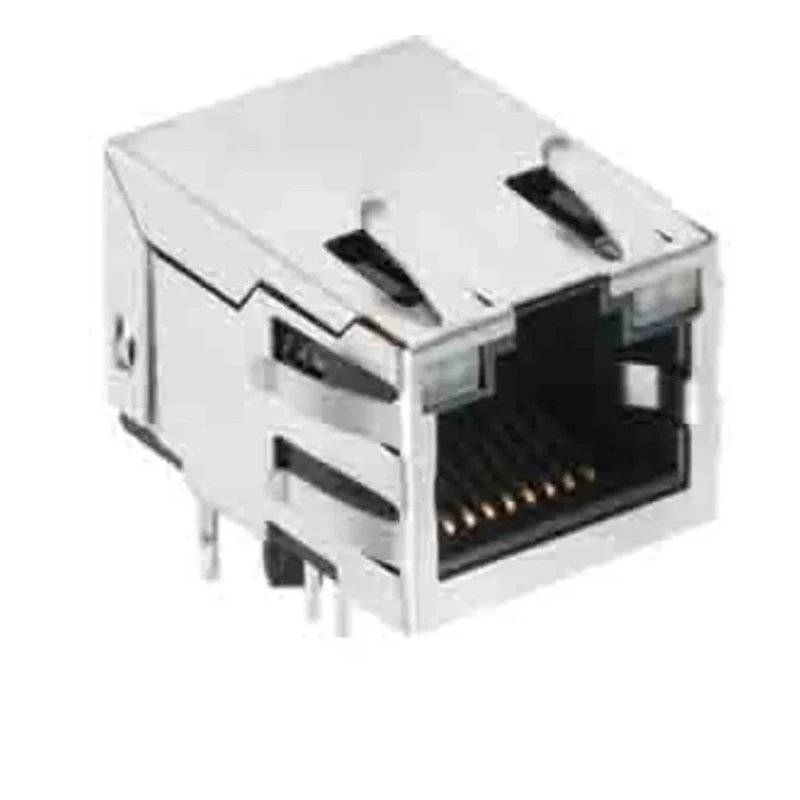

Wurth Elektronik Through Hole LAN Ethernet Transformer 1 Output, 350μH, 33.02mm, -40°C to 85°C 7499511420
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Depth | 33.02mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Inductance | 350μH |
| Standards/Approvals | RoHS |
| Insertion Loss | -1dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
Key Features
- The transformer supports through hole mount for secure PCB integration.
- Has an insertion loss rating of -1dB ensuring signal integrity.
- Constructed with thermoplastic material, brass shielding in black color.
- Compliant with RoHS environmental standards.
- Depth dimension of 33.02 mm for precise fitting in electronic designs.
- Manufactured in China following industry quality standards.
- Suitable for industrial and electronic component applications requiring LAN Ethernet transformers.
Product Description
Wurth Elektronik 7499511420 Through Hole LAN Ethernet Transformer is a high-quality transformer designed primarily for LAN and RJ45 Ethernet applications. It features a single output with an inductance of 350μH and a 1:1 turns ratio, ensuring balanced and reliable signal transfer with minimal distortion under an insertion loss of -1dB. Its through hole mounting style allows for stable and secure integration into printed circuit boards (PCBs).
The transformer is made using durable thermoplastic materials coupled with brass shielding, coated in black for both protection and aesthetic uniformity. Operating efficiently over a wide temperature range, from a minimum of -40°C to a maximum of 85°C, it supports challenging industrial environments and maintains performance reliability.
Compact in size with a depth of 33.02 mm, this component fits seamlessly within standard LAN transformer specifications. Certified to conform with RoHS directives, the product adheres to environmental safety standards and ensures compatibility across various electronic and industrial equipment needing ethernet signal conditioning.
The transformer supports through hole mount for PCB integration. Offers 1 output with precise inductance value of 350μH. Insertion loss rated at -1dB optimizing signal clarity. Durable thermoplastic body with brass shielding for superior protection.
Complies with RoHS environmental and safety standards. Designed to operate between -40°C to 85°C for versatility. Depth of 33.02 mm supports compact and efficient device design. Manufactured in China under stringent quality processes.
This transformer is ideal for use in electronic components, power supply systems, industrial automation, and networking equipment requiring robust and reliable LAN signal transformers. It integrates well within power & connectors assemblies and meets industry demands for performance and durability.
Explore more transformers and related LAN Ethernet components to complement your electrical system requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this transformer is 350μH, ensuring effective signal transfer for LAN applications.
The insertion loss rating for this model is -1dB, which helps maintain signal integrity during transmission.
It operates efficiently within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
This transformer supports through hole mounting, allowing for secure integration into printed circuit boards (PCBs).
The depth dimension of this transformer is 33.02 mm, facilitating compact design in electronic applications.
This model has a single output, designed for efficient signal conditioning in LAN applications.
It is constructed from durable thermoplastic materials and features brass shielding, providing protection and aesthetic uniformity.
Yes, it complies with RoHS environmental standards, ensuring safety and compatibility with various electronic applications.
The turns ratio for this transformer is 1:1, which supports balanced signal transfer.
This transformer is manufactured in China, adhering to industry quality standards.
It is suitable for use in electronic components, power supply systems, industrial automation, and networking equipment requiring LAN signal conditioning.
The -1dB insertion loss rating indicates minimal signal distortion, optimizing clarity in data transmission for LAN applications.
