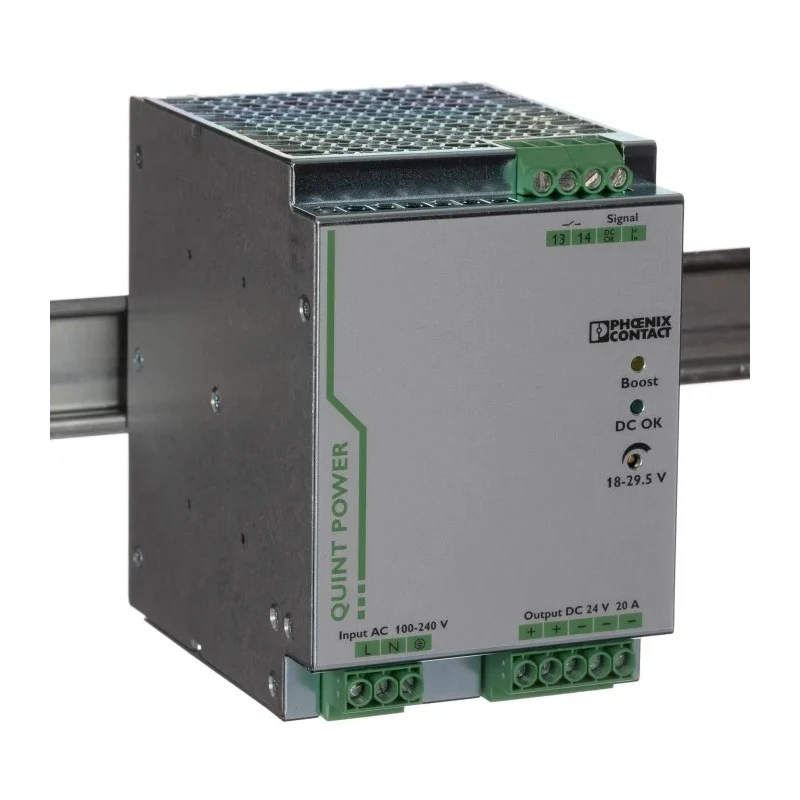

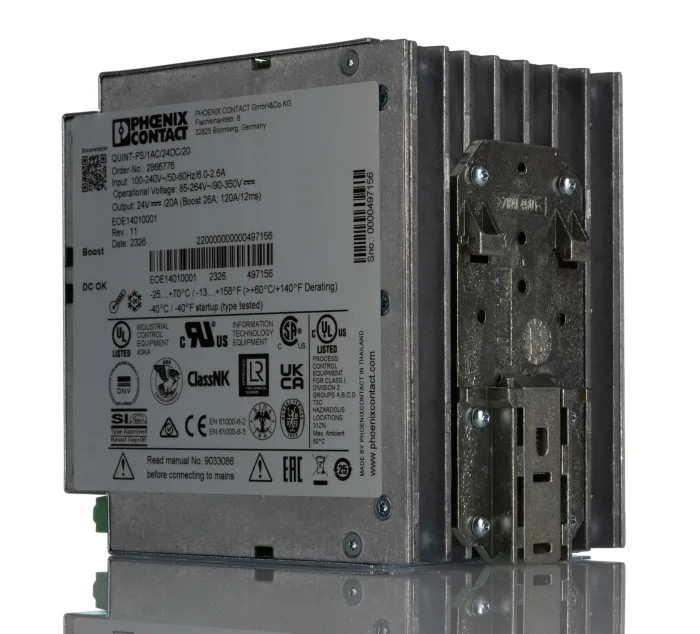

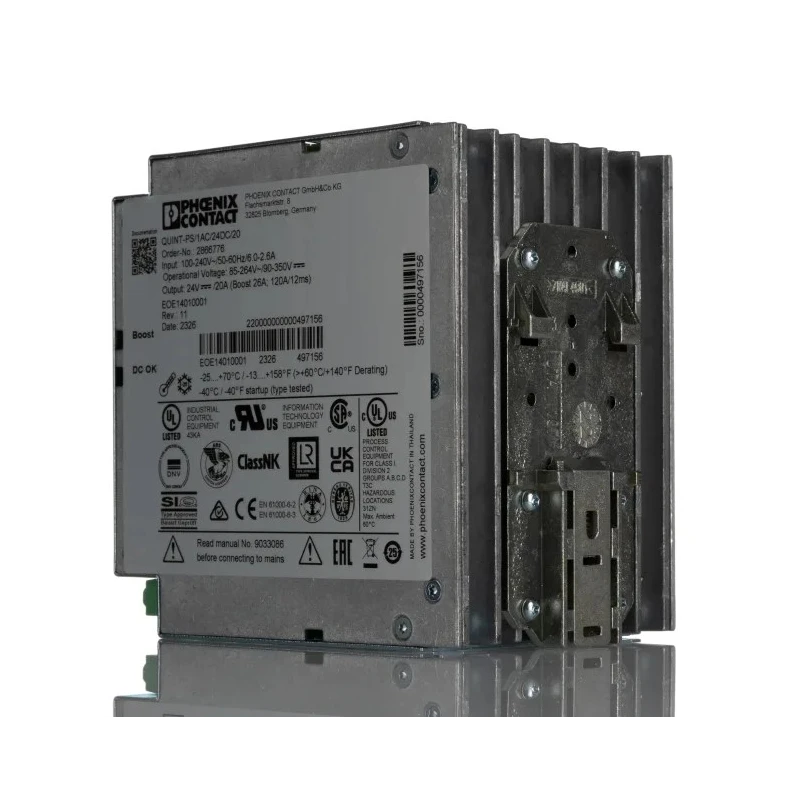

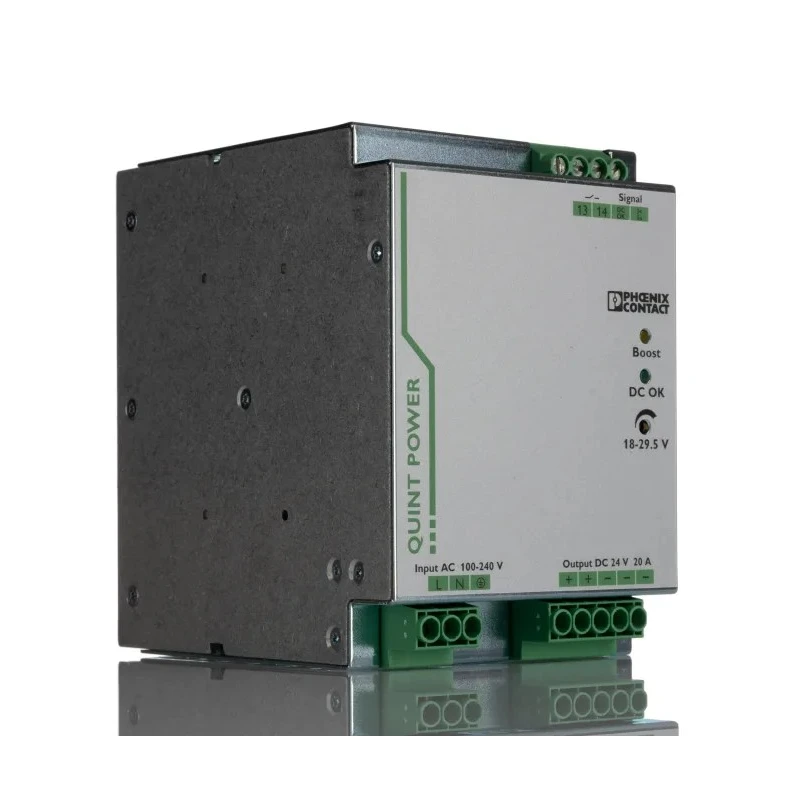

Phoenix Contact QUINT POWER Switched Mode DIN Rail Power Supply 264V AC Input 29.5V DC, 20A Output, 480W 2866776
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Phoenix Contact |
| Power | 480W |
| Efficiency | 93% |
| Height | 130mm |
| Model | 2866776 |
| Depth | 130mm |
| IP Rating | IP20 |
| Width | 90mm |
| Series | QUINT POWER |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 29.5V dc |
| Minimum Input Voltage | 85V ac |
Key Features
- Equipped with near field communication (NFC) for quick configuration via computer or mobile device.
- Selective fuse-breaking technology enables selective fault location and system reliability.
- Robust protection against dust, corrosive gases, humidity, and electrochemical migration.
- Designed for DIN rail mounting with secure screw connectors for cable connections.
- High efficiency of 93% reduces energy losses and heat generation.
- Wide operating temperature range from -25°C to 70°C suitable for harsh environments.
- Adjustable voltage range from minimum 18V DC to maximum 29.5V DC output.
- Provides static power reserve for reliable start-up of difficult loads.
Product Description
Phoenix Contact 2866776 QUINT POWER is a high-performance switched mode DIN rail power supply that accepts a 264V AC input and delivers up to 29.5V DC output at 20A, with a power rating of 480W. This power supply is designed specifically to maximize plant availability and operational reliability in demanding industrial settings such as automotive and shipbuilding industries.
Featuring near field communication (NFC) technology, the unit can be configured quickly and conveniently using a computer or mobile smart device. It incorporates selective fuse-breaking technology which allows the supply to isolate faulty current paths without affecting the rest of the system, reducing downtime and protecting sensitive equipment from electrical surges.
The robust enclosure provides protection against dust, corrosive gases, and moisture ingress, as well as failures caused by corrosion-related creepage currents and electrochemical migration, contributing to exceptional durability and safety. This device is designed for DIN rail mounting and uses screw connectors, facilitating easy and secure cable connections.
The power supply offers a wide operating temperature range from -25°C to 70°C and achieves an efficiency of 93%, helping to reduce energy waste. It also features a static power reserve to reliably start difficult loads and an adjustable output voltage range from 18V DC to 29.5V DC, providing flexibility for various application needs.
With an extended service life of over 500,000 hours, this power supply is engineered for longevity and continuous operation in industrial environments. The product is compliant with multiple standards and approvals including EN 61000-4-6, EN 61000-4-2, EN 61000-4-4, and EN 61000-6-3.
Equipped with NFC for rapid configuration. Selective fuse-breaking to minimize downtime. Durable protection against environmental factors. DIN rail mounting with secure screw connectors. High efficiency rating of 93%. Wide operating temperature capability.
Adjustable output voltage range. Static power reserve for safe start-up. Extended operating life exceeding 500,000 hours.
This Phoenix Contact QUINT POWER DIN rail power supply is ideal for industrial, manufacturing, automotive, shipbuilding, and other demanding use cases requiring reliable and configurable power solutions. Explore our extensive range in the Power Supplies category at EnvMart.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power supply delivers an output power of 480W.
It has an efficiency rating of 93%, which helps reduce energy losses and heat generation.
The maximum output voltage is 29.5V DC.
The power supply accepts an input voltage range from 85V AC to a maximum of 264V AC.
The dimensions are 130mm in height, 130mm in depth, and 90mm in width.
It operates within a temperature range of -25°C to 70°C.
This model has one output.
It is designed for DIN rail mounting with secure screw connectors for cable connections.
It is equipped with near field communication (NFC) technology for quick configuration via computer or mobile device.
It provides robust protection against dust, corrosive gases, humidity, and electrochemical migration.
The expected service life exceeds 500,000 hours, making it suitable for continuous operation.
It complies with multiple standards including EN 61000-4-6, EN 61000-4-2, EN 61000-4-4, and EN 61000-6-3.
