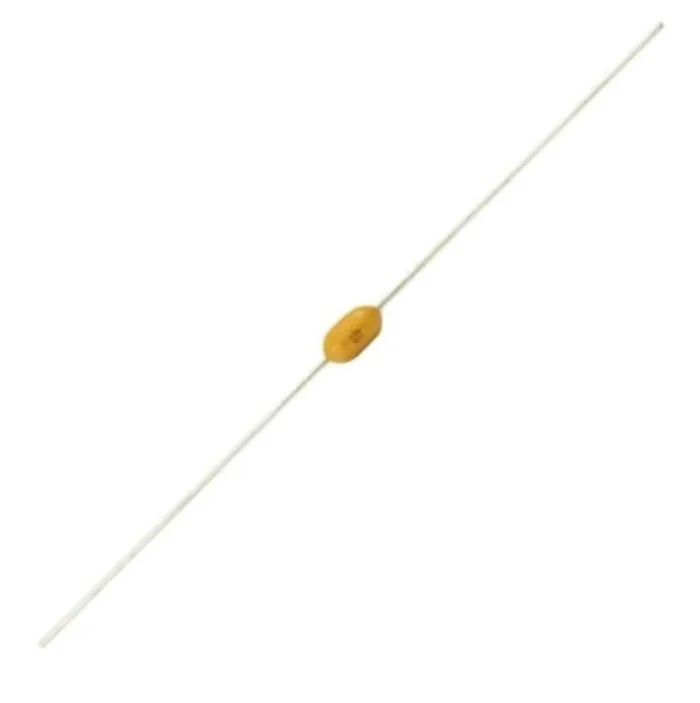

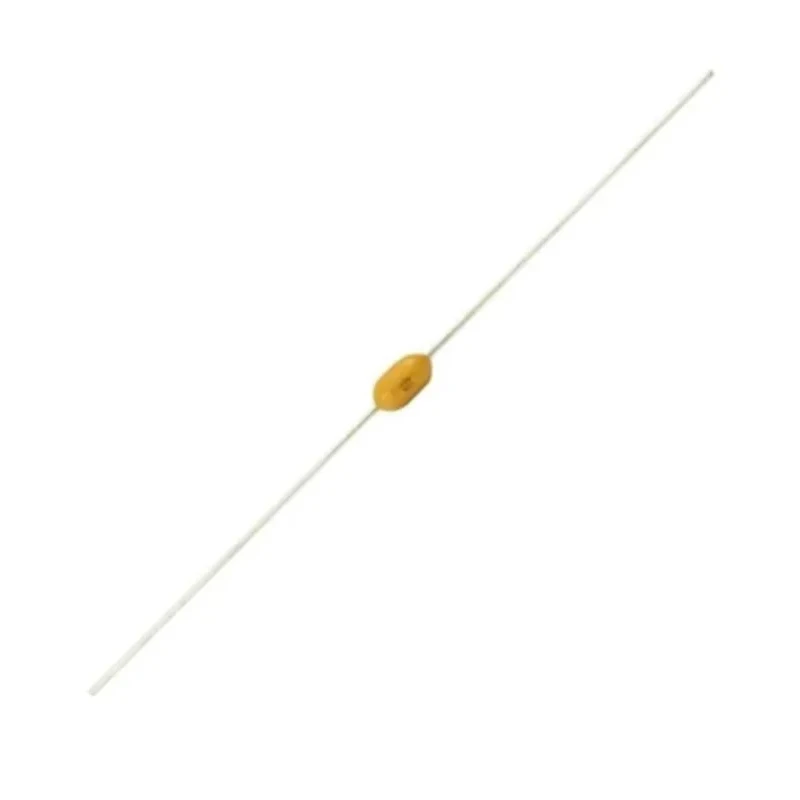

Vishay 22 nF X7R 50V dc Through Hole Axial Multilayer Ceramic Capacitor A223K15X7RF5UAAP
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V dc |
| Brand | Vishay |
| Length | 52.4mm |
| Model | A223K15X7RF5UAAP |
| Packaging | Ammo Pack |
| Width | 2.6mm |
| Mount Type | Through Hole |
| Series | A...P |
| Termination Type | Axial |
| Maximum Operating Temperature | 160°C |
| Tolerance | 10 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | IEC, EIA, RoHS, UL, EN |
| Lead Diameter | 0.5mm |
| Dielectric | X7R |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class II |
Key Features
- Capacitance of 22 nanofarads with ±10% tolerance ensures precision.
- Temperature range from -55°C to +160°C suitable for harsh environments.
- Axial lead mounting for through-hole PCB assembly.
- Compliant with AEC-Q200 automotive quality standards.
- Constructed with flame-retardant yellow epoxy resin for safety.
- Small physical dimensions with length 52.4mm and width 2.6mm.
- RoHS, IEC, EIA, UL, and EN compliant for global standards.
- Lead diameter of 0.5mm copper clad steel wire provides strong solderability.
Product Description
Vishay A223K15X7RF5UAAP is a high reliability 22 nF multilayer ceramic capacitor featuring X7R dielectric construction with 50V DC voltage rating and 10% tolerance. This axial leaded capacitor is engineered for demanding automotive and industrial environments with operating temperatures from -55°C to 160°C.
Constructed with a flame retardant yellow epoxy resin coating and using 100% tinned copper clad steel wire leads, it ensures robust mechanical and electrical performance in through-hole PCB mounting applications. The 52.4mm length and 2.6mm width form factor suits compact PCB designs.
This capacitor meets automotive quality standard AEC-Q200 and carries certifications to IEC, EIA, RoHS, UL, and EN standards, ensuring compliance with safety and reliability requirements. Such capacitors are widely used in power electronics, automotive control units, and industrial devices requiring stable capacitance under wide temperature fluctuations.
The Vishay A...P series provides PPAP availability and high reliability testing for production readiness in automotive market segments. It is supplied in Ammo Pack packaging for efficient handling and automated assembly.
Capacitance: 22 nF, ±10 % tolerance. Voltage: 50V DC maximum rating. Operating temperature: -55°C to 160°C. Axial lead type with 0.5 mm diameter leads. Flame retardant yellow epoxy resin coating. Compliance with AEC-Q200 automotive standards.
RoHS and IEC, EIA, UL, EN approvals. Length 52.4 mm and width 2.6 mm.
This Vishay multilayer ceramic capacitor is ideal for automotive circuit designers and electronics manufacturers seeking high stability and robust component performance under challenging environmental conditions. Explore more quality capacitors from Vishay and related electronics at EnvMart for industrial, automotive, and commercial applications.
Explore more products in our Multilayer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 22 nanofarads with a tolerance of ±10%.
It has a maximum voltage rating of 50V DC.
The operating temperature range for this unit is from -55°C to 160°C.
This capacitor has a length of 52.4mm and a width of 2.6mm.
It is designed for through-hole mounting.
The lead diameter is 0.5mm, made from copper clad steel wire.
Yes, it complies with the AEC-Q200 automotive quality standards.
It features an X7R dielectric construction.
This model is compliant with RoHS, IEC, EIA, UL, and EN standards.
It is supplied in Ammo Pack packaging for efficient handling and automated assembly.
It is widely used in power electronics, automotive control units, and industrial devices requiring stable capacitance under temperature fluctuations.
This capacitor belongs to the A...P series.
