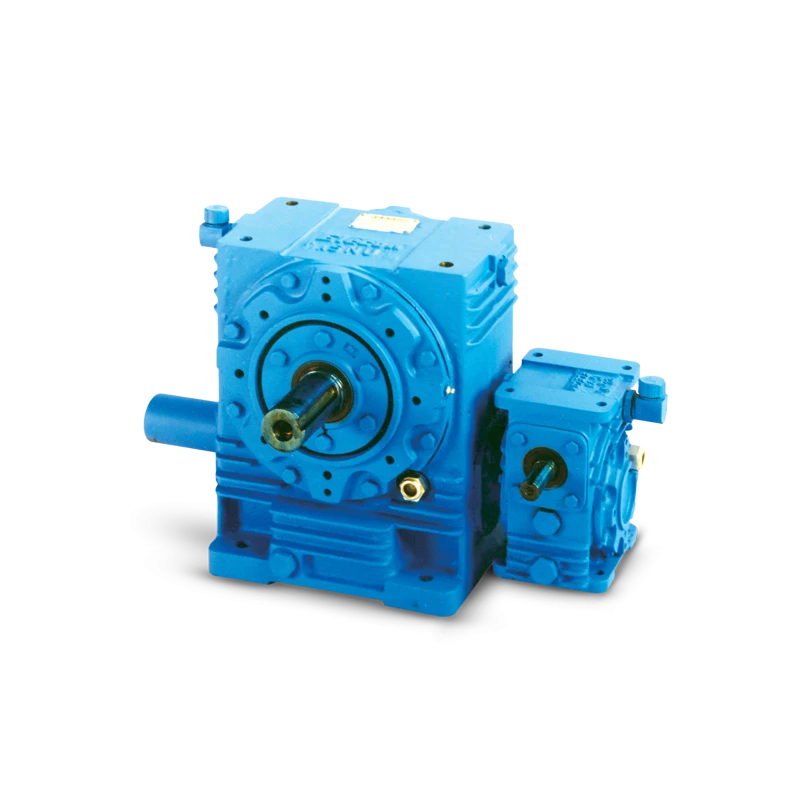

Double Reduction Worm Gearbox 50 Kw
Specifications
| Size | 1/30| 2 /40| 2 /50| 3/60| 3/70| 4/80| 4/90| 5/105 | 5/120 | 6/140 | 7/170 |
|---|---|
| Ratio | Min. 75 1 to Max 4900 1 |
| Power Capacity | 50 kW |
| Overdriven | SNU-OD / SFOD |
| Hollow output shaft | SNU-SMD /SSMD |
| Verticle output shaft | SNU-VD / SFVD ( UP/down ) |
| Under driven | SNU-UD / SFUD |
Key Features
- Bulk Quantities Available
Product Description
DOUBLE REDUCTION GEARDouble Reduction Worm Gear Units are constructed using two single reduction worm gear units. The primary worm gear unit is specially designed to mount integrally on a standard single worm gear unit which forms the second stage. The complete gear unit becomes compact and rigid in arrangement for slow-moving machinery. A wide range of ratios from 75:1 to 4900:1 is available. These gear units are particularly suitable for high torque slow-speed drives. Worm gearing conforms to BS-721.ApplicationConveyors, Raw Mill, Coal Mill, Nodulizer, Apron Conveyors, Elevator Drives, Separator Drive, Bulk Materials Handling, Classifier, Conveyor Drive, Bucket, Cane Carrier, Cane Shredders, Pressure Feeders, Diffuser, Crystallizer, Rake Elevator / Elevator, Feeder Table, Cane Chopper, Belt Conveyors, Screw Conveyors, Bucket Elevator, Cooling Tower, Air Preheater, Slurry Pump, Agitator, Mixer, Mixer Drive, Calander Drive, Extruder Drive, Vertical Extruder Drive,IndustriesCement Industry, Sugar Industry, Steel Industry, Power Industry, Plastic
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power capacity of this double reduction worm gearbox is 50 kW.
It features hollow output shafts (SNU-SMD / SSMD) and vertical output shafts (SNU-VD / SFVD) for up/down applications.
The gearbox is available in various sizes including 1/30, 2/40, 2/50, 3/60, 3/70, 4/80, 4/90, 5/105, 5/120, 6/140, and 7/170.
It is constructed using two single reduction worm gear units, with the primary unit designed to mount integrally on the secondary unit, resulting in a compact and rigid arrangement.
Common industries using this gearbox include the cement industry, sugar industry, steel industry, power industry, and plastic industry.
The double reduction feature allows for high torque slow-speed drives, making it suitable for heavy-duty applications.
This model supports various mounting options including under driven (SNU-UD / SFUD) and overdriven (SNU-OD / SFOD) configurations.
Yes, it is particularly designed for high torque applications in slow-speed drives.
The worm gearing conforms to BS-721 standards.
Installation requirements are not specified, but it is designed for integration into various machinery setups typical in heavy-duty applications.
