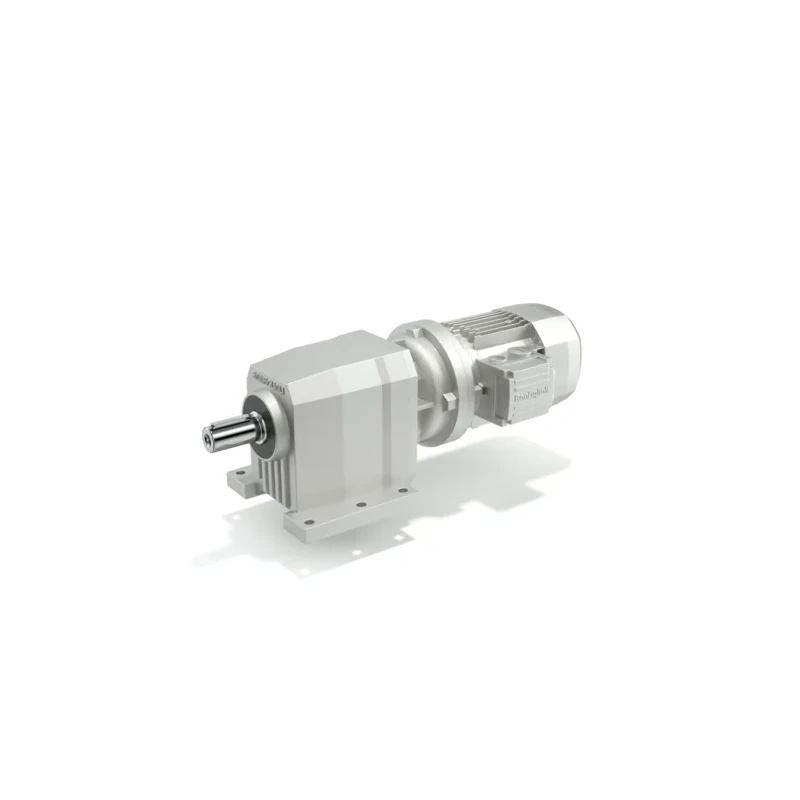

C Series lnline Gearboxes & Geared Motors

The C Series is designed for the requirements of standard tasks in the industrial environment. These series achieve first-rate reliability, efficiency, robustness, and a wide output torque range. The extremely wide range of gear ratios, achieved through 2-, 3- or 4-stage versions, allows the customer to adapt the C Series to every application and to find the perfect match for output speed requirements. The C Series can be completed with a wide range of electric motors entirely manufactured by Bonfiglioli. Asynchronous motors both IEC and compact (BN-BE-BX/M-ME-MX), servomotors (BMD), and reluctance motors (BSR) can be coupled with the C Series.Motors Input with solid shaft Input with e-motor coupling:- M, ME, MX (compactasynchronous)- BMD (servo permanent magnet)- BSR (IEC reluctance)- BN, BE, BX (IEC asynchronous)- BS (IEC single phase)Motor optionsThermistors and thermostat sensorsIndependent forced coolingIncremental, sin/cos absolute single/multi-turn encodersTropicalizationAnti-condensation heatersBackstopMain optionsSurface protection up to C5Double oil sealsFluor Elastomer SealsReduced BacklashKey benefitsCost-effective solutionMinimized mounting spaceEasy maintenanceOperation in a high-temperature environmentHigh resistance to external hitsPure coaxial torque transmission

• Wide ratio range (4 stages)
• Atex- gearbox for explosive environments 2G/2D
