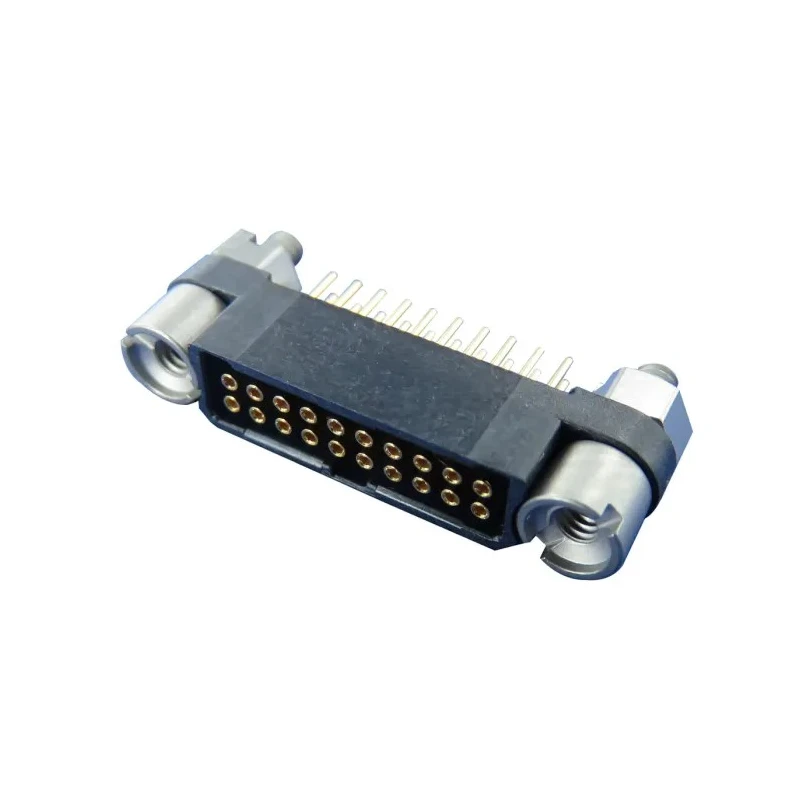

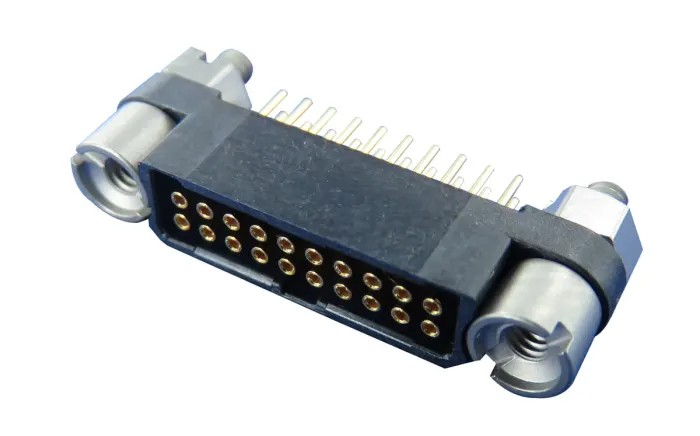

Amphenol Socapex MHDAS Series Straight PCB Socket 20-Contact 2 Row 1.27 mm Pitch Solder MHDAS2F020YDE50

Amphenol Socapex MHDAS2F020YDE50 is a high-performance PCB Socket designed for micro HDAS board-to-board and board-to-wire connections. This straight orientation connector features 20 female contacts arranged in two rows with a 1.27 mm pitch, providing a compact solution to save space while maintaining robust electrical performance.

The housing is made of liquid crystal polymer, offering excellent durability and heat resistance, enabling operation from -65°C up to 260°C. Copper alloy contacts plated with gold enhance conductivity and prevent corrosion, making this socket suitable for demanding industrial environments.

This PCB socket supports a voltage rating of 750 V and is intended for PCB mount applications, ensuring secure and reliable connections in electronic equipment.

Typical applications include use in industrial machinery, laboratory instrumentation, and high-reliability power and control systems where space optimization and connector performance are critical.

The MHDAS series is engineered for versatility, supporting contact arrangements from 4 to 60 pins, though this model specifically offers 20 contacts. No specific standards or approvals are cited, and the product is manufactured in France.

Designed as a female micro HDAS for board-to-board and board-to-wire connections. Operates reliably between -65°C to 260°C operating temperature range. Constructed with liquid crystal polymer housing for durability and high performance.

Features gold plated copper alloy contacts for corrosion resistance and efficient conductivity. Rated for 750 V operating voltage with board mounting type designed for PCBs. Compact design facilitates space-saving applications on circuit boards.

Suitable for high-reliability industrial and electronic equipment use. Manufactured in France with no specific certifications listed.

For reliable, space-saving micro HDAS PCB sockets, the Amphenol Socapex MHDAS2F020YDE50 offers a robust solution. Explore our PCB Socket category for compatible connectivity solutions and other Amphenol Socapex components.
