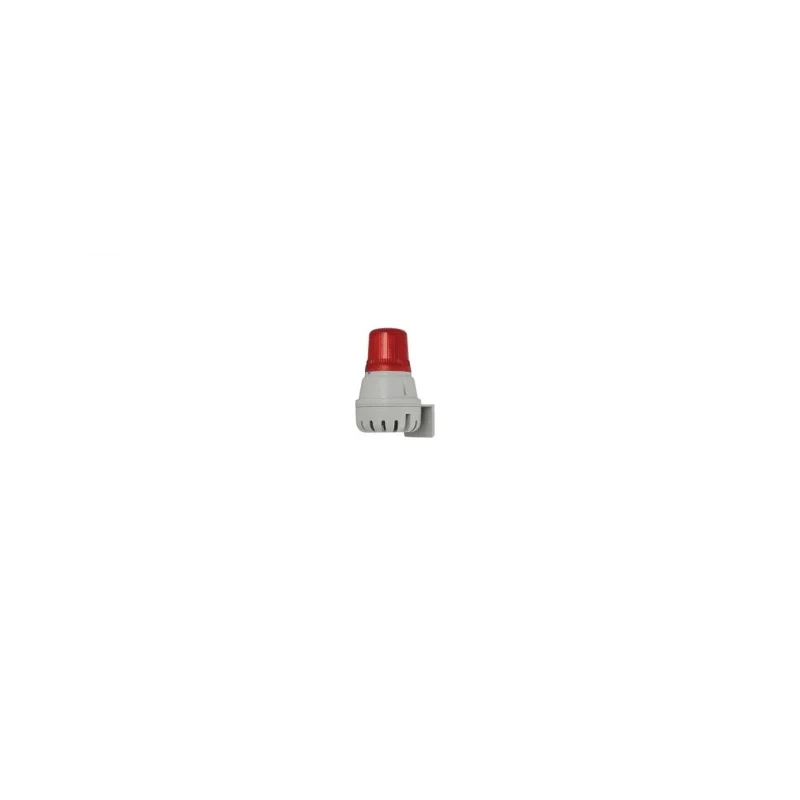

e2s H100 Series Red Horn-Beacon Combination 24V DC 100 dB Surface Mount IP65

Free Delivery in India | Lowest Global Shipping Charges

e2s H100 Series Red Horn-Beacon Combination 24V DC 100 dB Surface Mount IP65



Category Sounder Beacons Brand E2S Condition New

Specifications

Country of Origin	United Kingdom
Brand	e2s
Model	IP65
IP Rating	IP65
Mount Type	Surface
Housing Material	ABS
Bulb Type	Xenon
Series	H100
Maximum Operating Temperature	50°C
Current Type	DC
Current consumption	24mA
Minimum Operating Temperature	-25°C
Lens Colour	Red
Standards/Approvals	RoHS, POCC GB-JB05-H00144, EAC, CE
Maximum Supply Voltage	24V
Housing Colour	Red
Light Effect	Flashing
Sounder Type	Buzzer
Sound Level at 1m	100dB
Maximum Sound Level	100dB
Number of Tones	3
GOST-R approved	POCC GB-JB05-H00144

Key Features

The unit features a horn horn, xenon strobe beacon, and buzzer sounder type.
Operates at 24 volts DC with a current consumption of 24 mA.
Built with ABS red housing providing IP65 rated protection for surface mounting.
Offers three distinct tones including buzzer and two additional alarm sounds.
Designed for operation temperatures ranging from -25°C up to 50°C.
100 dB sound level at 1 meter ensures clear audible warning signals.
Includes stainless steel fixings, bayonet fixing lens, and anti-tamper locking screw for secure installation.
Complies with RoHS, CE, EAC, and GOST-R certifications for safety and quality.

Product Description

The e2s H100TX24G/R Red Horn-Beacon Combination is a compact, high-output safety signal device designed for industrial automation and control signalling applications. Operating at 24 volts DC, this surface mount unit delivers a powerful 100 dB buzzer sound at 1 meter combined with a flashing red xenon beacon, making it ideal for emergency warning and hazard indication.

Constructed with a robust ABS housing colored red, this device is rated IP65 ensuring protection against dust and water ingress suitable for harsh industrial environments. The horn and strobe beacon combination provides multi-tone alarm functionality featuring three sound options including a buzzer and two additional alarm tones to enhance safety communication.

With operating temperature range from -25°C to 50°C, the H100TX24G/R maintains reliable performance in varied ambient conditions. The unit includes stainless steel fixings, bayonet lens for easy assembly, and an anti-tamper locking screw to prevent unauthorized access enhancing security and durability.

This product complies with international safety and quality standards such as RoHS, CE, EAC, and the GOST-R Russian certification (POCC GB-JB05-H00144), ensuring adherence to regulatory requirements in global industrial settings.

Widely used in industrial automation systems, manufacturing plants, and HVAC installations, the e2s H100 Series combination horn and beacon effectively signals hazards and alerts personnel. Its surface mount design allows for easy installation on panels, machines, and walls.

The unit features a horn horn, xenon strobe beacon, and buzzer sounder type. Operates at 24 volts DC with a current consumption of 24 mA. Built with ABS red housing providing IP65 rated protection for surface mounting. Offers three distinct tones including buzzer and two additional alarm sounds.

Designed for operation temperatures ranging from -25°C up to 50°C. 100 dB sound level at 1 meter ensures clear audible warning signals. Includes stainless steel fixings, bayonet fixing lens, and anti-tamper locking screw for secure installation.

Complies with RoHS, CE, EAC, and GOST-R certifications for safety and quality. Explore more e2s automation signalling products and Sounder Beacons on EnvMart for reliable industrial safety solutions.
