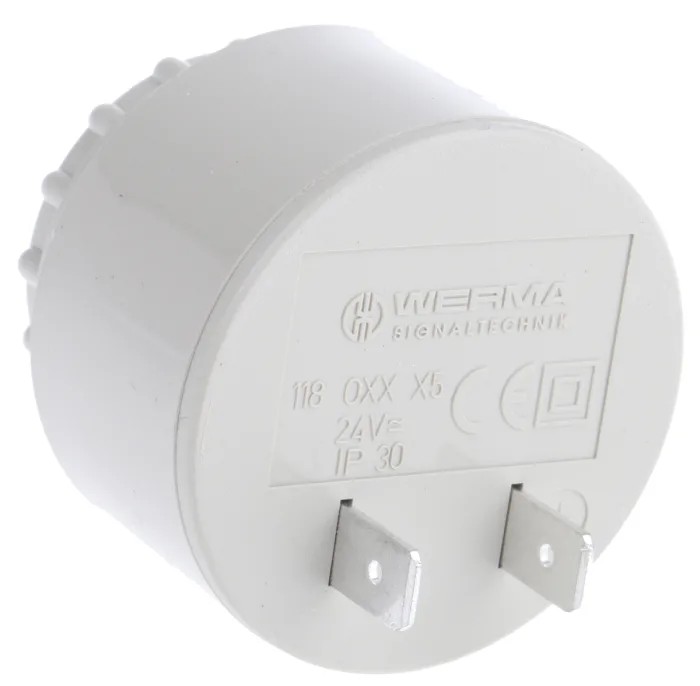

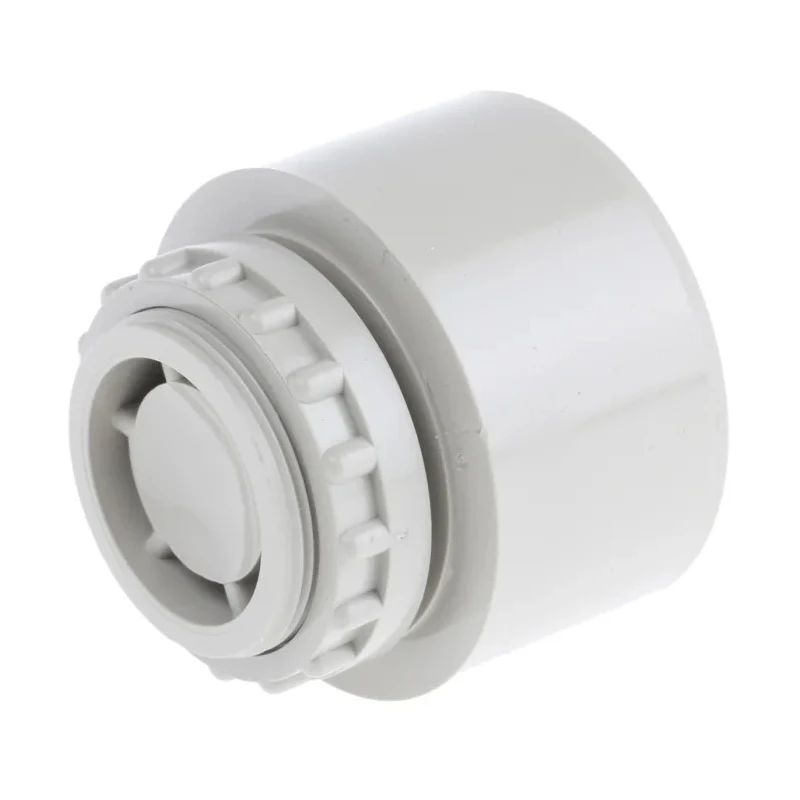

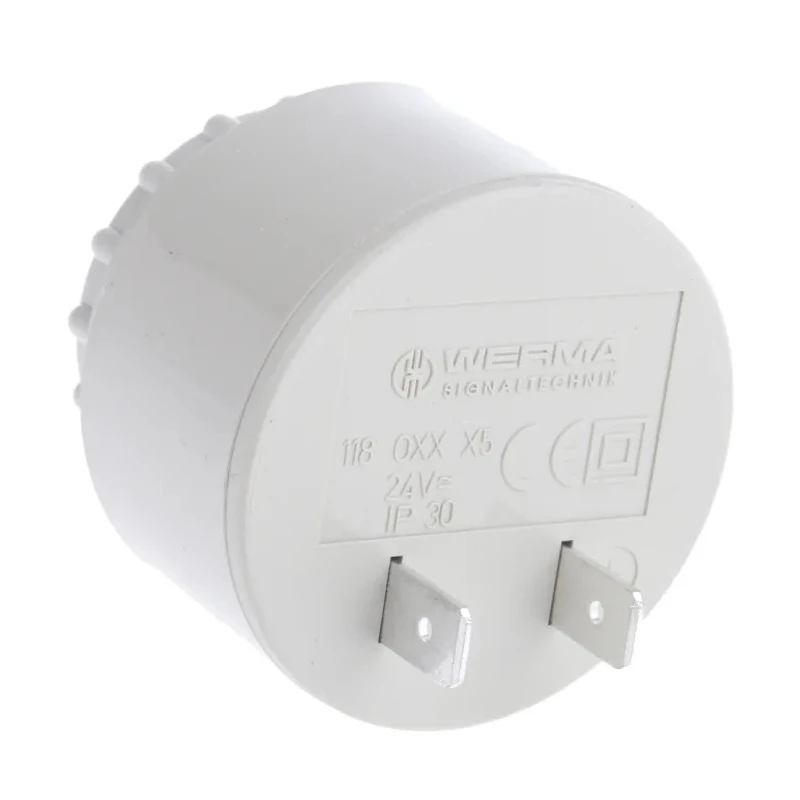

Werma Piezo Buzzer Component Panel Mount 24V AC/DC Continuous Tone 90dB High Frequency 2.4kHz 118.068.15

Free Delivery in India | Lowest Global Shipping Charges

Werma Piezo Buzzer Component Panel Mount 24V AC/DC Continuous Tone 90dB High Frequency 2.4kHz 118.068.15

Name: Werma Piezo Buzzer Component Panel Mount 24V AC/DC Continuous Tone 90dB High Frequency 2.4kHz 118.068.15
Brand: WERMA
SKU: 202381
Price: 71 USD
Availability: InStock



Category Piezo Buzzer Component Brand WERMA Condition New

Specifications

Country of Origin	Germany
Brand	Werma
Mount Type	Panel Mount
Maximum Operating Temperature	60°C
Standards/Approvals	CSA, UL, RoHS, CE
Maximum Supply Voltage	24V ac/dc
Tone Type	Continuous
Werma Piezo Buzzer Component Panel Mount 24V ac/dcBrand	Werma

Key Features

Compact dimensions of 43mm diameter and 40mm height for space-saving installations.
Designed for quick panel mounting with impact-resistant ABS housing.
Operates reliably over a temperature range of -20°C to +60°C.
Produces a clear continuous tone suitable for emergencies and security systems.
Internal drive circuit allows simple DC supply voltage operation.
Ingress protection rated at IP43, suitable for indoor use only.
Complies with CSA, UL, RoHS, and CE standards ensuring quality and safety.

Product Description

Werma 118.068.15 Piezo Buzzer Component Panel Mount 24V AC/DC is engineered for industrial and commercial applications requiring dependable audible alert signals. It produces a continuous tone at 90dB intensity and a high frequency of 2.4kHz, making it ideal for security systems, communication devices, household appliances, and fire alarms.

The buzzer’s compact size of 43mm diameter by 40mm height enables integration into panels where space is limited. Its robust ABS housing ensures impact resistance and durability under various operating conditions, including temperatures ranging from -20°C to +60°C.

Designed for straightforward panel mounting, the internal drive circuit supports easy operation with either AC or DC 24V supply, minimizing the need for external components while ensuring consistent performance. The unit features an IP43 ingress protection rating, making it suitable for indoor settings that require protection from solid objects above 1mm but not waterproofing against liquids.

This buzzer complies with CSA, UL, RoHS, and CE standards, confirming its adherence to international safety and environmental requirements. It is particularly beneficial in industrial automation, HVAC systems, security apparatus, and various control panel installations.

Compact 43mm diameter x 40mm height dimensions. Continuous 90dB tone at 2.4kHz frequency for effective signaling. Panel mount design for easy installation. Impact-resistant ABS housing for long-lasting durability. Wide operating temperature range of -20°C to +60°C.

IP43 ingress protection rating for solid particle resistance. Compatible with 24V AC or DC power supply. Complies with CSA, UL, RoHS, and CE certifications.

The Werma 118.068.15 piezo buzzer is ideal for use in industrial, laboratory, construction, and commercial environments where reliable audio indication is necessary. Browse EnvMart for a wide selection of electronic signaling components and related accessories.
