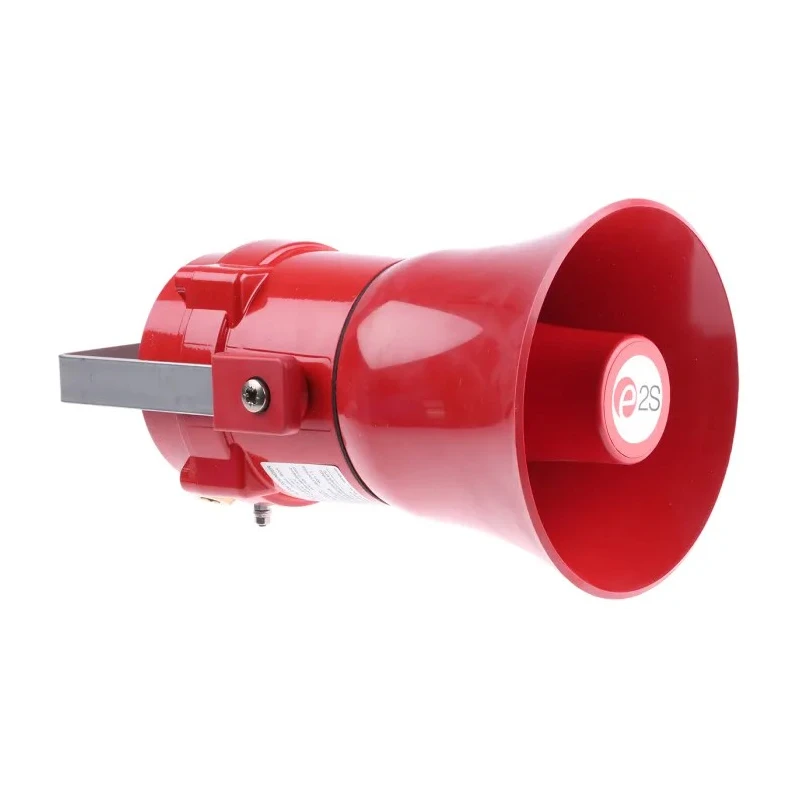

e2s BEXS110 Series Electronic Sounder Surface Mount IP67, 230V AC, 32-Tone 117 dB at 1m BEXS110DFAC230AB1A1R

The e2s BEXS110DFAC230AB1A1R Electronic Sounder is a surface mount device engineered for high performance in harsh industrial environments. With a marine grade aluminium enclosure and IP67 ingress protection, it is resistant to corrosion and capable of withstanding water immersion and dust ingress, making it ideal for hazardous area signaling.

Powered by 230V AC, it supports 32 distinct alarm tones and offers three selectable alarm stages to suit complex signaling requirements. The sounder produces an impressive sound level of 117 dB(A) at one meter, ensuring audibility in noisy industrial settings.

This model is designed compliant with various international standards and certifications including ATEX, IECEx, and INMETRO, qualifying it for use in explosive atmospheres such as Zones 1, 2, 21 and 22. The inclusion of a reverse polarity diode safeguards the device from incorrect wiring during installation.

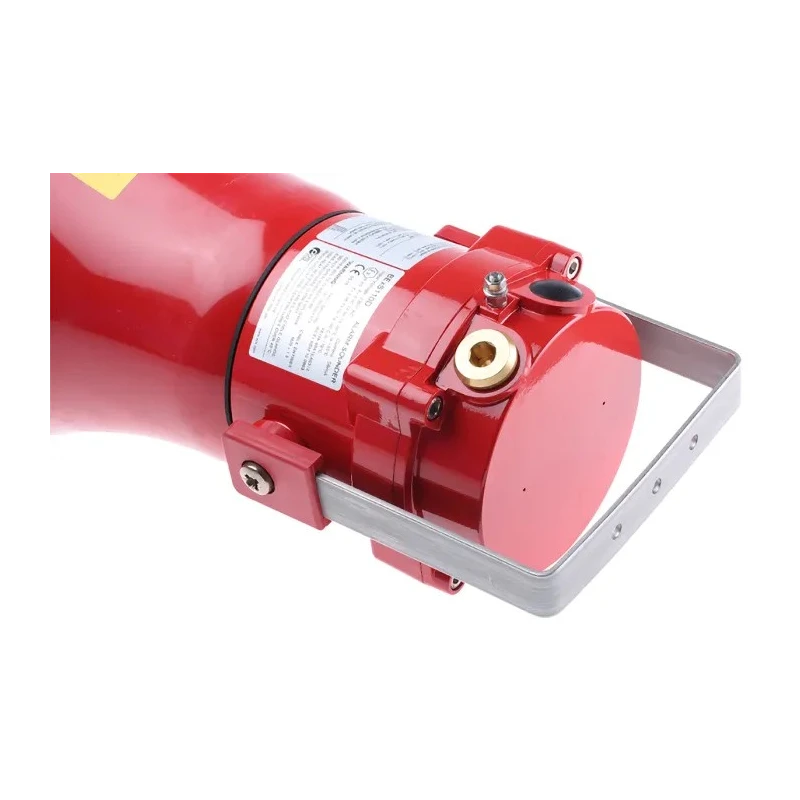

The housing is constructed from corrosion-proof, marine grade copper-free LM6 aluminium with chromate and powder coat finish. It is mounted using a stainless steel ratchet adjustable 'U' bracket, allowing full 360° positioning. The sounder is tested to IP66/67 ingress protection levels, suitable for outdoor and industrial environments.

The operating temperature range from -50°C to +70°C ensures reliability in extreme conditions typical in industrial, manufacturing, and process facilities. It comes with multiple international certifications, including VdS and CE approvals, as well as compliance with SIL 1 IEC 61508 standards.

Applications include industrial plants, chemical processing, water treatment facilities, manufacturing units, and commercial hazardous area signaling where robust, high output audible alarms are critical for safety.

e2s products represent advanced automation signalling solutions with industrial grade quality and reliability available through EnvMart catalog. Constructed from marine grade, corrosion proof aluminium. Automatic synchronization in multi-sounder systems.

Ratchet adjustable stainless steel bracket for precision mounting. Ingress protection rated to IP66 and IP67 standards. Reverse polarity diode for wiring protection. Certified for hazardous areas with ATEX, IECEx, and INMETRO approvals.

Multi-tone selectable alarm options for application flexibility. Operating temperature range from -50°C to 70°C. Suitable for Zone 1, 2, 21 & 22 hazardous locations. Sound output of 117 dB at 1 meter ensures clear audible signaling.
