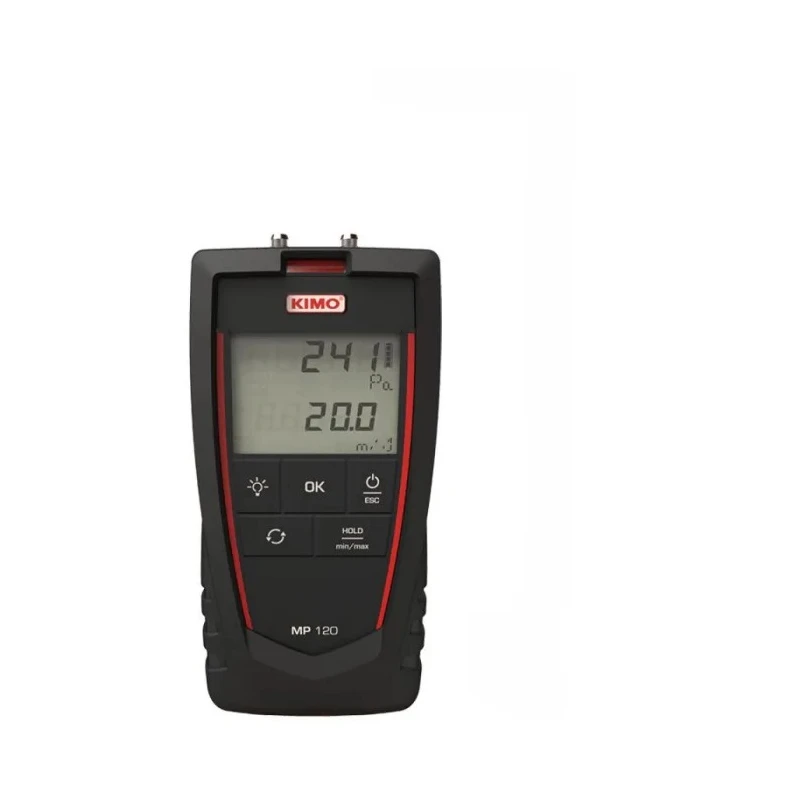

KIMO Differential Manometer With 2 Pressure Ports, Accuracy 0.5%, Max Pressure Measurement 1000 Pa MP 120 S

KIMO MP 120 S Differential Manometer is a high-precision, portable instrument designed for measuring pressure and air velocity, particularly well-suited for HVAC and industrial environments. Featuring two pressure ports and differential pressure measurement capability, it ensures accurate readings with an accuracy of 0.5% and a maximum pressure measurement of 1000 Pa.

The device incorporates a backlit LCD screen, providing clear visibility of measurements and various parameters even in low-light conditions. Users can browse saved measurement history and data graphs, facilitating efficient analysis and report generation in formats such as PDF, CSV, or XML. The device also allows attaching up to four photos to reports for enhanced documentation.

Powered by AAA LR03 batteries, the manometer delivers up to 180 hours of battery life, supporting extended field use with minimal interruptions. Its IP54 rating provides protection against dust ingress and water splashes, making it reliable in tough industrial settings. Operating temperature ranges from 0°C to 50°C, accommodating typical environmental conditions.

The compact handheld form factor with dimensions 147.9 mm (L) x 71 mm (W) x 34.2 mm (H) and a lightweight design of 220 g ensure ease of handling and portability. Conformance with relevant standards such as 2012/19/EU WEEE, RoHS II, EMC directives reinforces its quality and safety credentials.

This manometer is particularly suitable for various industrial, laboratory, construction, HVAC, manufacturing, and environmental test and measurement applications. It enables professionals to perform reliable pressure measurements critical for system diagnostics, maintenance, and quality assurance.

The device supports two pressure ports for differential pressure measurement. It offers a maximum pressure measurement capacity of 1000 Pa and a minimum of -1000 Pa. The Manometer features an IP54 rating ensuring protection against dust and splashing water.

Equipped with a backlit LCD screen for easy reading in low light conditions. Powered by AAA LR03 batteries with an operating life of up to 180 hours. Operating temperature range is from 0°C to 50°C suitable for various environments.

Compact dimensions with length 147.9 mm, width 71 mm, and height 34.2 mm aid portability. Weighs only 220 grams for convenient handheld use. Compliant with standards including RoHS II and EMC directives. Ideal for HVAC, industrial, and laboratory pressure and air velocity testing applications.

Discover more options and specifications for high-precision measuring instruments on EnvMart to support your professional and industrial needs.
