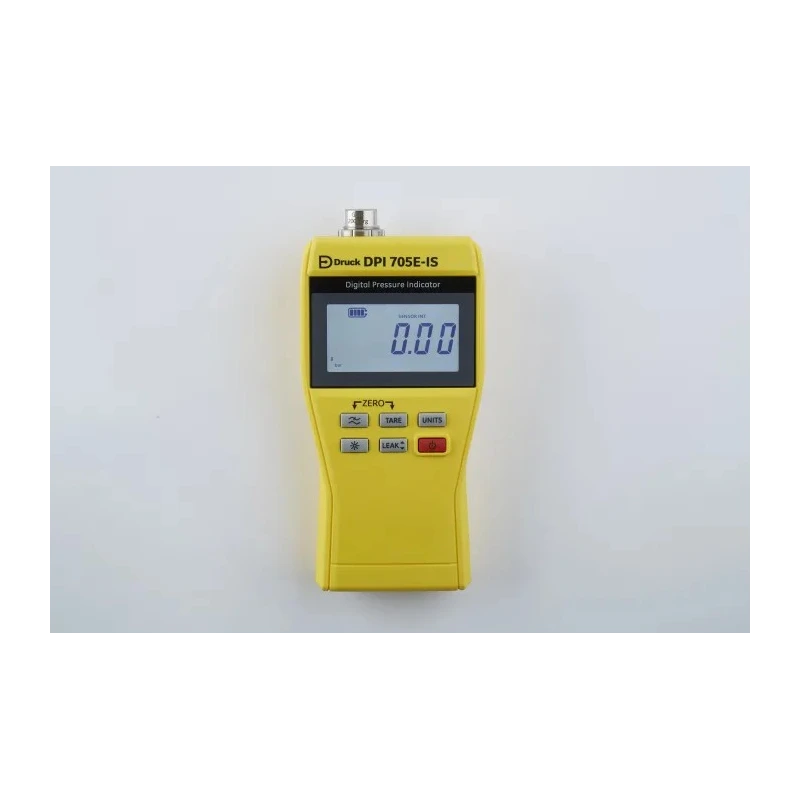

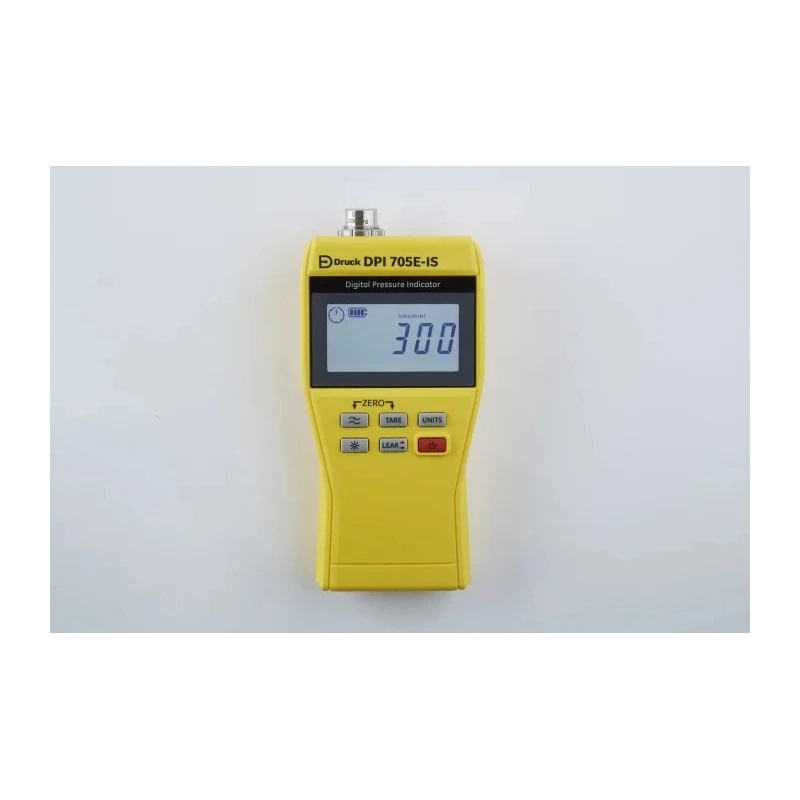

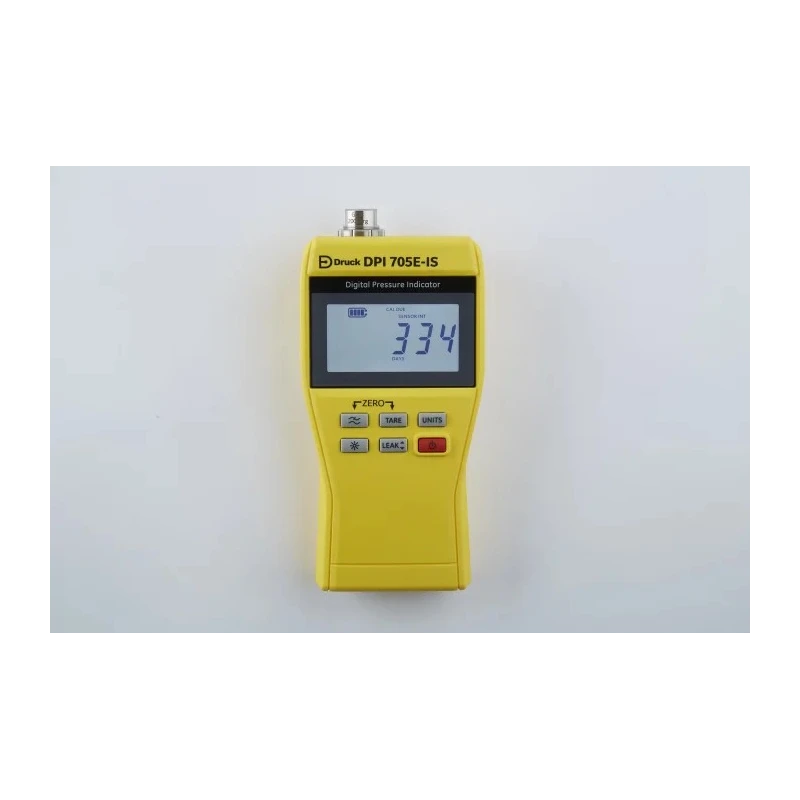

Druck DPI705E Gauge Manometer with 1 Pressure Port, Max Pressure Measurement 0.35 bar DPI705E
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Accuracy | ±0.05 % |
| Display Type | LCD Backlight |
| Brand | Druck |
| Battery type | AA |
| Height | 43mm |
| Length | 200mm |
| Model | DPI705E |
| IP Rating | IP54 |
| Gross Weight | 563g |
| Width | 95mm |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -10°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | RCM, CE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 201-2884Brand: DruckManufacturers Part No.: DPI705EIS-2-03G-P1-H1-U0-OP0 |
| Maximum Pressure Measurement | 0.35bar |
| Minimum Pressure Measurement | 0bar |
| Number of Pressure Ports | 1 |
| Pressure Port Type | Gauge |
Key Features
- Offers ±0.05% accuracy for reliable readings.
- Equipped with one gauge-type pressure port.
- Operates within a temperature range of -10°C to 50°C.
- Features an LCD backlight display for clear visibility.
- Designed for leak testing and hazardous area certification (ATEX).
- IP54 rated for dust and splash resistance.
- Powered by AA batteries with extended battery life.
Product Description
Druck DPI705E Gauge Manometer with model DPI705E is a highly accurate pressure measurement instrument designed for industrial and hazardous environment applications. It features a single gauge pressure port with a maximum measurement range of 0.35 bar and precision accuracy of ±0.05%. The device is suitable for leak testing, fault finding, and system commissioning with a robust, compact design.
The manometer operates between -10°C and 50°C and includes an LCD backlight display for enhanced readability in low-light conditions. Its IP54 rating ensures protection against dust ingress and water splashes, making it suitable for demanding industrial settings.
The DPI705E supports intrinsically safe operation, certified with ATEX standards, targeting safety in hazardous areas. Powered by AA batteries, it offers long operating life, ideal for continuous use up to one year with typical usage protocols.
The unit’s dimensions (200mm x 95mm x 43mm) and weight (563g) provide ergonomic handling for portable use. Manufactured in the United Kingdom, it complies with RCM and CE approvals, ensuring quality and regulatory compliance.
Offers ±0.05% accuracy for reliable readings. Equipped with one gauge-type pressure port. Operates within a temperature range of -10°C to 50°C. Features an LCD backlight display for clear visibility. Designed for leak testing and hazardous area certification (ATEX).
Compact dimensions: 200mm length, 95mm width, and 43mm height. IP54 rated for dust and splash resistance. Powered by AA batteries with extended battery life.

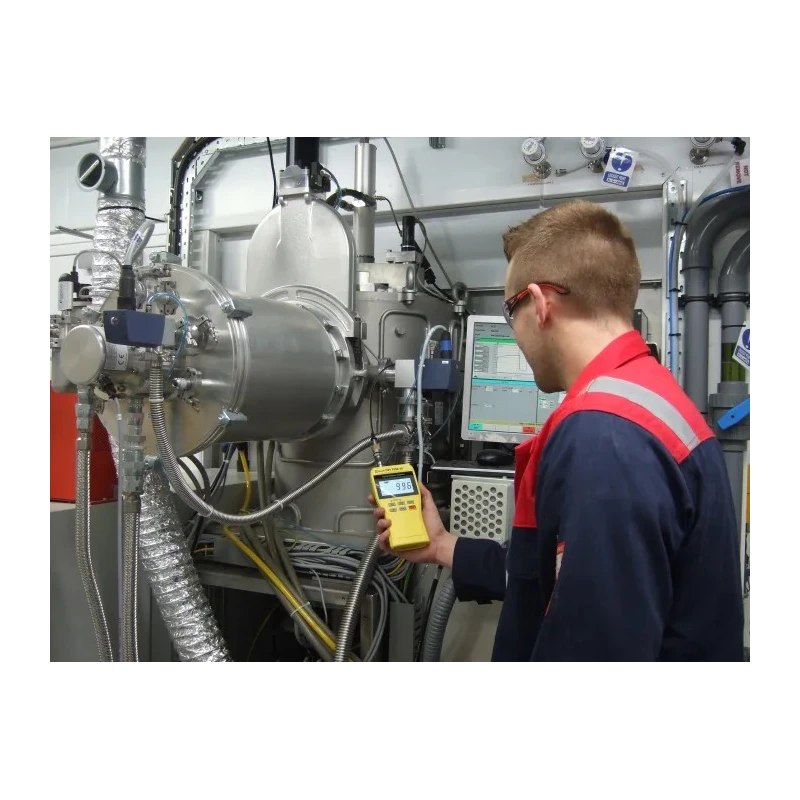

This pressure gauge manometer is applicable across aerospace, automotive, industrial, and laboratory sectors requiring accurate pressure monitoring and leak testing. It complements calibration systems and field testing instruments used in manufacturing, HVAC, and quality control environments.
Browse our range of Druck manometers and manometers in the Manometer category on EnvMart for additional solutions and technical specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure measurement of this model is 0.35 bar.
It offers an accuracy of ±0.05%.
This unit operates within a temperature range of -10°C to 50°C.
It is equipped with one gauge-type pressure port.
It features an LCD backlight display for enhanced visibility.
The manometer has an IP54 rating for dust and splash resistance.
The gross weight of this model is 563 grams.
Its dimensions are 200mm in length, 95mm in width, and 43mm in height.
Yes, it is designed for hazardous area certification (ATEX).
It is powered by AA batteries, providing an extended battery life.
It complies with RCM and CE approvals.
This manometer is applicable across aerospace, automotive, industrial, and laboratory sectors requiring accurate pressure monitoring and leak testing.
