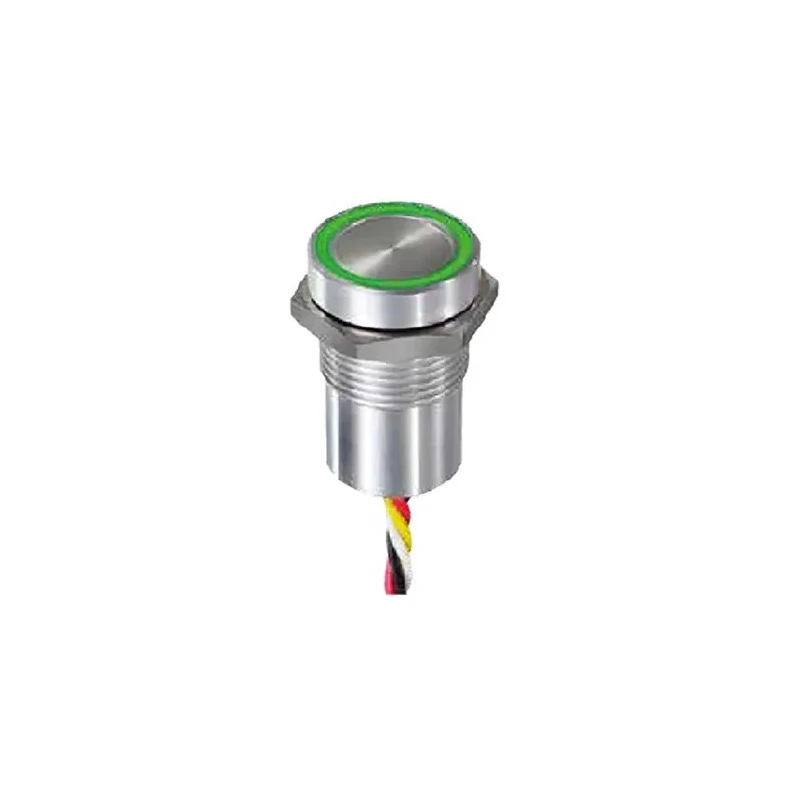

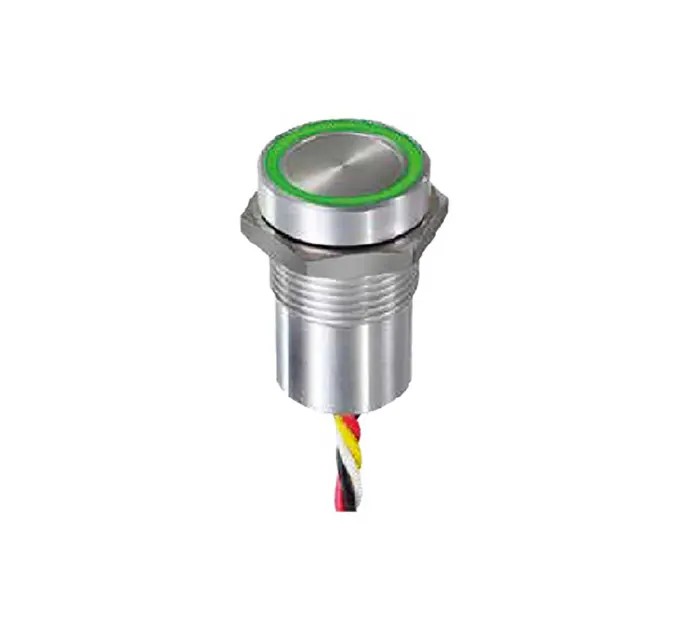

APEM Capacitive Switch Latching Momentary Illuminated Green Red NPN IP68 IP69K CPB1210000KGSC

The APEM CPB1210000KGSC capacitive switch is a latching and momentary type switch with illuminated LED options in green and red, featuring NPN output and robust protection levels rated to IP68 and IP69K. It includes an anodized aluminium housing providing chemical and contaminant resistance, ideal for demanding industrial applications such as automation, control systems, and machinery interface.

This touch sensor switch with a 16mm bushing diameter is engineered for effortless finger activation, eliminating the need for mechanical force and thus reducing wear and mechanical failure risks. The IK10 impact resistance further ensures durability against mechanical shocks.

The switch is designed for high cycle life with an expected 50 million activations, making it well suited for self-service kiosks, industrial controls, and commercial equipment requiring long-lasting reliable switches. The adjustable sensitivity and auto-calibration enable stable operation despite environmental variations or contaminants.

Operating temperature ranges from -20°C to 65°C, allowing functionality in a variety of industrial environments. Electrical ratings include a maximum input voltage of 24V and a current rating of 200mA, with a versatile operating voltage range down to 5V. The integration options are broadened by multiple housing color options including blue, red, gold, black, and green.

The product complies with IEC and EN standards guaranteeing electrical safety and reliability. The illumination LEDs provide clear status indication with independent or output-linked image LED functionality.

The switch operates with a capacitive mechanism requiring no operating force for activation. It features a durable aluminium anodized housing resistant to chemicals and contaminants. Designed for harsh environments, it offers IK10 impact resistance and rated to IP68 and IP69K standards.

Suitable for repetitive self-service applications with a life expectancy of 50 million cycles. Independent LED functionality enhances visibility with selectable green and red colors. Adjustable sensitivity and auto-calibration functions ensure reliable operation.

Wide operating temperature range from -20°C to 65°C supports varied industrial environments. Compatible with input voltages from 5V to 24V and a current rating of 200mA. The switch has a blue, red, gold, black, and green housing color options for versatile integration.

Meets international standards including EN61000-4-2 and IEC 60529 for electrical and environmental performance.

This APEM capacitive switch is ideal for use in industrial automation, electrical equipment, machinery controls, and commercial applications where reliable, long-life, and impact-resistant switches are essential. Its robust design and compliance with strict protection and electrical standards make it suitable for environments demanding high durability and safety.
