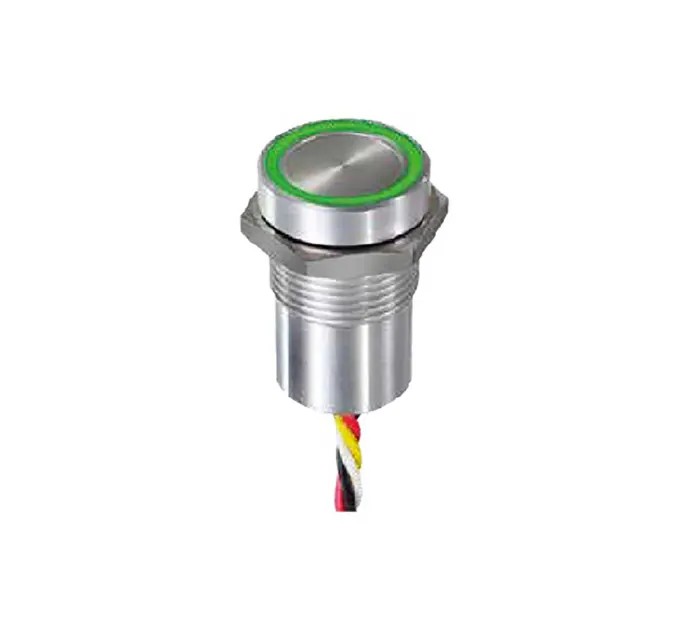

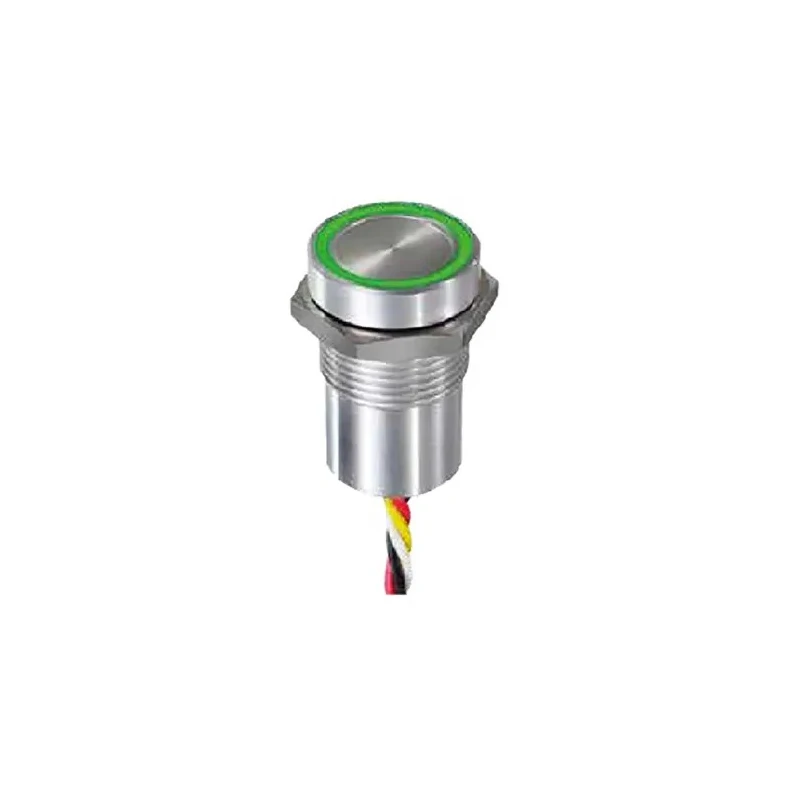

APEM Capacitive Switch Momentary Latching Illuminated Green Red NPN IP69K IP68 Aluminium Housing CPB1110000KGSS

The APEM CPB1110000KGSS capacitive switch is a high-quality industrial control component designed for momentary latching and illuminated switching applications. Featuring a capacitive touch sensor with a bushing diameter of 16mm, this switch provides reliable momentary OFF switching with no mechanical wear due to its contactless operation.

This switch is encased in a durable aluminium anodized housing that offers excellent resistance to chemicals, contaminants, dust, and dirt, making it ideal for use in demanding industrial, automation, and self-service environments. It offers robust IK10 impact resistance for enhanced mechanical protection.

With independent LED indicators in green and red colors, the switch provides clear visual feedback for operational status. The NPN output type facilitates easy integration into varied control circuits, supporting input voltages from 5V to a maximum of 24V, and can carry current up to 200mA.

Certified to IP68 and IP69K ingress protection standards, this switch is fully sealed against dust and protected against high-pressure, high-temperature water jets, making it suitable for harsh environmental conditions. It operates reliably within a temperature range from -20°C to 65°C and complies with the EN61000-4-2 standard to ensure immunity to electrostatic discharge.

Key technical features include an auto-calibration function, adjustable sensitivity, and an expected lifecycle exceeding 50 million touch actuations, ensuring longevity in repetitive use applications. This product is manufactured in the United Kingdom and is well suited for industrial automation, electrical control panels, and related applications where durable and hygienic switch controls are required.

Operates with momentary switch function for reliable control. Capacitive sensing technology enables touch activation without mechanical wear. Illuminated with green and red LED colors for clear status indication. Constructed with robust aluminium housing for enhanced durability.

High ingress protection with IP69K and IP68 ratings, suitable for harsh environments. Supports input voltages from 5V up to 24V for versatile applications. Output type is NPN, compatible with common industrial control circuits.

Designed to operate reliably between -20°C and 65°C temperature range. Complies with EN61000-4-2 standards for electromagnetic compatibility. Rated for a current of 200mA providing sufficient switching capacity. Manufactured in the United Kingdom ensuring quality and reliability.

Designed for high cycle life with up to 50 million operating cycles. Explore the APEM range of Capacitive Switches and other industrial electrical components on EnvMart for your automation and control needs.
