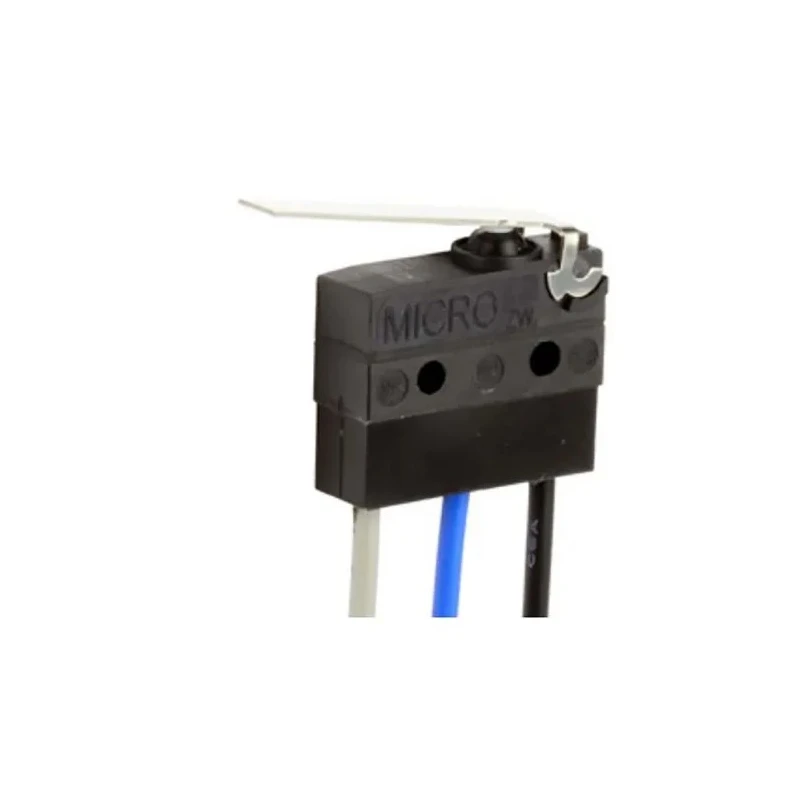

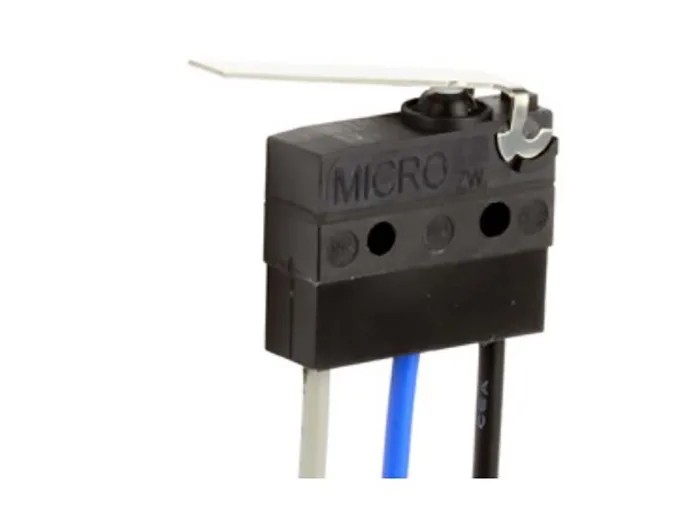

Honeywell Technologies Micro Switch with Long Straight Lever, Solder Terminal, 6A, 250 V AC, SPDT, IP00 ZW50F15JD1

Honeywell ZW50F15JD1 Micro Switch with Long Straight Lever is engineered for reliable precise switching in electrical and automation systems. Featuring a solder terminal connection style, this switch is designed for control and safety applications requiring a single-pole double-throw (SPDT) contact configuration rated at 6 amperes and 250 volts AC.

The actuator utilizes a long straight lever delivering consistent force actuation with an operating force of approximately 203 grams. The housing is constructed from high-quality polybutylene terephthalate material, providing excellent dimensional stability and thermal resistance, enabling the switch to operate reliably within a broad temperature range of -40°C to 120°C. Its compact subminiature form factor measures 19.8 mm in length, 6.4 mm in width, and 9.25 mm in depth.

Designed to endure demanding industrial and manufacturing environments, the switch has a mechanical life rating of one million operations, reducing maintenance and replacement cycles. Suitable for limit detection, position feedback, and control panel applications, it is especially used in conveyor systems, ventilation equipment, electromechanical assemblies, motors, and instrumentation devices.

The device holds multiple recognized certifications and approvals including RoHS compliance, UL, cUL, ENEC, and CQC, ensuring suitability for industrial installations and adherence to environmental and safety standards.

Long straight lever delivers reliable and consistent actuation. Single-pole double-throw (SPDT) contact configuration for flexible circuit switching. Rated for 6A current and 250V AC contact voltage for common control circuits.

Polybutylene terephthalate housing offers thermal resistance and durability. Operational temperature range from -40°C to 120°C enables extreme condition use. Mechanical durability supports 1,000,000 minimum cycles for extended service life.

Solder terminals enable secure PCB and wire connections. Compact subminiature type suitable for varied electrical applications. Certified by multiple international standards ensuring reliability and safety.

This Honeywell Micro Switch is ideal for industrial, manufacturing, HVAC, automation, and instrumentation applications requiring precise mechanical switching and robust environmental tolerance. For users seeking trusted brand quality and compliance with international safety standards, the ZW50F15JD1 model provides a high-performance solution. Browse further Honeywell switches and automation components at EnvMart for comprehensive industrial electrical solutions.
