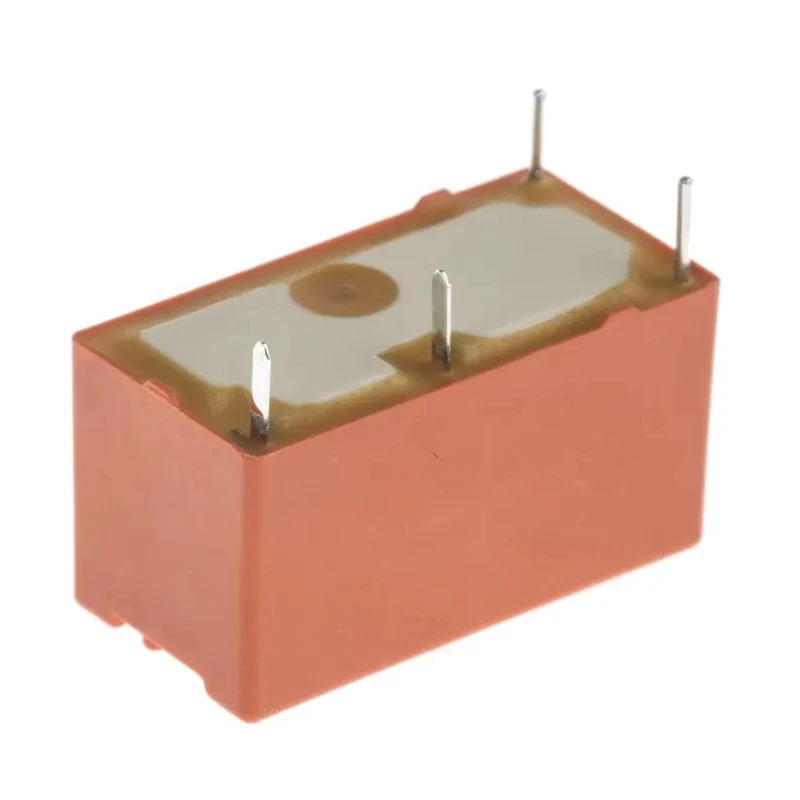

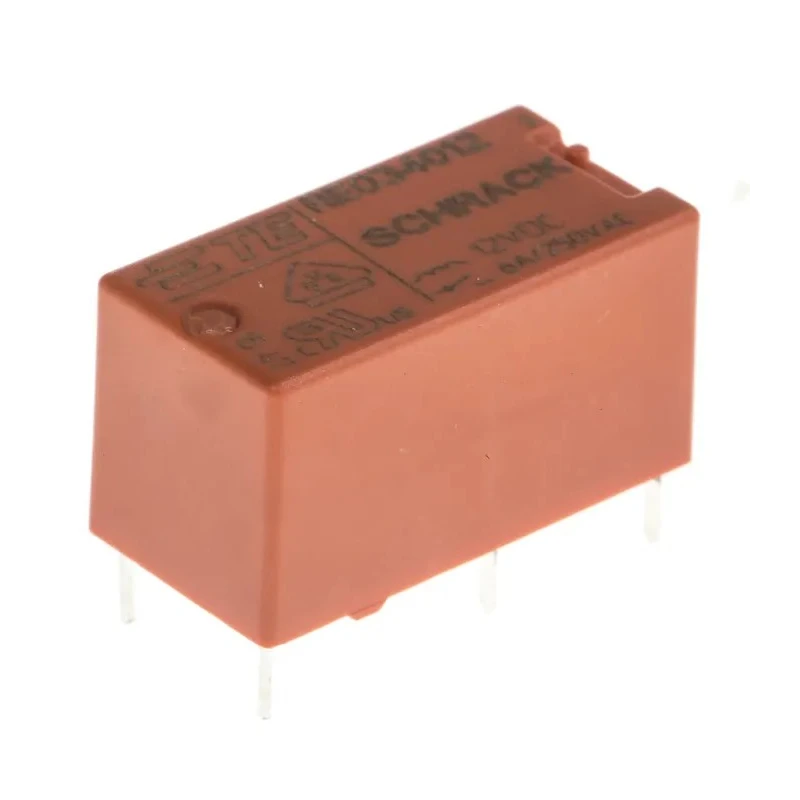

TE Connectivity PCB Power Relay 12V DC Coil 6A Switching Current SPST RE034012

TE Connectivity RE034012 PCB Power Relay is engineered for industrial and electrical applications requiring reliable switching with a compact form factor. This SPST relay operates at a coil voltage of 12V DC and supports a maximum switching current of 6A, making it suitable for control circuits in PLCs, timers, temperature controllers, and I/O cards used in automation and white goods.

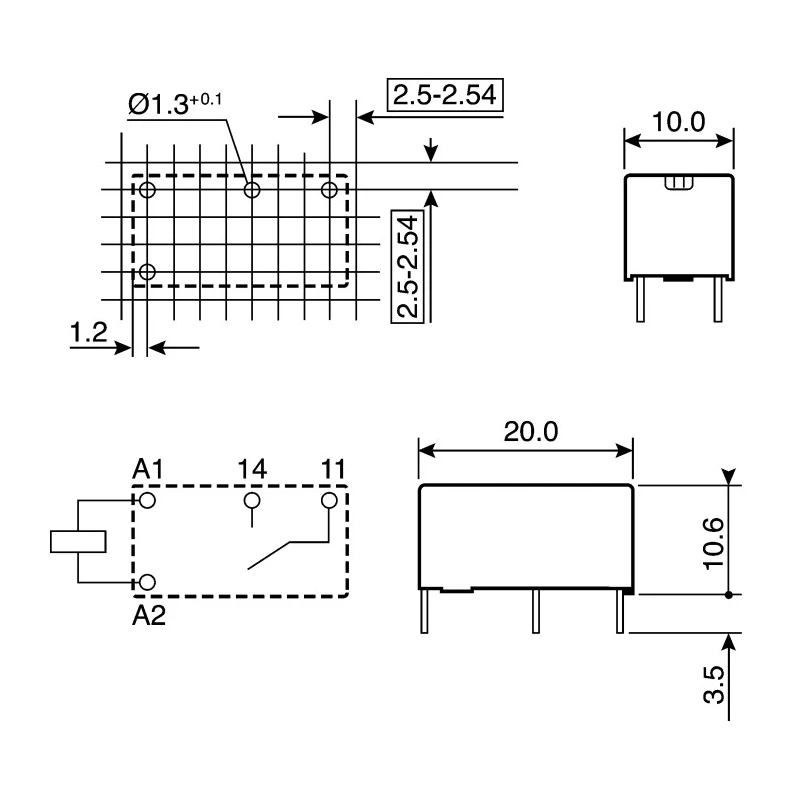

The relay’s PCB mount design with solder terminals offers secure and steady connections on printed circuit boards. Built with a silver alloy contact material, the relay ensures excellent conductivity and longevity under repeated switching cycles. Its compact size of 10.6mm height, 20mm length, and 10mm width makes it ideal for use in tight spaces without compromising performance.

With a coil resistance of 720Ω and a coil power consumption of 200mW, the relay offers efficient operation with low power drain. The device withstands operating temperatures ranging from -40°C to 70°C, suited for harsh industrial environments. It supports switching AC voltages up to 400V AC and has a switching power rating of 1.5 kVA.

The RE034012 model complies with RoHS directives, ensuring environmentally responsible manufacturing. This relay is manufactured in the Czech Republic and is part of the RE series known for sensitive coils and wash-tight construction featuring RTIII standards. It has creepage and clearance distances of 4mm and a UL94V-0 flammability rating.

Typical applications include programmable logic controllers (PLCs), timers, temperature control systems, and household appliances requiring reliable power switching. This relay enhances operational safety and efficiency in electronic and electrical circuits across industrial, manufacturing, and HVAC sectors.

Operates with a coil voltage of 12V DC ensuring compatibility with various applications. Features SPST (Single Pole Single Throw) contact configuration for straightforward switching tasks. Designed for PCB mounting with solder terminal type for reliable electrical connections.

Switching current rated at 6A with switching AC voltage up to 400V AC. Extends operating temperature range from -40°C to 70°C for durable industrial usage. Constructed with silver alloy contact material to provide excellent conductivity and durability.

Compact dimensions of 10.6 x 20 x 10 mm suit space-constrained PCB designs. Low coil power consumption of 200mW ensures energy-efficient operation. Complies with RoHS standards and manufactured in the Czech Republic. Explore more power relay options and TE Connectivity products to find solutions tailored for your industrial automation and electrical control needs on EnvMart.
