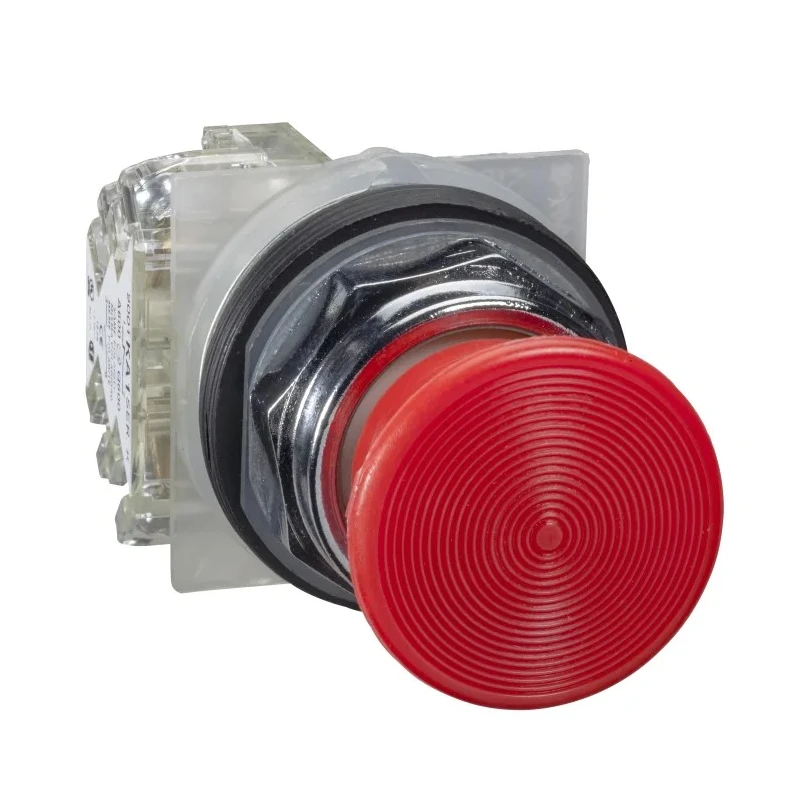

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch, Spring Return, 30 mm Cutout, 1 CO, Red 9001KR24RH13

Schneider Electric 9001KR24RH13 Harmony 9001K Series Illuminated Push Button Switch is a highly reliable and robust switch designed for industrial and automation applications. It features a mushroom-style actuator with a spring return operation, ensuring rapid and automatic reset after activation. The red LED illumination provides clear indication and operational status, making it suitable for control panels where visibility is critical.

The switch is engineered for a 30 mm panel cutout and is compatible with various industrial electrical configurations with 1 CO (change-over) contact. Rated for contact voltages up to 240V AC and 125V DC with a maximum contact current of 10A, it supports a wide range of electrical loads reliably.

Constructed with an IP66 protection rating, this push button switch guarantees excellent resistance against dust and water, suitable for harsh environments. Its operating temperature range from -25°C to 70°C and compliance with multiple global standards such as IEC 947 series, UL 508, and CSA C22-2 no. 14 ensure both safety and performance in demanding industrial environments.

The switch utilizes screw terminals for strong and secure electrical connections, facilitating easy installation and maintenance. Dimensions are compact, with a length of 70 mm, width of 46 mm, and height of 45 mm, fitting efficiently into standardized control panels.

This product is ideal for industrial automation systems, electrical control panels, manufacturing machinery, and safety emergency stop functions. Its robust build and compliance with environmental standards such as WEEE, RoHS, and REACH also make it a sustainable choice.

Features a red illuminated LED for clear signaling. Robust IP66 rating ensures protection against dust and water ingress. Suitable for industrial applications with operating temperatures from -25°C to 70°C. Designed for panel mounting with a 30 mm cutout size.

Supports contact voltages up to 240V AC and 125V DC. Switch contact current is rated at 10A for reliable electrical performance. Screw terminal type for secure wiring connections. Compact dimensions of 70 mm length, 46 mm width, and 45 mm height.

Complies with international standards including IEC 947-1, IEC 947-5-1, UL 508, and CSA C22-2 no.14. Explore the full range of Push Button Switches by Schneider Electric to find solutions tailored to diverse industrial control requirements at EnvMart.
