TE Connectivity PCB Power Relay 12V DC Coil 5A Switching Current DPDT IM06DGR 1-1462039-8

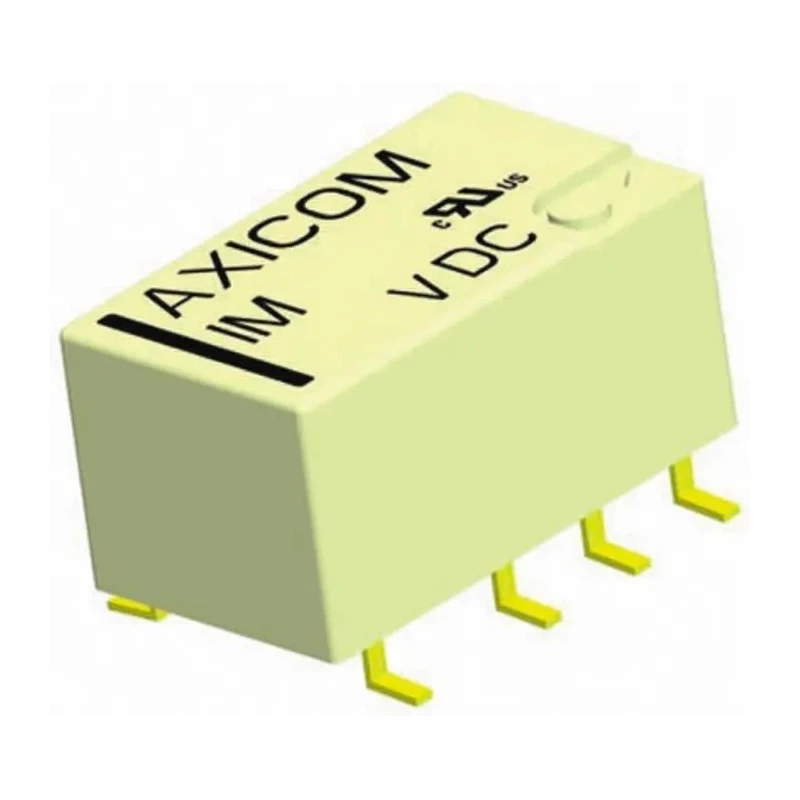

TE Connectivity IM06DGR 1-1462039-8 PCB Power Relay is designed for robust electrical switching applications requiring reliable operation and compact footprint. This power relay features a 12V DC coil and supports a switching current of 5A with a DPDT (Double Pole Double Throw) contact configuration, allowing flexible circuit control on printed circuit boards.

The relay employs gold plated bifurcated contacts that minimize contact resistance (50mΩ) and provide superior conductivity and durability. Encased in a hermetically sealed housing, the relay offers IP67 ingress protection making it resistant to dust and moisture, suitable for industrial and telecom signal relays.

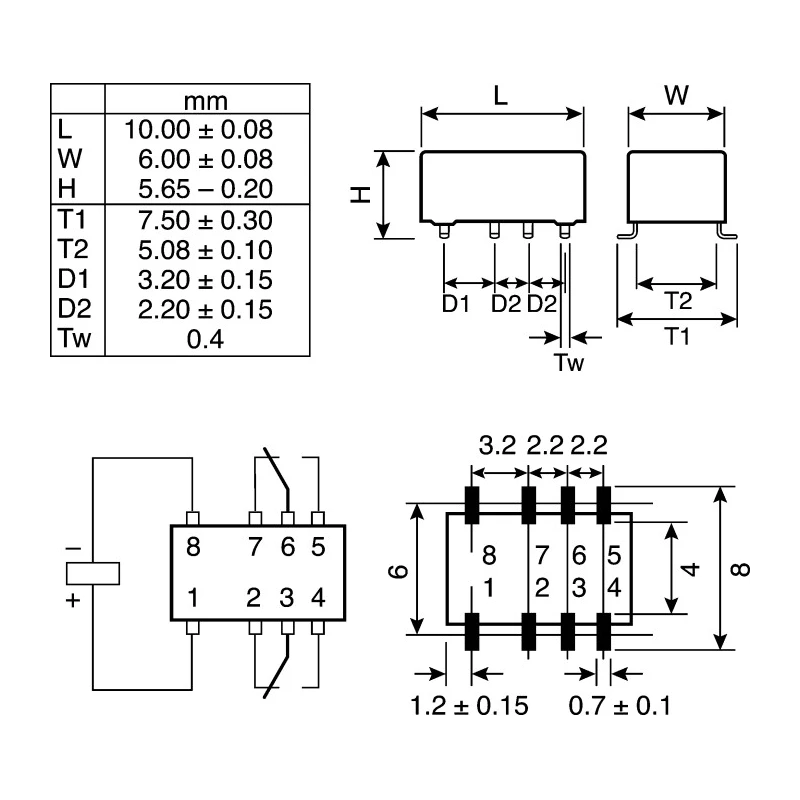

Its slimline and low profile design (dimensions approximately 10mm length, 7.5mm width, and 5.7mm height) with gull wing SMT terminals facilitates automated PCB assembly and efficient space utilization. High mechanical shock resistance up to 300G functional and 500G survival ensures reliability in vibration-prone environments.

The relay operates reliably over a wide temperature range from -40°C to 85°C, making it ideal for industrial, telecom, and commercial electronics applications. It supports switching voltages of up to 250V AC and 220V DC, with a switching power rating of 62.5VA, and coil resistance of 1 kΩ consuming only 140mW coil power.

Certified to UL standards, this relay meets rigorous safety and quality benchmarks. It also complies with Telcordia TR-NWT-001089 and EC 60950 standards for surge capability, enhancing durability in demanding operational conditions.

12V DC coil voltage for effective control with low power consumption. DPDT contact configuration allows switching of two independent circuits. Compact PCB mounting via surface mount gull wing leads. Gold plated contacts ensure reliable low-resistance connections.

Hermetically sealed for IP67 protection against environmental elements. High mechanical shock resistance supports demanding industrial use. Wide operating temperature range for versatile installation environments. Switching capacity suitable for moderate power applications in telecommunications and automation.

UL approved for assured safety and reliability.

This TE Connectivity power relay is well suited for use in telecom infrastructure, industrial automation, manufacturing equipment, and other electronic control systems requiring compact, robust switching solutions. Explore the Power Relays category on EnvMart for related products and trusted brand options.
