Otto P9 Series Momentary Panel Mount Push Button Switch SPDT Blue LED IP68 28V dc 115V ac P9113126W

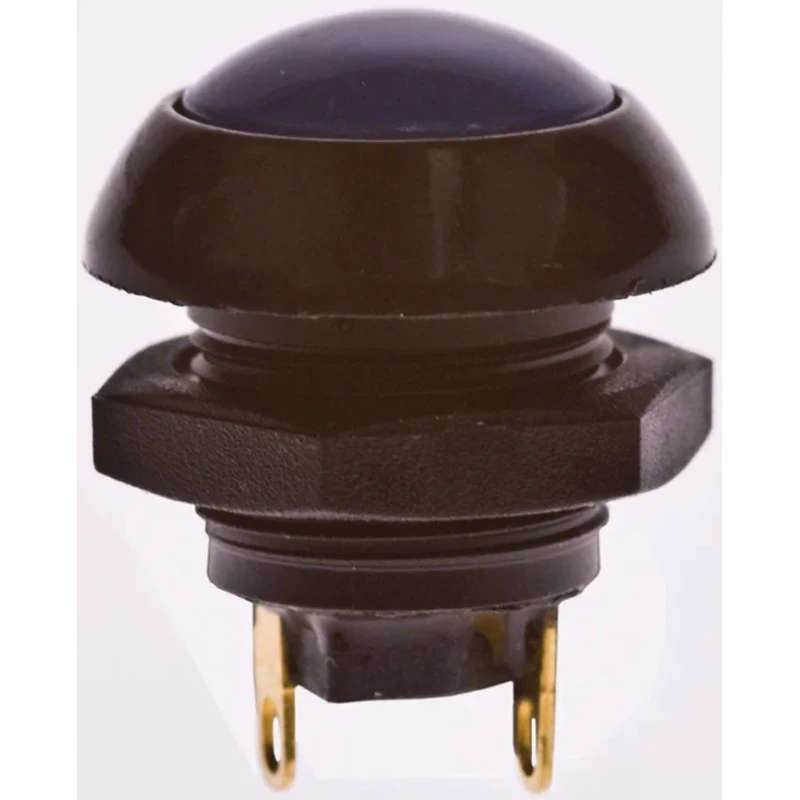

Otto P9 Series P9113126W push button switch is a high-performance momentary panel mount switch with a black body and blue dome actuator. Rated with IP68 sealing, it is watertight and submersible to 1 meter, making it ideal for rugged industrial environments.

The switch offers reliable SPDT contact configuration with 5A contact current at 28 V dc or 115 V ac, suitable for a wide range of control panel applications including industrial machinery, automation systems, instrumentation, and heavy equipment control grips.

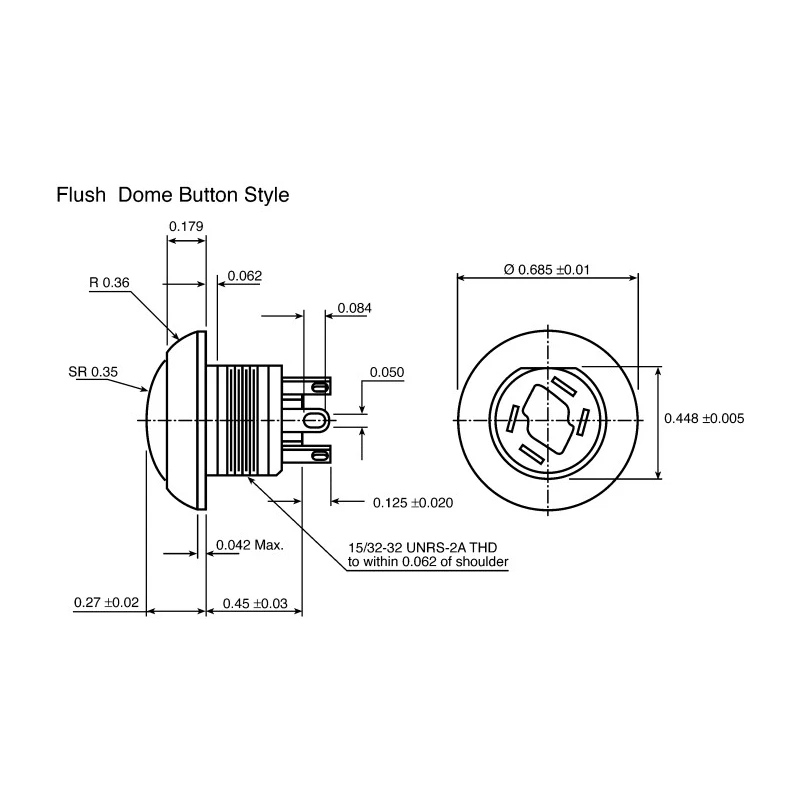

Operating temperatures ranges from -55°C to +85°C ensure durability under harsh thermal conditions. The compact design includes a 0.5-inch panel cutout with a threaded body for easy hex nut mounting and a short behind-panel depth of approximately 12mm.

Supplied with a nut and panel sealing gasket, the P9 series push button switch also features a blue LED for visual indication and a dome actuator style for ergonomic user interaction. It delivers a mechanical lifespan of approximately one million operations and electrical life of 25,000 operations at full rated load.

This switch complies with RoHS standards and is manufactured in the United States to strict quality criteria for demanding industrial and commercial applications. Momentary action with SPDT switching for precise operation.

Blue dome actuator with LED enhances usability and status indication. IP68 rating ensures dust-tight and waterproof protection. Robust construction suitable for multiple industrial sectors including construction and manufacturing.

Operating temperature from -55°C to +85°C for versatile environment usage.

This Otto push button switch is an excellent choice for high-reliability control and instrumentation panels where rugged performance and long lifecycle are critical. Explore more Push Button Switch options in the Electronics & Electricals category at EnvMart.
