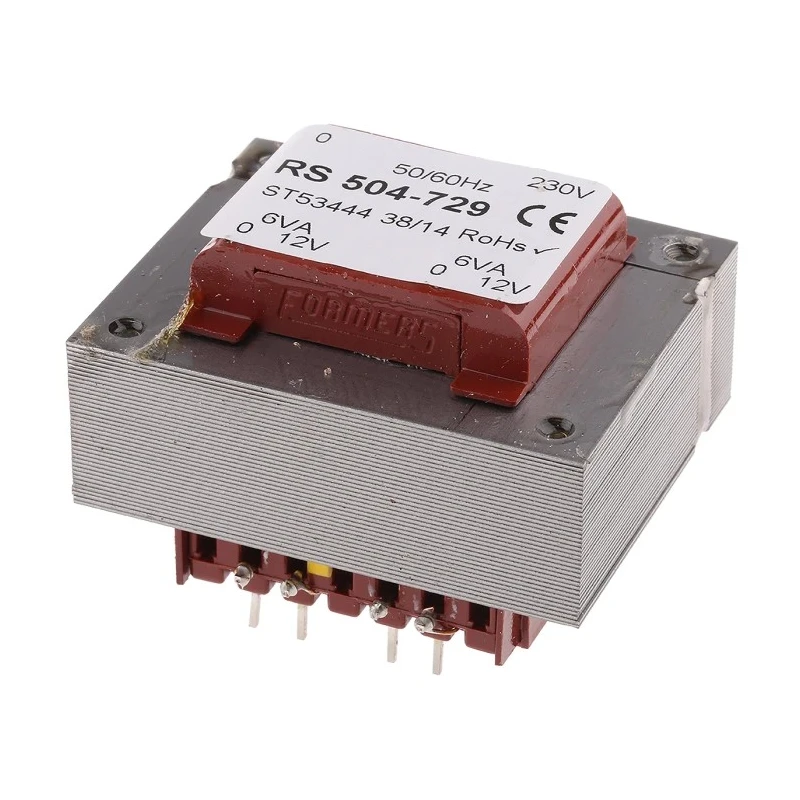

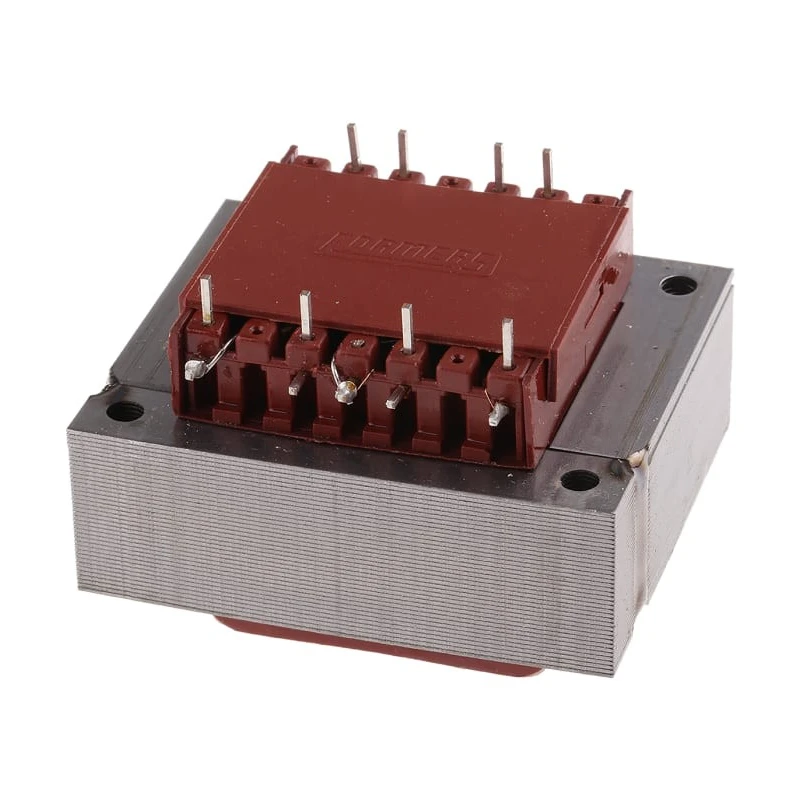

RS PRO 6 to 15 V ac 2 Output Through Hole PCB Transformer 230 V ac Primary 20VA Power 60x54x30.42mm Poland 504-729

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 6 to 15 V ac 2 Output Through Hole PCB Transformer 230 V ac Primary 20VA Power 60x54x30.42mm Poland 504-729

Name: RS PRO 6 to 15 V ac 2 Output Through Hole PCB Transformer 230 V ac Primary 20VA Power 60x54x30.42mm Poland 504-729
Brand: RS PRO
SKU: 164243
Price: 43.96 USD
Availability: InStock



Category PCB Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Efficiency	82%
Length	60mm
Model	504-729
Depth	30.42mm
Gross Weight	500g
Width	54mm
Mount Type	Through Hole
Maximum Operating Temperature	130°C
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	6 to 15 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
RS PRO 12 V ac 2 Output Through Hole PCB Transformer, UKCA, RoHS, CE 12 VABrand	RS PRO

Key Features

Features two output windings suitable for series or parallel connection.
Constructed with flame retardant UL94-V0 materials for enhanced safety.
Equipped with a thermal fuse in the primary winding for overload and short-circuit protection.
Designed according to international safety standards including ASNZS 61558.1 and IECBSEN 615581.
Compact dimensions of 60mm length, 54mm width, and 30.42mm depth for easy PCB mounting.
Efficiency rate of 82% to optimize performance and reduce heat.
Operates reliably across a frequency range of 50Hz to 60Hz.
Full varnish impregnation and double section metric bobbin construction ensure durability.

Product Description

RS PRO model 504-729 is a through hole PCB transformer designed for applications requiring dual outputs voltage ranging from 6 to 15 V ac, with a primary voltage input of 230 V ac. It delivers power up to 20VA and is engineered for reliable mounting on printed circuit boards with compact dimensions of 60mm length, 54mm width, and 30.42mm depth. Manufactured in Poland, this transformer adheres to internationally recognized standards, including ASNZS 61558.1, IECBSEN 615581, CE, RoHS, and ASNZS 61558.6, ensuring high safety and environmental compliance.

This PCB Transformer is built with flame retardant UL94-V0 materials and features a thermal fuse integrated in the primary winding, providing excellent overload and short-circuit protection. Its fully shrouded windings and extra mounting pins facilitate secure PCB installation. The transformer is impregnated with varnish and constructed with a double section metric bobbin for durability and isolation voltage capability of 4kVrms.

The device operates efficiently at 82% efficiency and is suitable for industrial, electronic, and laboratory environments. Its frequency range from 50Hz to 60Hz and maximum operating temperature of 130°C make it ideal for a variety of power supply applications in electronics manufacturing, automation, and testing equipment.

Two independent secondary outputs for flexible connection options. Thermal fuse for enhanced safety and reliability. Compliance with multiple international safety standards and certifications. Compact and robust design for seamless PCB mounting.

Constructed with flame retardant and environmentally compliant materials. High efficiency reduces energy losses and heat generation. Designed and tested according to EN 61558 and EN 60950 standards. Suitable for diverse industrial electronic applications.

Isolated construction ensures user safety and device longevity. Manufactured in Poland, guaranteeing quality control. Explore more transformers and power supply solutions in our extensive Electronics & Electricals category at EnvMart.
