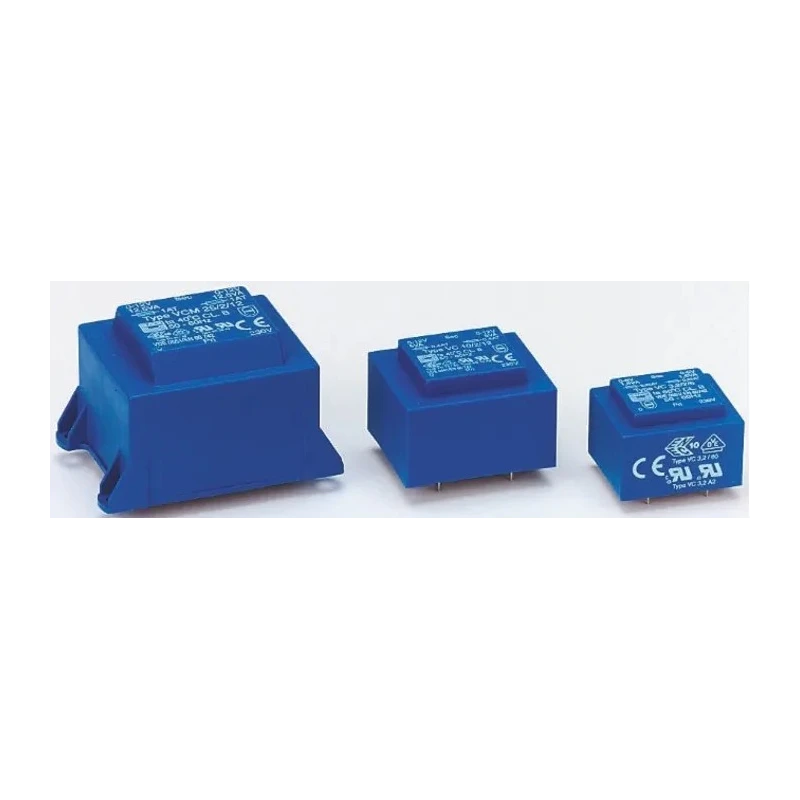

Block PCB Transformer 230 V ac Primary, 6 V ac Secondary, 16 VA Power, Pin Mounting, ENEC 10 (VDE), C-UL-US 16 VARS VC 16/1/6

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 230 V ac Primary, 6 V ac Secondary, 16 VA Power, Pin Mounting, ENEC 10 (VDE), C-UL-US 16 VARS VC 16/1/6

Name: Block PCB Transformer 230 V ac Primary, 6 V ac Secondary, 16 VA Power, Pin Mounting, ENEC 10 (VDE), C-UL-US 16 VARS VC 16/1/6
Brand: Block
SKU: 360635
Price: 29.59 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	76%
Length	57mm
Model	VC 16/1/6
Depth	39mm
Gross Weight	420g
Width	48mm
Mount Type	Pin
Series	VC 16/1/6
Maximum Operating Temperature	40°C
Number of outputs	1
Standards/Approvals	ENEC 10 (VDE), C-UL-US
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	732-0553Brand: BlockManufacturers Part No.: VC 16/1/6
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	6 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Designed for PCB mounting with a pin mount type for secure installation.
Operates efficiently at up to 76% efficiency ensuring reliable power conversion.
Maintains low inter-winding capacitance to reduce electrical noise.
Vacuum resin moulded with UL94-V0 rating for enhanced electrical safety.
Conforms to ENEC 10 (VDE) and C-UL-US approvals for safety and performance.
Rated for a maximum operating temperature of 40°C with frequency range 50 Hz to 60 Hz.
Isolation voltage rated at 5000V for excellent electrical isolation.
Constructed in Germany, ensuring high build quality and durability.

Product Description

Block VC 16/1/6 PCB Transformer is a high-quality electrical component designed for power supply applications requiring 16 VA power output. This transformer features a 230 V ac primary voltage and a 6 V ac secondary voltage with one output, mounted via pins for easy integration onto printed circuit boards.

Its vacuum resin moulded body complies with UL94-V0 flammability rating, ensuring high safety standards. The transformer operates efficiently at 76%, providing reliable voltage conversion with minimal losses. Its low inter-winding capacitance helps reduce electrical noise, making it suitable for sensitive electronic environments.

This model conforms to rigorous standards including ENEC 10 (VDE) and C-UL-US certifications, attesting to its quality and compliance with international safety regulations. It supports operating frequencies from 50 Hz up to 60 Hz and can handle a maximum operating temperature of 40°C.

With an isolation voltage of 5000V, this transformer ensures excellent protection between primary and secondary circuits. Its compact dimensions of 57 mm length, 48 mm width, and 39 mm depth, combined with a manageable weight of 420 grams, make it practical for a range of industrial, laboratory, and commercial electronics applications.

Designed for PCB mounting with secure pin mounts. High efficiency power conversion at 76% efficiency. Low noise operation due to low inter-winding capacitance. Safety rated with UL94-V0 vacuum resin moulding. Certified with ENEC 10 (VDE) and C-UL-US approvals.

Reliable operation within 40°C max temperature. Strong electrical isolation rated at 5000V. Compact size suitable for various electronic devices. Constructed in Germany with premium quality standards.

This PCB transformer is ideal for use in industrial automation, electronic instrument power supplies, HVAC control systems, and other precision electrical applications. It ensures stable and safe power conversion compliant with international standards.
