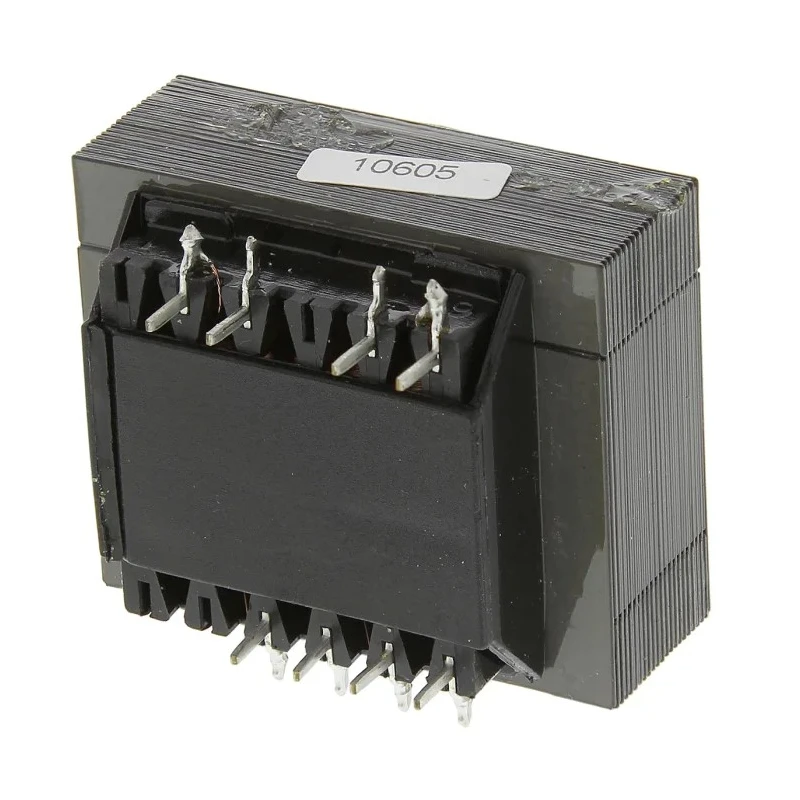

RS PRO 5 to 24 V AC 2 Output Through Hole PCB Transformer, Dual Secondary Winding, 12VA, 230 V AC Primary, 43x36x33 504-559

The RS PRO 504-559 Model is a high-quality 5 to 24 V AC 2 Output Through Hole PCB Transformer designed for stable and efficient voltage transformation in electronic assemblies. Featuring a 230 V AC primary voltage and dual secondary windings, this transformer provides versatility for a variety of electronic and industrial applications.

Its fully shrouded bobbin construction and dual section metric bobbin design ensure enhanced electrical insulation and durability. With extra pins, it offers secure and reliable through-hole mounting on printed circuit boards.

The transformer operates reliably within a temperature range up to 130°C, making it suitable for demanding environments. It is tested rigorously according to standards such as BS3535 and EN 60742, ensuring compliance with international safety and performance criteria. The product is RoHS compliant and certified under AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, AS/NZS 61558.1, and CE standards.

Its compact form factor with dimensions of 43 mm length, 36 mm width, and 33 mm depth allows for integration into limited space applications. The unit weighs approximately 400 grams, balancing robustness with manageable weight for PCB installations.

This transformer supports a minimum operating frequency of 50 Hz and a maximum of 60 Hz, making it suitable for most power supply requirements. Its dual secondary outputs may be connected in series or parallel to achieve a wide range of voltage and current configurations, enhancing flexibility in design.

Industrial sectors such as power supplies, manufacturing equipment, electronic instrumentation, and other control systems benefit from its reliable performance and adherence to safety standards. This product is ideal for laboratories, manufacturing lines, and commercial electronic devices requiring efficient voltage transformation.

Equipped with a 230 V AC primary voltage and dual secondary outputs ranging from 5 to 24 V AC. Constructed with fully shrouded bobbins and extra pins for secure PCB mounting. Operates safely up to a maximum temperature of 130°C.

Complies with standards including AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, RoHS, and CE. Compact dimensions of 43 mm length, 36 mm width, and 33 mm depth for easy integration into circuits. Tested according to BS3535 and EN 60742 to ensure quality and safety.

Weight of approximately 400 grams with through-hole mount type for stability. Explore our full range of PCB Transformers and power supplies at EnvMart to find suitable components for your industrial and electronic assembly needs.
