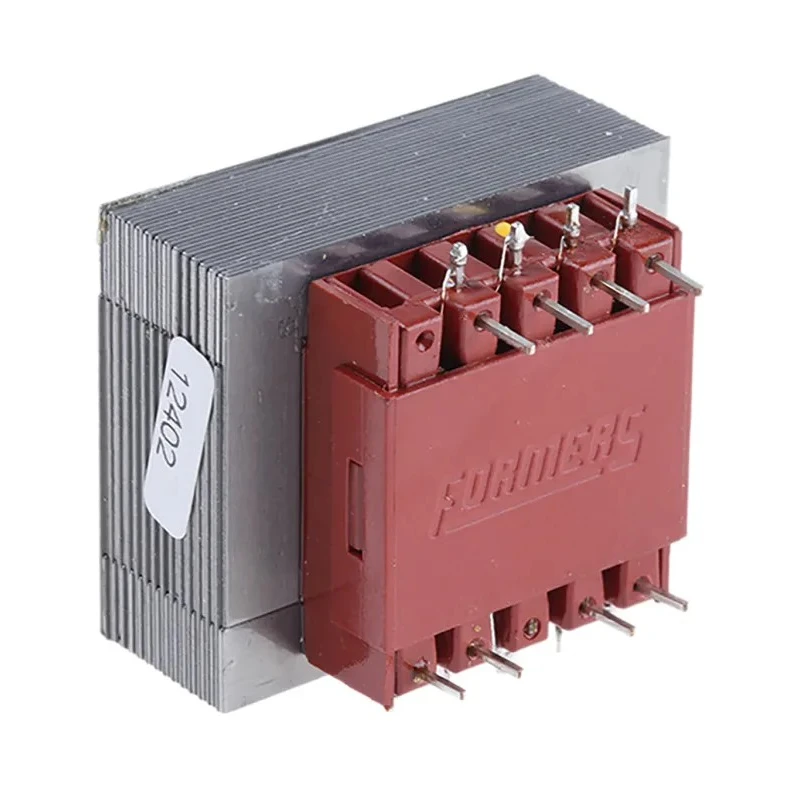

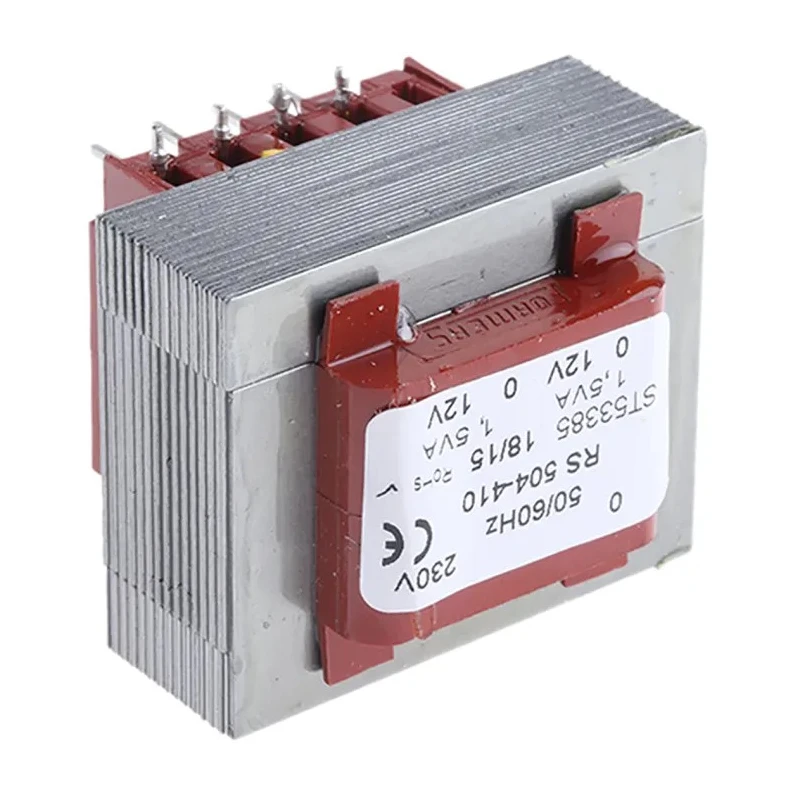

RS PRO 6 to 15 V AC 2 Output Through Hole PCB Transformer, 20VA Power, 230 V Primary, Flame Retardant, Thermal Fuse 504-410

RS PRO 504-410 is a 2 output through hole PCB transformer suitable for various electronic and electrical power supply applications. It delivers secondary voltages of 6 to 15 V AC from a 230 V AC primary input, with a power rating of 20 VA.

This transformer is designed for PCB mounting, featuring through hole pins and extra pins for secure board placement. Flame retardant materials rated to UL94-V0 and a built-in thermal fuse in the primary winding provide enhanced safety against overloads and short circuits.

It offers an efficiency of 82% and can operate reliably at temperatures up to 130°C. The transformer conforms to multiple standards including CE, AS/NZS 61558.2.6, IEC/BS/EN 61558-1, and RoHS directives, ensuring product safety and environmental compliance.

The construction includes a double section metric bobbin and full varnish impregnation, with fully shrouded windings to improve insulation and durability. Its open frame laminated design supports long-term operational stability in industrial and manufacturing environments.

Independent secondary windings allow flexible configurations by connecting in series or parallel to meet different output requirements. The transformer is ideal for use in industrial electronic equipment, power supplies, HVAC control systems, and instrumentation boards.

The transformer features flame retardant UL94-V0 materials for enhanced fire safety. Incorporates a thermal fuse for automatic protection against overload conditions. Fully shrouded windings offer superior insulation and durability.

Designed for secure through hole PCB mounting with additional pins for stability. Conforms to CE and multiple international safety and quality standards. Operates efficiently at 82% with a maximum temperature rating of 130°C.

Supports flexible secondary voltage configurations through series or parallel connections.

RS PRO 504-410 PCB Transformer is a reliable solution for powering low voltage AC circuits in industrial, commercial, and laboratory settings. Explore similar transformers and power components to complete your electronic design projects at EnvMart.
