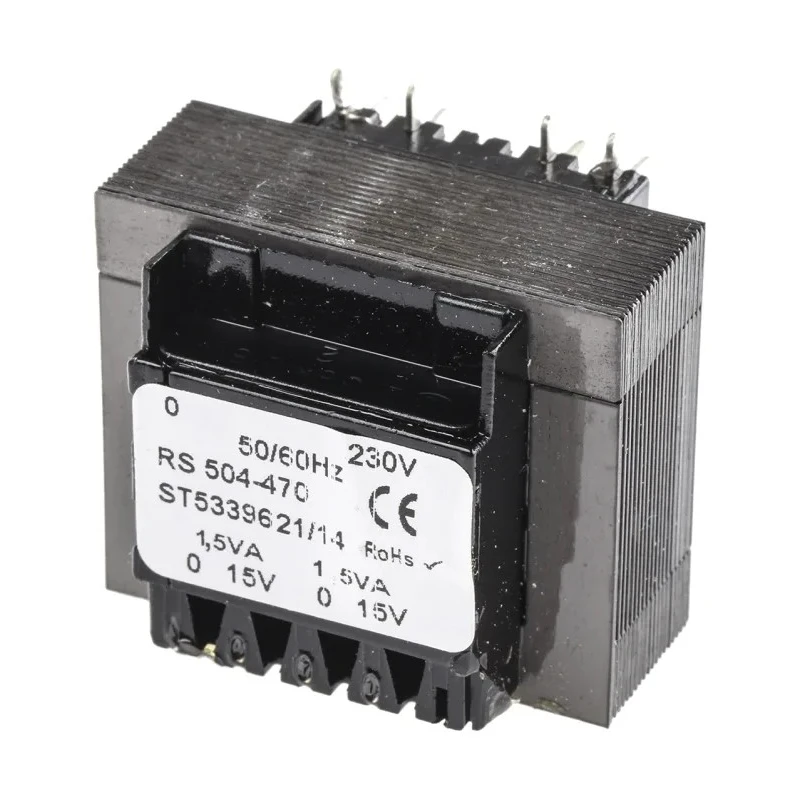

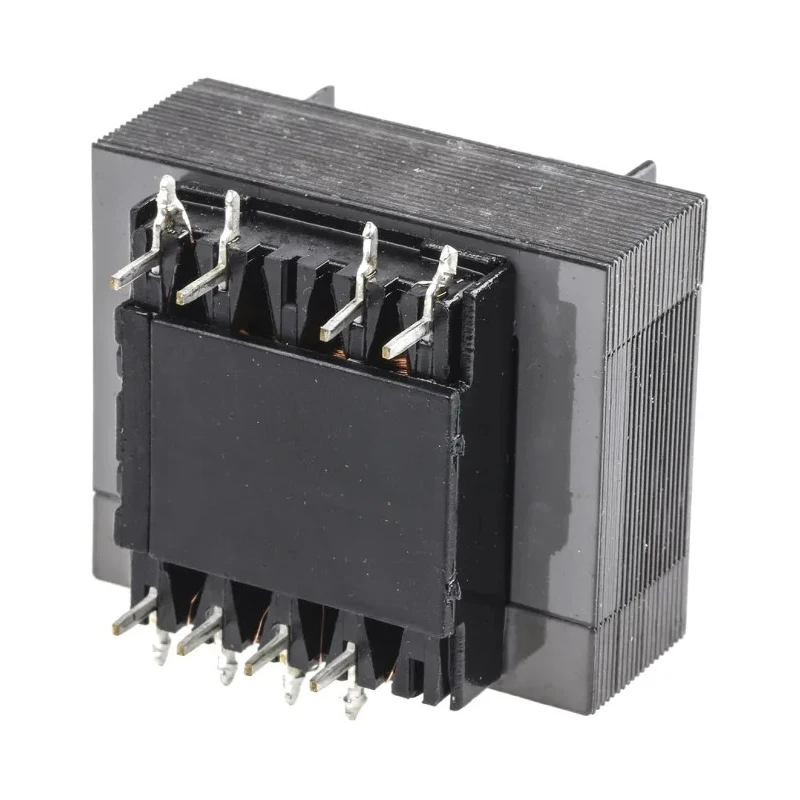

RS PRO Through Hole PCB Transformer 5 to 24 V ac 2 Output 12VA 230 V ac Primary 504-470

RS PRO 504-470 Through Hole PCB Transformer is a high-quality device engineered for safe and reliable AC voltage transformation, suitable for industrial and commercial electronic applications. Featuring a primary voltage rating of 230 V ac, it supplies secondary voltages between 5 to 24 V ac with two independent outputs to support versatile circuit designs.

This PCB transformer employs fully shrouded bobbins with extra pins for secure fixing on the circuit board, contributing to robust mechanical stability. It is rated at 12VA power capacity, capable of operating at temperatures up to 130°C, and offers an isolation voltage of 4kVrms that meets demanding electrical safety requirements.

It is manufactured in Poland and complies with multiple global safety and environmental standards such as ASNZS 61558..6, ASNZS 61558.1, CE marking, RoHS directives, IECBSEN 615581, and IECBSEN 615586, confirming its quality and conformity.

The transformer dimensions are compact at 38mm in length, 45mm in width, and 30.41mm in depth, facilitating easy integration into PCB designs where space efficiency is critical. Operating within frequency limits of 50 to 60Hz, it ensures reliable power distribution in various electronic circuits.

This transformer operates at a primary voltage of 230 V ac and a power rating of 12VA. It has two output windings with secondary voltage ranging from 5 to 24 V ac for flexible applications. Fully shrouded bobbin construction improves safety and mounting security on PCBs.

Electrical and flash tested, it guarantees high reliability and safety in daily operation. Compliant with multiple international standards and environmental regulations. Compact size and through-hole mount type allow easy incorporation into PCBs.

Isolation voltage of 4kVrms meets stringent industrial electrical safety requirements. Made in Poland, reflecting high manufacturing standards.

This PCB Transformer is ideal for industrial, laboratory, manufacturing, and HVAC systems requiring dependable power supply and protection. It can be integrated into circuits for power supplies, electronic devices, and control systems ensuring stable voltage output and safety.
