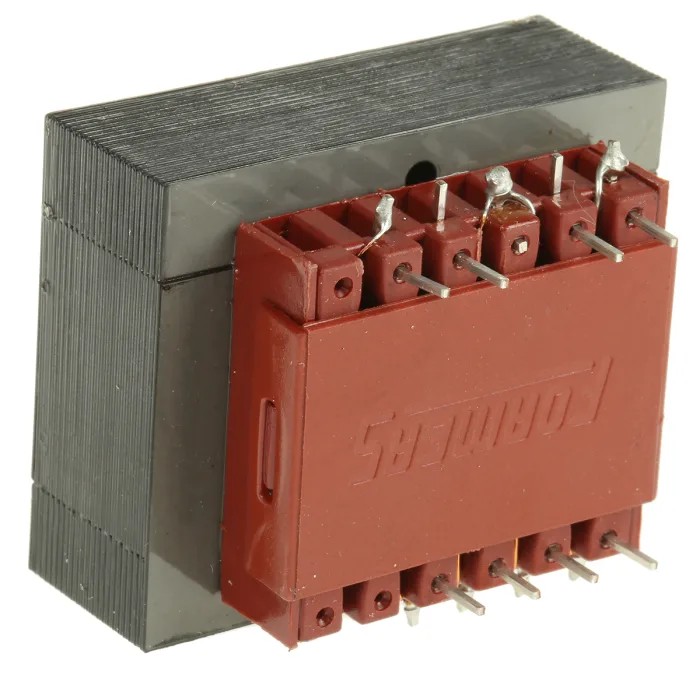

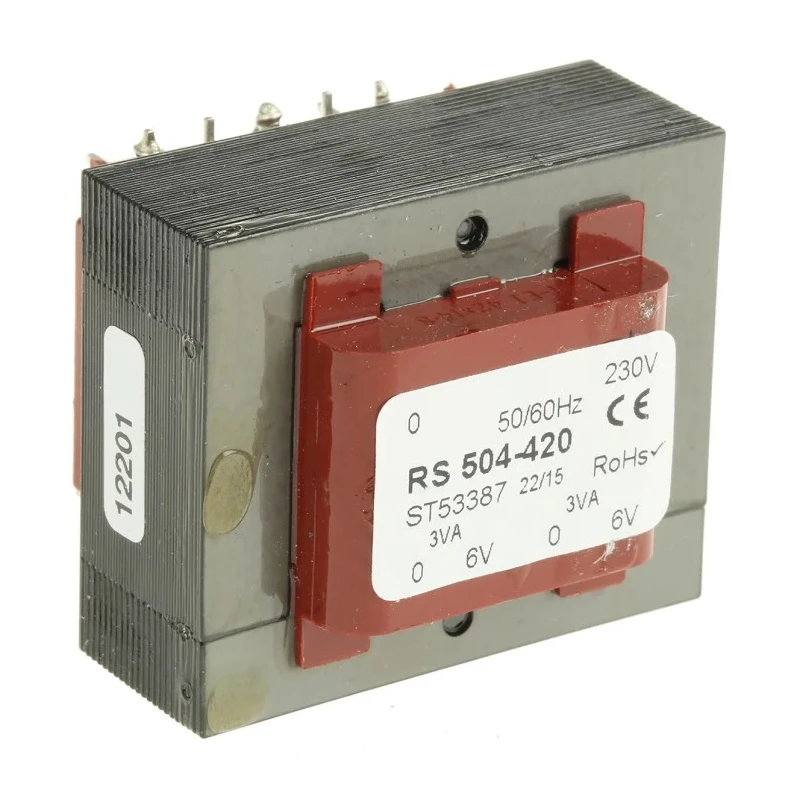

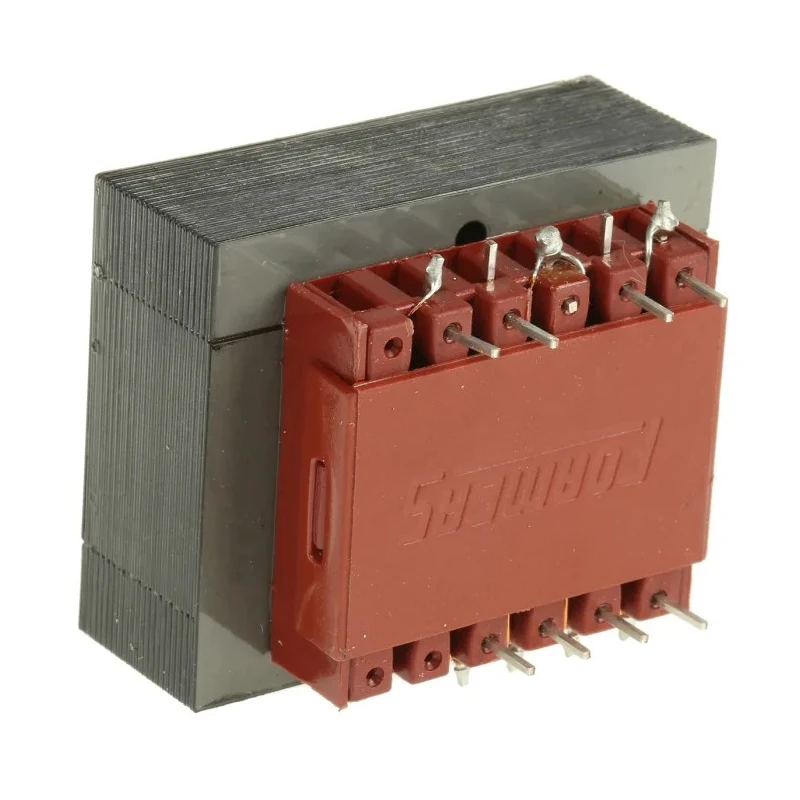

RS PRO 6 to 15 V AC 2 Output Through Hole PCB Transformer AS/NZS 61558.2.6 IEC/BS/EN 61558-2-6 CE 230 V AC 20VA 504-420

RS PRO 504-420 is a high-quality 6 to 15 V AC 2 Output Through Hole PCB Transformer suitable for various electronic applications requiring reliable power conversion and isolation. The transformer operates at a primary voltage of 230 V AC and delivers a power output of 20VA with an efficient 82% rating. Designed for PCB mounting, it features through-hole pins that ensure secure installation and stable mechanical strength in the circuit assembly.

Constructed from flame retardant materials compliant with UL94-V0, the transformer includes a thermal fuse in the primary circuit to offer protection against overloads and short circuits, enhancing safety and durability. Its compact size with dimensions of 43 mm (L) x 36 mm (W) x 33 mm (D) facilitates use in tight PCB layouts while weighing just 500 grams. The device withstands operating temperatures up to 130°C, making it suitable for demanding industrial and commercial environments.

RS PRO 504-420 complies with international safety and performance standards including AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, CE marking, and RoHS directives, ensuring dependable quality and environmental compliance. The transformer’s secondary windings can be connected in series or parallel to provide versatile output voltage and current configurations.

This PCB transformer is ideal for use in industrial controls, power supplies, instrumentation, and other electrical equipment requiring reliable voltage transformation with safety isolation. It supports frequencies from 50 Hz to 60 Hz, meeting standard electrical supply conditions globally.

Secondary voltage range of 6 to 15 V AC tailored for diverse circuit requirements. Primary voltage rating at 230 V AC ensuring compatibility with standard mains supply. Through-hole mount type allowing secure and stable PCB integration.

Boasts a power capacity of 20VA with an 82% efficiency rating for optimal performance. Operating temperature maximum up to 130°C suitable for demanding industrial environments. Constructed with flame retardant materials achieving UL94-V0 standard for safety.

Equipped with a thermal fuse in the primary winding for overload and short circuit protection. Certified to AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, CE, RoHS standards ensuring quality and compliance. Compact dimensions of 43 mm length, 36 mm width, and 33 mm depth for space-efficient designs.

Weighs 500 grams for easy handling and minimal PCB load. Explore more from the RS PRO range of PCB Transformers, known for precision engineering and durability to meet industrial requirements.
