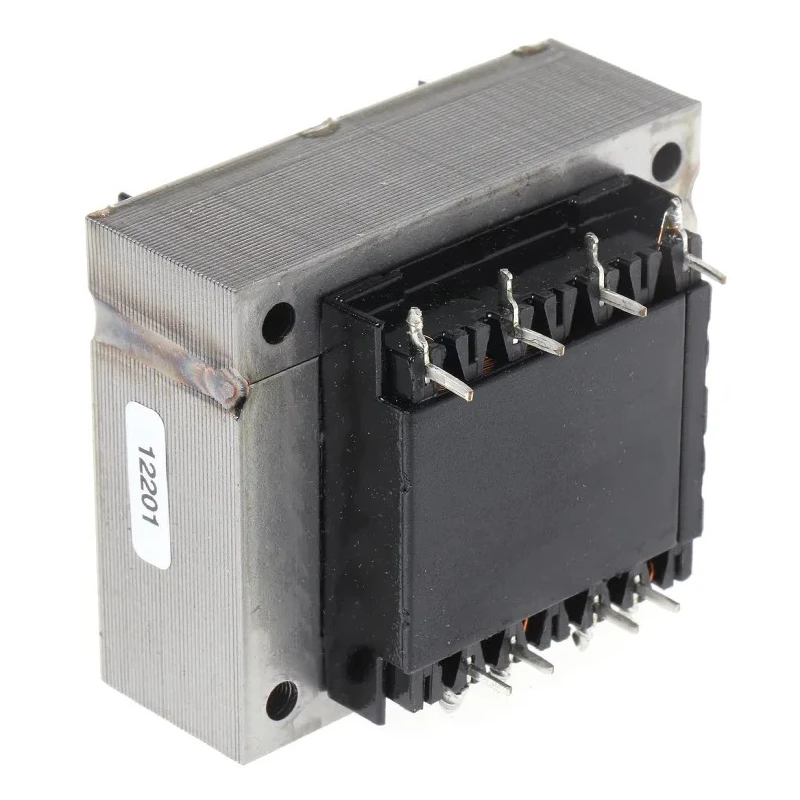

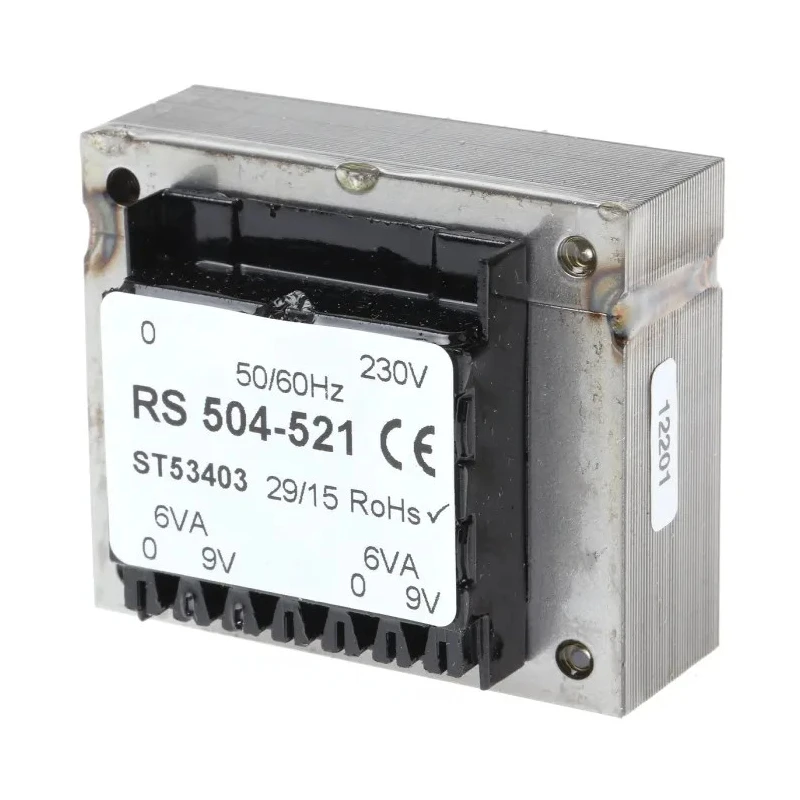

RS PRO 5 to 24 V ac 2 Output Through Hole PCB Transformer, RoHS, CE, IEC/BS/EN 61558-2-6, AS/NZS 61558.1, IEC/BS/EN 504-521

Name: RS PRO 5 to 24 V ac 2 Output Through Hole PCB Transformer, RoHS, CE, IEC/BS/EN 61558-2-6, AS/NZS 61558.1, IEC/BS/EN 504-521
Brand: RS PRO
SKU: 396567
Price: 42.84 USD
Availability: InStock



Category PCB Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	54mm
Model	504-521
Depth	41mm
Gross Weight	400g
Width	45mm
Mount Type	Through Hole
Maximum Operating Temperature	130°C
Number of outputs	2
Primary Voltage	230 V ac
Secondary Voltage	5 to 24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Walsall Transformers 9V ac 2 Output Through Hole PCB Transformer, 12VABrand	Walsall Transformers

Key Features

Designed for 230 V ac primary voltage with secondary voltage ranging from 5 to 24 V ac.
Features two independent outputs with through-hole PCB mount for secure installation.
Constructed with fully shrouded bobbins and extra pins to ensure stable board mounting.
Tested to comply with RoHS, CE, IEC/BS/EN 61558-2-6, AS/NZS 61558.1, and IEC/BS/EN 61558-1 standards.
Operates reliably within a temperature range up to 130°C at 50-60 Hz frequency.
Compact dimensions of 54 mm length, 45 mm width, and 41 mm depth fit standard PCB layouts.
Isolation voltage rated at 4kVrms enhances electrical safety.
Fully varnish impregnated construction ensures durability and performance stability.

Product Description

RS PRO 504-521 5 to 24 V ac 2 Output Through Hole PCB Transformer is an efficient and reliable transformer designed to deliver 12VA power with two independent outputs suitable for various industrial and electronic applications. It operates on a 230 V ac primary voltage with secondary voltages adjustable from 5 to 24 V ac, making it versatile for power supply circuits and control systems.

This PCB transformer features fully shrouded bobbins with extra pins, ensuring secure and stable mounting on through-hole PCB boards. The transformer is fully varnished and impregnated to protect against environmental factors and to maintain electrical integrity during prolonged use.

Tested and certified to meet strict international standards including RoHS, CE, IEC/BS/EN 61558-2-6, AS/NZS 61558.1, and IEC/BS/EN 61558-1, this transformer ensures compliance with safety and environmental regulations. It has a maximum operating temperature of 130°C and operates within a 50 to 60 Hz frequency range, suitable for most AC power systems.

The transformer incorporates a 4kVrms isolation voltage rating which enhances electrical insulation and safety. Compact dimensions (54 mm length x 45 mm width x 41 mm depth) and a lightweight 400 g design make it suitable for space-constrained PCB assemblies without compromising on performance.

This product is ideal for industrial, manufacturing, commercial electronics, and power supply applications requiring stable AC voltage transformation with safety compliance and durability. Its manufacture in Poland ensures consistent quality and reliability.

Designed for versatile AC voltage power supply applications. Compact and lightweight for PCB mounting convenience. Meets multiple international safety and environmental standards. High electrical isolation for enhanced safety.

Wide operating temperature and frequency range. Choose RS PRO PCB Transformers in EnvMart for trusted electronic component solutions that meet stringent industrial standards.
