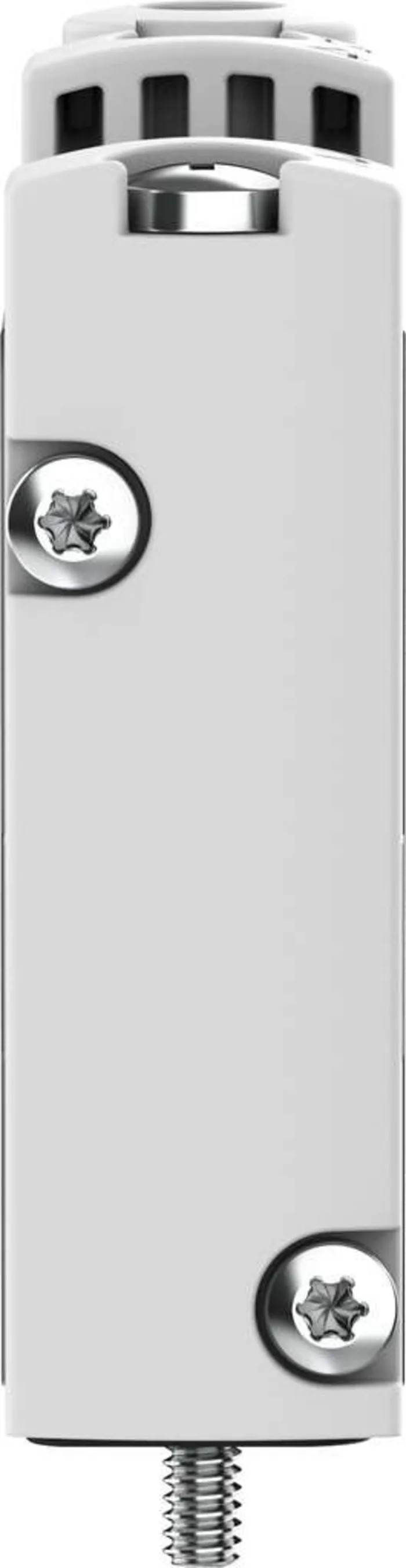

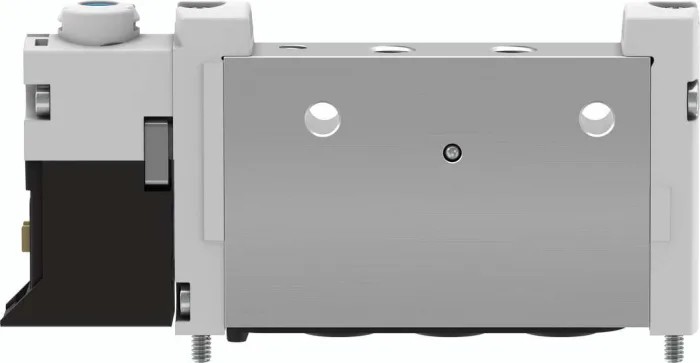

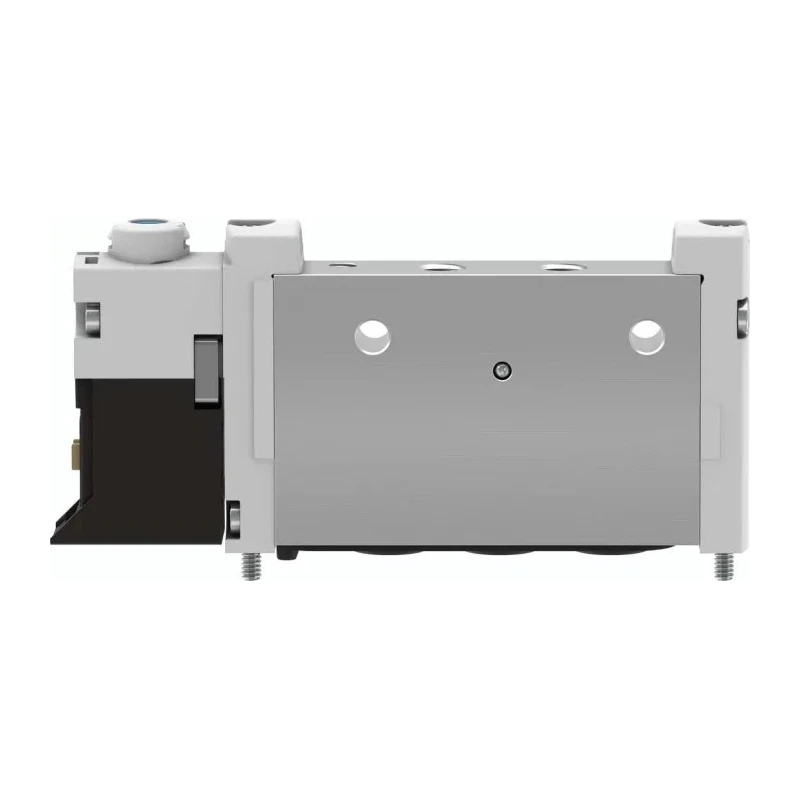

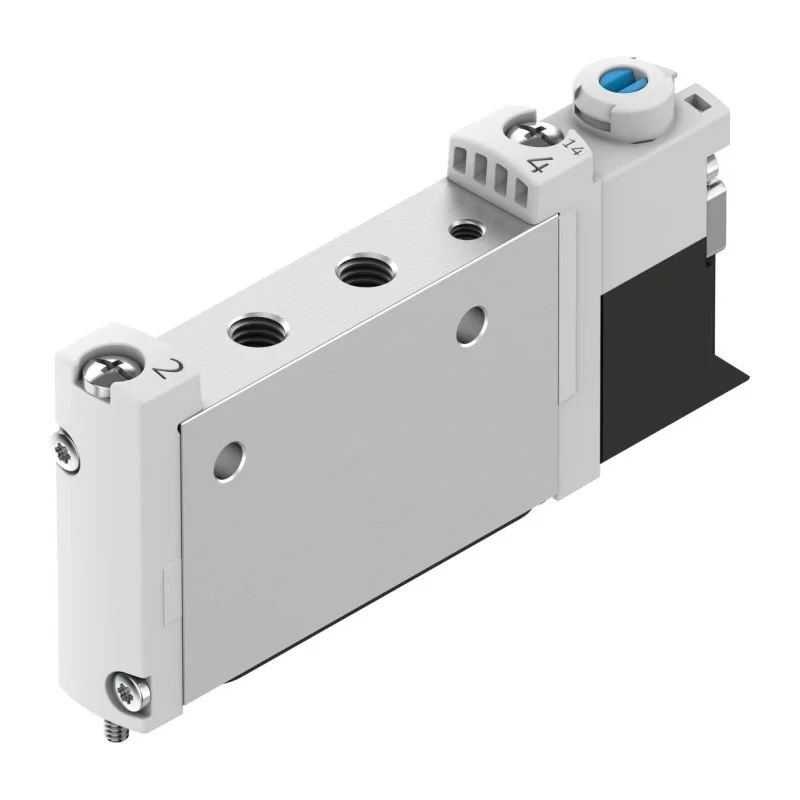

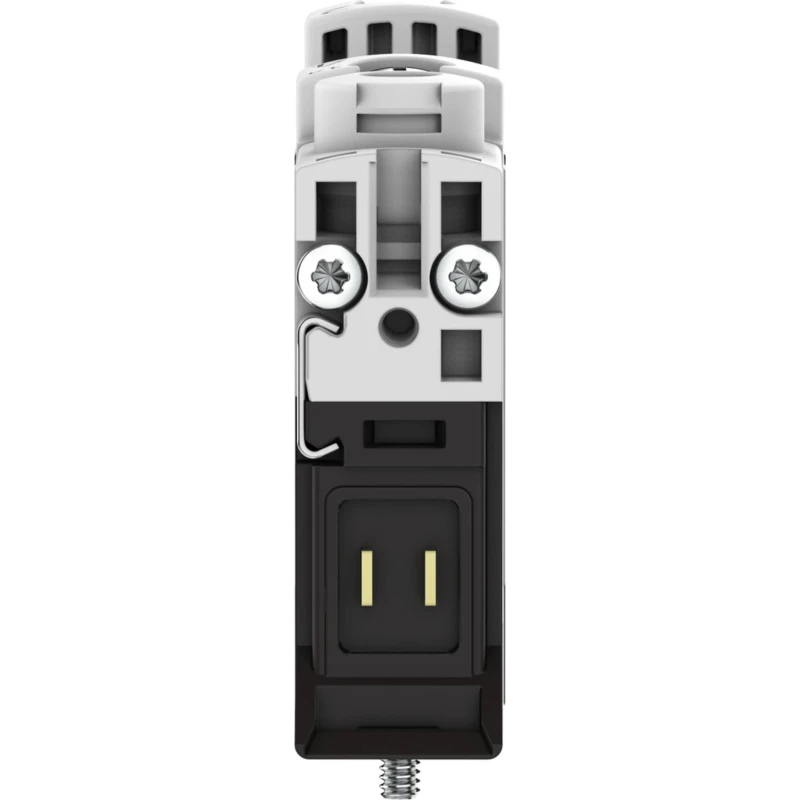

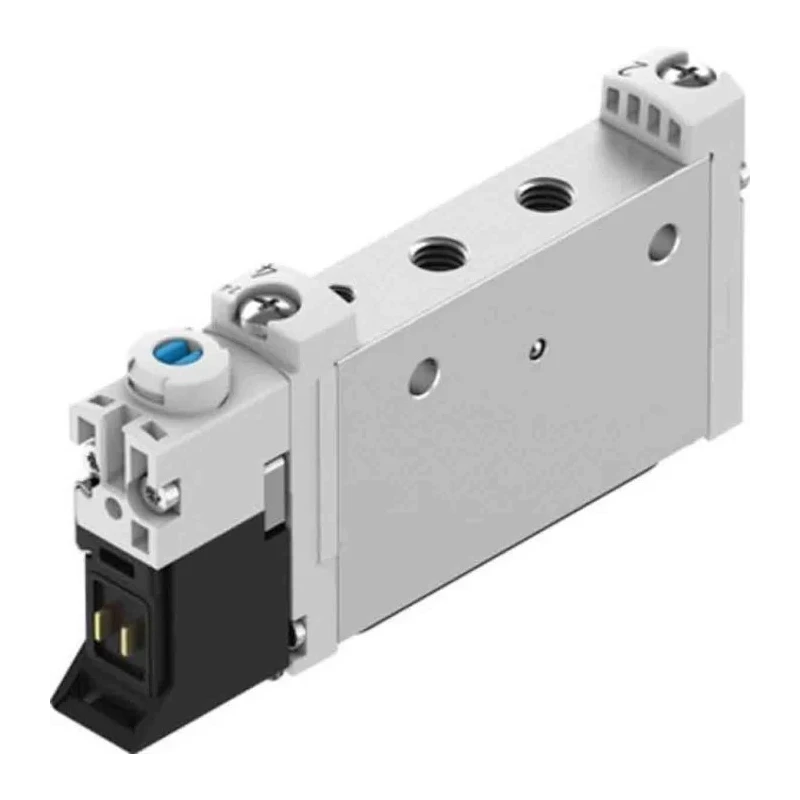

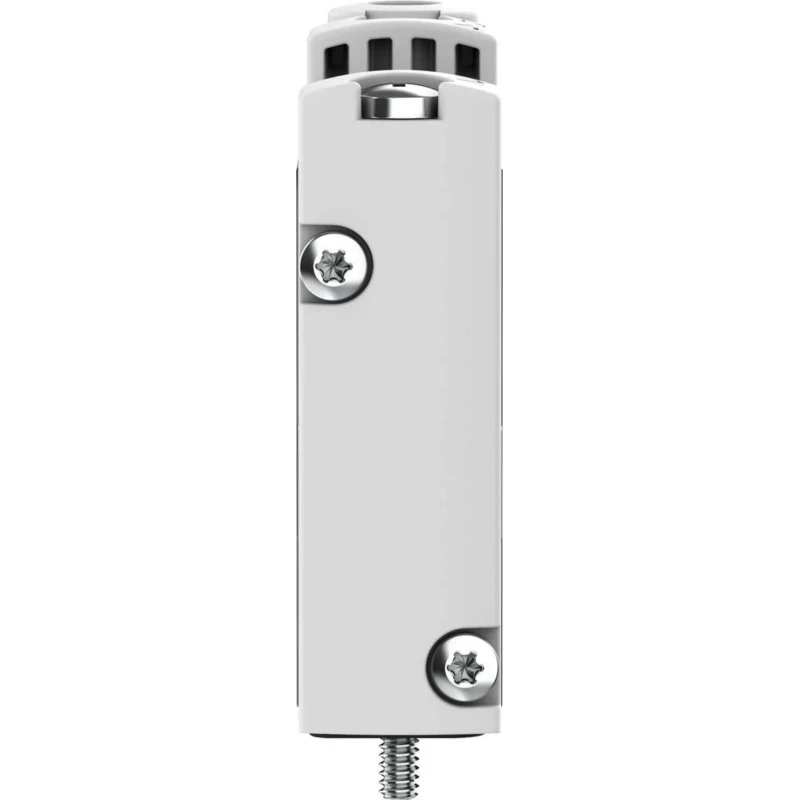

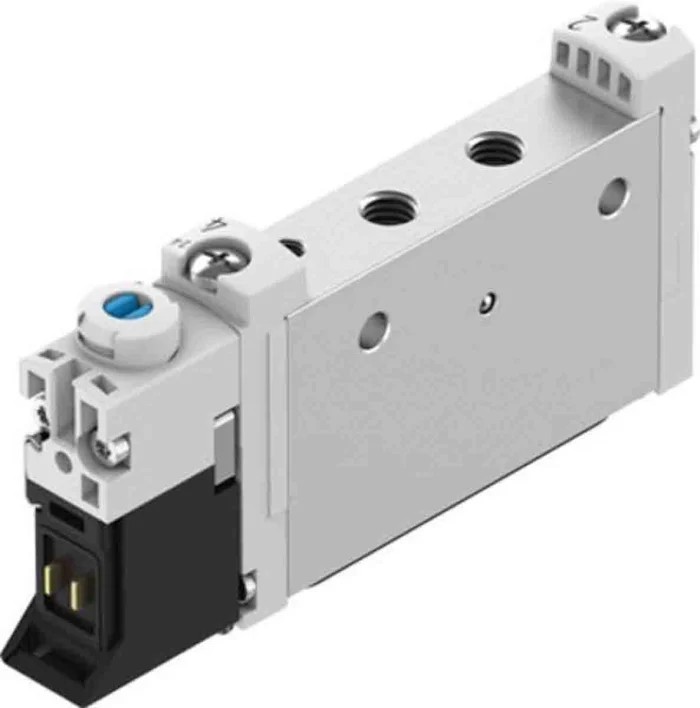

Festo Solenoid Valve 5/2 Monostable Electric Metric M5 Port 24V 1W Wrought Aluminium Alloy VUVG-L10-M52-RT-M5-1P3
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 24V |
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 8 bar |
| Model | VUVG-L10-M52-RT-M5-1P3 |
| Width | 10mm |
| Mount Type | Manifold |
| Series | VUVG-L10-M52-RT-M5-1P3 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 60°C |
| Port Type | Pneumatic |
| Number of Positions | 2 |
| Port Size | M5 |
| Seal Material | Nitrile Rubber (NBR) |
| Minimum Operating Temperature | -5°C |
| Actuation Type | Electric |
| Maximum Flow Rate | 220L/min |
| Standards/Approvals | RCM c CSA us (OL) c UL us |
| Connection Thread Standard | Metric |
| Minimum Pilot Pressure | 2.5bar |
| Valve Function | 5/2 Monostable |
| Electrical Connection Type | Electrical Connection Plate |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 1W |
Key Features
- Compact solenoid valve designed for pneumatic systems with 5 ports.
- Manifold mount type with electrical connection plate for ease of installation.
- Operates at maximum pressure of 8 bar and pilot pressure range 2.5 to 8 bar.
- Constructed from wrought aluminium alloy with nitrile rubber seals for durability.
- Suitable for industrial environments with temperature tolerance from -5°C to 60°C.
- High flow rate capability of 220 L/min ensures efficient airflow control.
- Valve function is 5/2 monostable with two positions and soft-sealing principle.
- Complies with RCM, CSA, and UL standards for safety and quality assurance.
Product Description
Festo VUVG-L10-M52-RT-M5-1P3 solenoid valve is a compact, high-performance pneumatic valve designed for precise airflow control in industrial pneumatic systems. This 5/2 monostable valve features an electric actuation method optimized for 24V operation with a power consumption of just 1W, ensuring energy efficiency.
Its manifold mounting style and electrical connection plate simplify integration into existing systems. The valve body is made from durable wrought aluminium alloy, combined with nitrile rubber (NBR) seals that provide excellent resistance to wear and medium-pressure water jets, suitable for demanding industrial and outdoor environments.
Operating within a pressure range of 2.5 to 8 bar and an ambient temperature range of -5°C to 60°C, the valve supports robust system performance. The compact size with a 10mm body width and metric M5 connection port makes it space-saving without compromising flow capacity, handling up to 220 liters per minute.
The 5/2 valve function with two positions and internal air piloting, combined with a piston slide design and mechanical spring reset, delivers fast and reliable actuator response. This valve includes a throttleable exhaust air function and a soft-sealing principle for enhanced efficiency and noise reduction.
Compact pneumatic solenoid valve with high flow capability. Manifold mount with electric actuation and M5 metric ports. Durable aluminium alloy body with nitrile rubber seals. Operating pressure between 2.5 and 8 bar suitable for varied industrial uses.
Temperature range from -5°C to 60°C for versatile environment tolerance. Compliant with RCM, CSA, and UL safety and quality standards. Designed for reliable and rapid actuator control.
This solenoid valve is ideal for applications in industrial automation, manufacturing lines, fluid power control, HVAC systems, and other pneumatic operations requiring dependable and efficient valve functionality. Festo's expertise ensures durability and performance in demanding conditions. Explore the Pneumatic Solenoid Valves category at EnvMart to find this and compatible accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this solenoid valve is 8 bar.
This model has a maximum flow rate capability of 220 liters per minute.
It uses electric actuation with a power consumption of 1 watt.
The valve operates within a temperature range of -5°C to 60°C.
This solenoid valve features 5 ports.
The valve body is made from wrought aluminium alloy, and it has nitrile rubber seals.
It has a 5/2 monostable valve function with two positions.
This model is designed for manifold mounting.
The electrical connection type is an electrical connection plate.
It complies with RCM, CSA, and UL standards for safety and quality assurance.
The minimum pilot pressure required for operation is 2.5 bar.
The width of the valve body is 10 mm.
