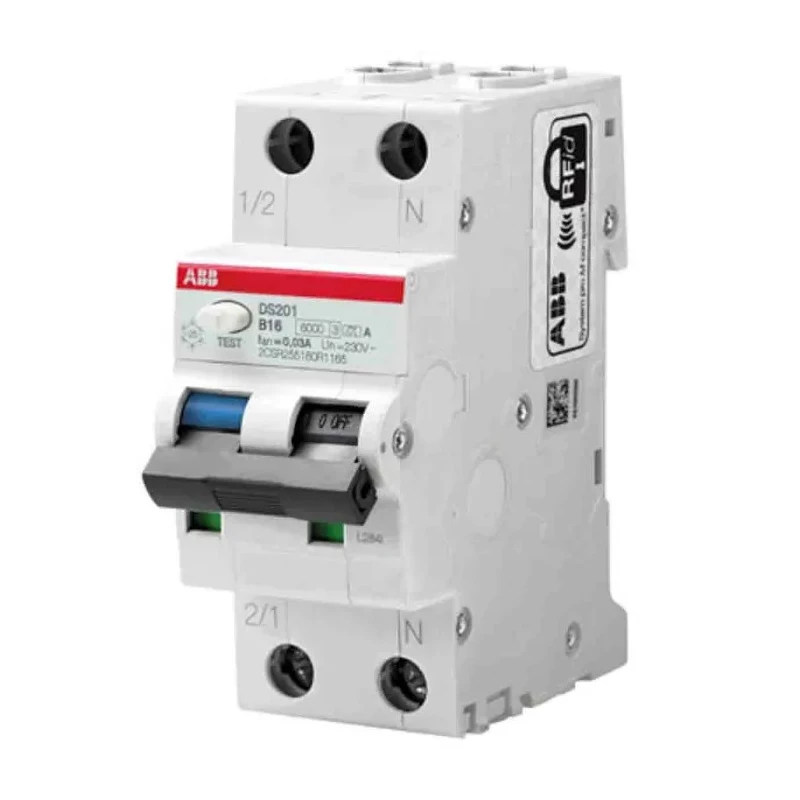

ABB Residual Current Circuit Breaker with Overload Protection 16A Current Rating 2-Pole 30 mA Trip Sensitivity DS201

ABB DS201 Residual Current Circuit Breaker with Overload Protection, model 2CSR255180R1165 B16 A30, is designed for safe and reliable protection of single-phase electrical circuits. It offers a current rating of 16A with a 2-pole configuration, suited for residential, commercial, and automation system applications.

This device integrates a thermal magnetic tripping mechanism with 30 mA trip sensitivity to quickly disconnect the circuit in case of earth faults, significantly reducing the risk of electric shock. The high breaking capacity of 10kA ensures that the device can safely interrupt fault currents without damage to the electrical system.

The Type B tripping characteristic provides robust protection against sinusoidal and direct currents, making it versatile for various installations. The compact dimensions (85mm height, 69mm width, 69mm depth) allow easy installation on standard DIN rails with secure screw terminals ensuring reliable electrical connections.

The toggle switch reset actuator facilitates straightforward manual resetting after tripping, which simplifies maintenance and reduces downtime. The product conforms to IEC and RoHS standards, guaranteeing compliance with international safety and environmental regulations. Manufactured in Italy, this RCBO reflects superior quality and craftsmanship.

Typical applications include protection of single-phase circuits in residential settings, automation systems, commercial buildings, and equipment requiring both overload and short-circuit protection. Its rugged design and technical features make it suitable for demanding industrial and commercial environments.

Offers short circuit and overload protection in single-phase circuits. Features 30 mA trip sensitivity to prevent earth faults and electric shock. High breaking capacity of 10kA ensures reliable interruption of fault currents.

Type B tripping characteristics protect against sinusoidal and direct currents. Compact DIN rail mount design with dimensions 85mm height, 69mm width, and 69mm depth. Thermal magnetic tripping mechanism for dependable operation.

Screw terminal connections for secure wiring. Reset actuator is a toggle switch for easy manual resetting. Certified to IEC and RoHS standards for quality and compliance. Country of origin is Italy, ensuring high manufacturing standards.
