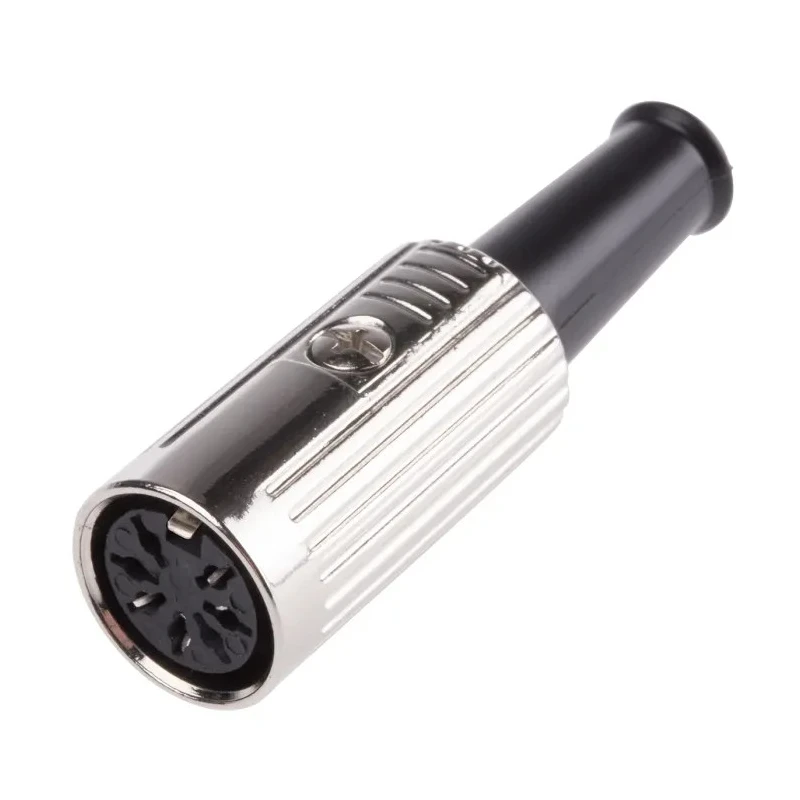

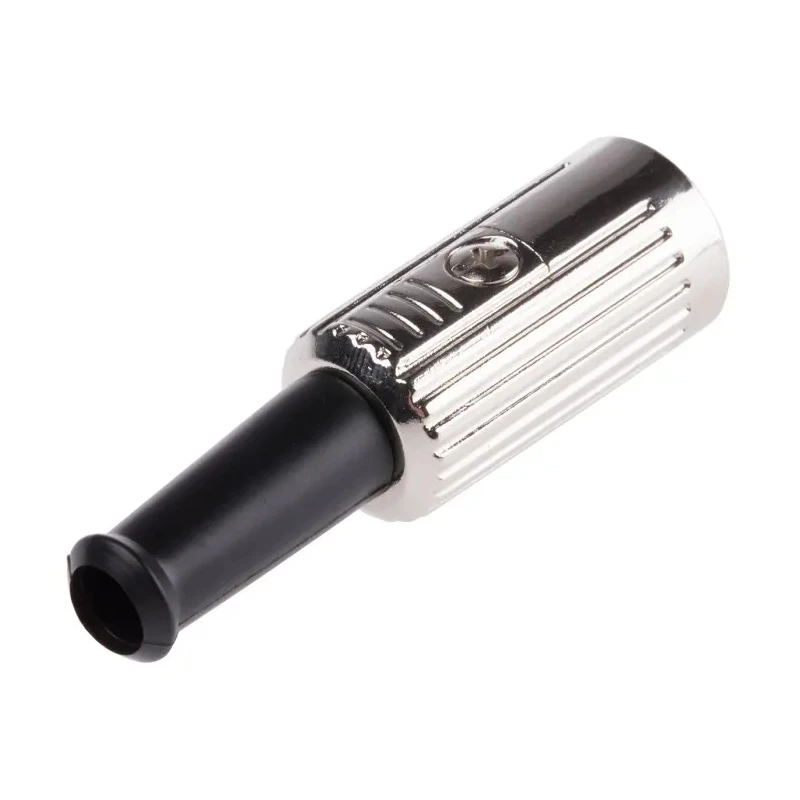

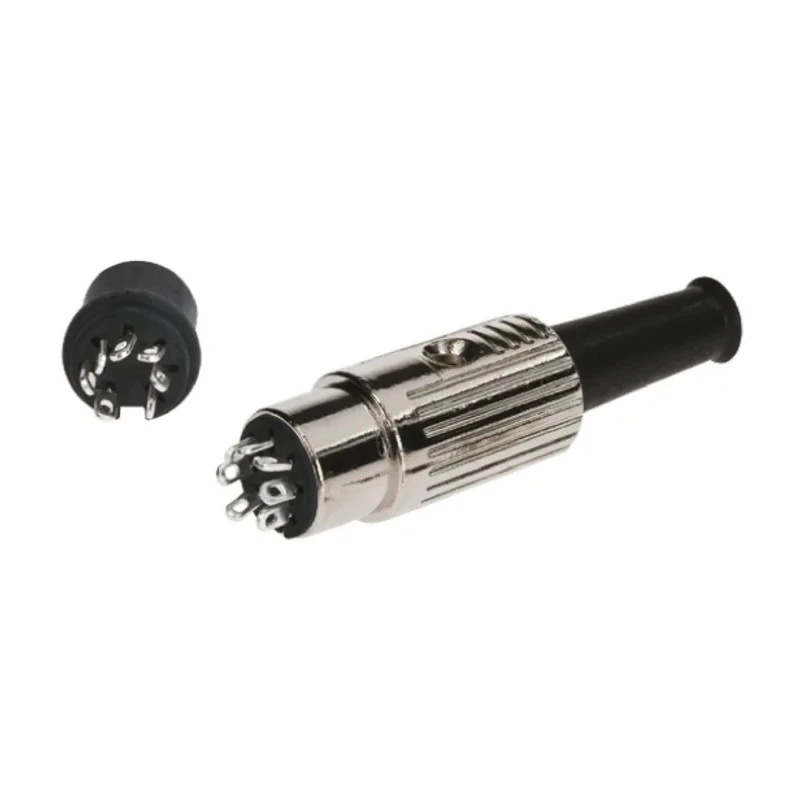

RS PRO 7 Pole Straight Standard DIN Socket, 4A Current, 100V AC Voltage, Push Lock Cable Female Connector 491-229

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 7 Pole Straight Standard DIN Socket, 4A Current, 100V AC Voltage, Push Lock Cable Female Connector 491-229

Name: RS PRO 7 Pole Straight Standard DIN Socket, 4A Current, 100V AC Voltage, Push Lock Cable Female Connector 491-229
Brand: RS PRO
SKU: 163155
Price: 5.16 USD
Availability: InStock



Category DIN Connectors Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	100V ac
Brand	RS PRO
Orientation	Straight
Current	4A
Model	491-229
Mount Type	Cable
Housing Material	ABS
Contact Material	Brass
Series	RS PRO
Insulation resistance	100MΩ at 500V DC min
Rating	100V AC 4A max
Voltage Withstand	250V AC for 1 minute
Shield Type	Shielded
Contact Resistance	Pins 30mΩ max. Shell 50mΩ max
Pole Format	7
Contact Plating	Silver
Number of Contacts	7
Contact Gender	Female
Connector Gender	Female
Mating Type	Push Lock
Connector Size	Standard
Set screw and 'T' holder	Steel Nickel Plated
RS PRO 7 Pole Din, 4A, Female, Cable MountBrand	RS PRO

Key Features

Constructed with a durable ABS housing and zinc alloy shield cover for robust protection.
Equipped with silver plated brass contacts ensuring reliable conductivity and corrosion resistance.
Screened design includes a cable clamp with PVC support sleeve for stable cable retention.
Rated for 100V AC and 4A max current with voltage withstand of 250V AC for 1 minute.
Contact resistance is low with pins at 30mΩ max and shell at 50mΩ max for efficient performance.
Insulation resistance maintains 100MΩ at 500V DC minimum to prevent leakage.
Designed with 7 poles in a straight orientation, suitable for various industrial electrical applications.
Plug type is female with push lock mating ensuring secure and easy connection and disconnection.

Product Description

RS PRO 491-229 7 Pole Straight Standard DIN Socket is a high-quality female cable mount circular connector designed for reliable electrical connections in industrial and commercial applications. Rated at 4A current and 100V AC voltage, this DIN socket provides robust performance through its ABS housing and zinc alloy shield cover, which offers excellent mechanical protection and shielding against interference.

The connector features silver plated brass contacts that ensure excellent conductivity while resisting corrosion. Its screened DIN design incorporates a cable clamp and a PVC support sleeve to secure cables firmly and prevent strain.

With seven poles configured in a straight orientation, this RS PRO DIN socket is engineered to provide a secure mating using a push lock mechanism, facilitating easy installation and maintenance with cable connections. It has a contact resistance of 30mΩ max for pins and 50mΩ max for the shell, with insulation resistance rated at 100MΩ at 500V DC min, supporting safe and efficient electrical operation.

The connector withstands a voltage surge of up to 250V AC for 1 minute, making it suitable for applications requiring short-term voltage spikes tolerance. Its compact and durable design makes it ideal for use in diverse fields such as industrial automation, instrumentation, audio/video equipment, and power supplies.

Durable ABS housing with zinc alloy shield cover for protection and shielding. Silver plated brass contacts for superior conductivity and corrosion resistance. Stable cable retention with cable clamp and PVC support sleeve.

Rated at 4A current and 100V AC voltage with 250V AC voltage withstand. Low contact resistance and high insulation resistance for reliable performance. Push lock mating type for secure and easy connection. Seven pole, straight orientation configuration for broad industrial compatibility.

Manufactured in Taiwan, Province Of China ensuring quality standards.

This connector is an essential component for engineers and technicians needing reliable, shielded DIN Connectors for secure signal and power transmission. Browse the Electronics & Electricals category at EnvMart for an extensive range of RS PRO connectors and related accessories.
