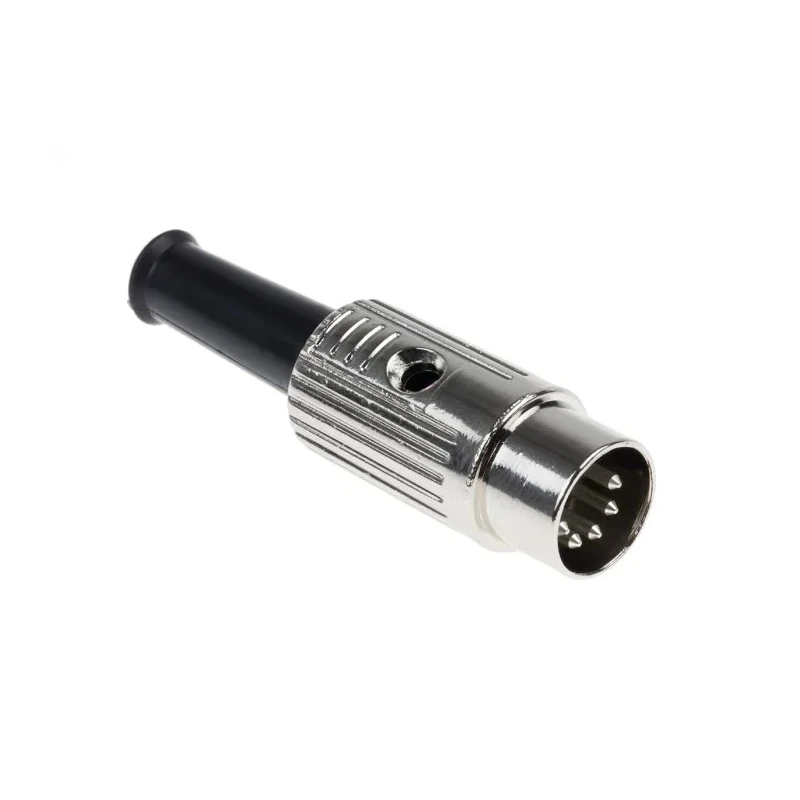

RS PRO 5 Pole Straight Standard DIN Plug, 4A, 100V AC, Push Lock Cable Male 491-144

RS PRO 491-144 5 Pole Straight Standard DIN Plug is a high-quality, screened DIN connector designed for robust and reliable cable connections in electrical and electronic applications. Rated at 4A current and 100V AC voltage, it is an excellent choice for industrial, manufacturing, and electronic component connectivity where secure signal and power transmission is critical.

The plug features a robust ABS housing paired with silver plated brass contacts that combine durability with excellent conductivity and corrosion resistance. Its zinc alloy shielded cover further protects the connections from electromagnetic interference, ensuring signal integrity in demanding environments.

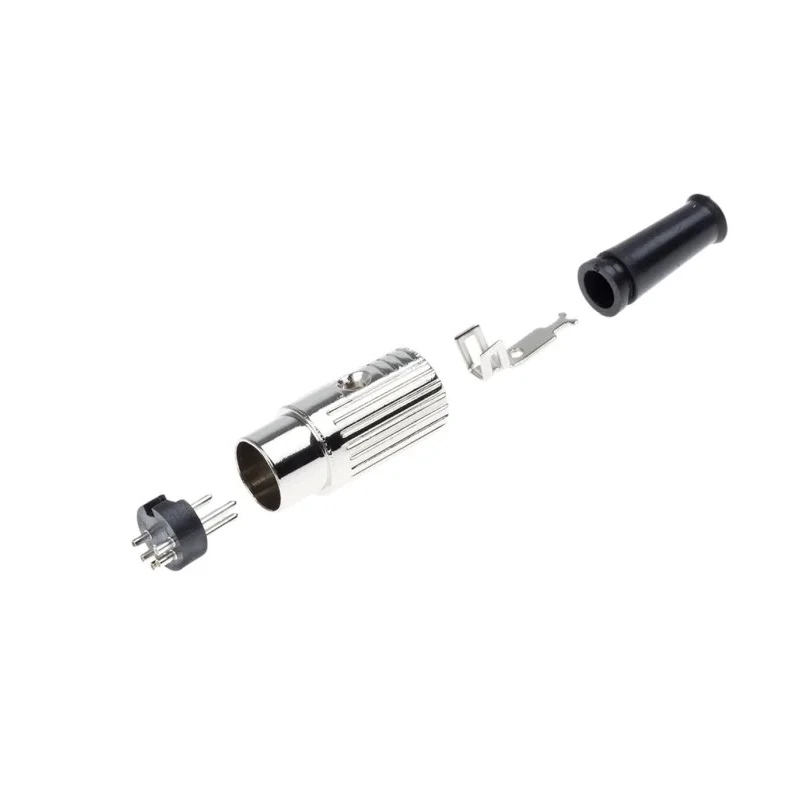

The connector has a straight orientation and push lock mating type, allowing for easy and secure attachment to compatible sockets. The cable-mounted design comes equipped with a cable clamp and PVC support sleeve, providing mechanical stability and strain relief to the cable assembly. These features make it ideal for use in control panels, audio-visual equipment, and other electronic devices requiring secure interconnections.

Additional technical specifications include a maximum contact resistance of 30 milliohms for pins, 50 milliohms for the shell, and outstanding insulation resistance of at least 100 MΩ at 500V DC, making it highly reliable for various electrical installations. It withstands temporary voltage surges up to 250V AC for short durations, enhancing safety in fluctuating electrical environments.

Manufactured under the trusted RS PRO brand and made in Taiwan, this DIN Plug is engineered to meet the needs of electrical, industrial, manufacturing, and laboratory applications that demand precision and safety.

Constructed with ABS housing for durability. Silver plated brass contacts ensure low resistance and corrosion resistance. Shielded zinc alloy cover enhances signal integrity. Rated for 100V AC and 4A maximum current. Offers 250V AC voltage withstand for one minute.

Equipped with a cable clamp and PVC support sleeve for stable cable retention. Set screw and 'T' holder made of steel nickel plated for secure assembly. Contact resistance: pins 30mΩ max, shell 50mΩ max. Insulation resistance: 100MΩ minimum at 500V DC.

Male straight orientation with push lock mating for easy installation. Explore the RS PRO range of DIN connectors and related electrical components for guaranteed quality and performance on EnvMart.
