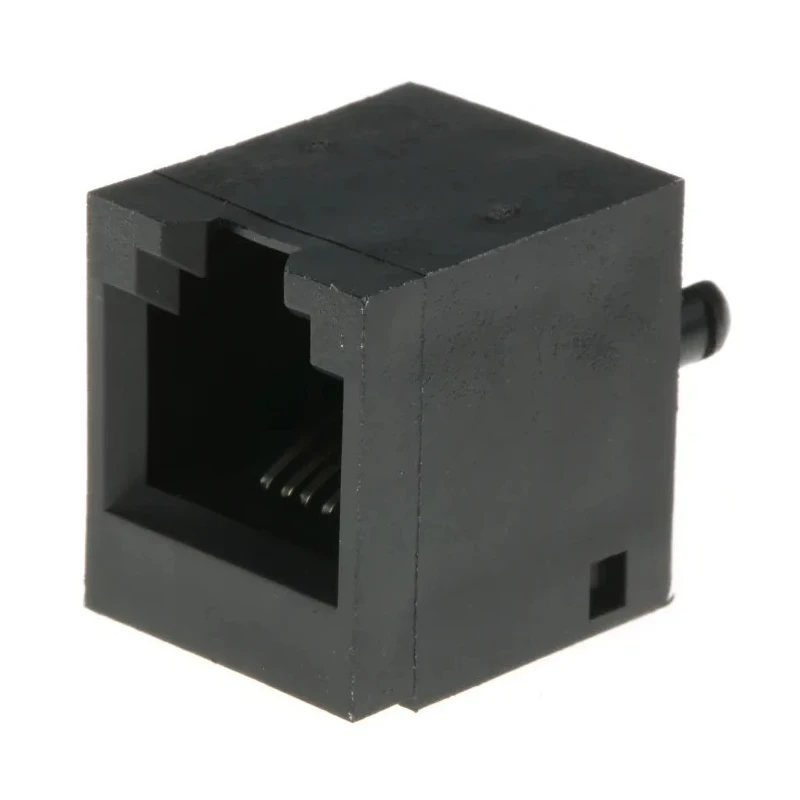

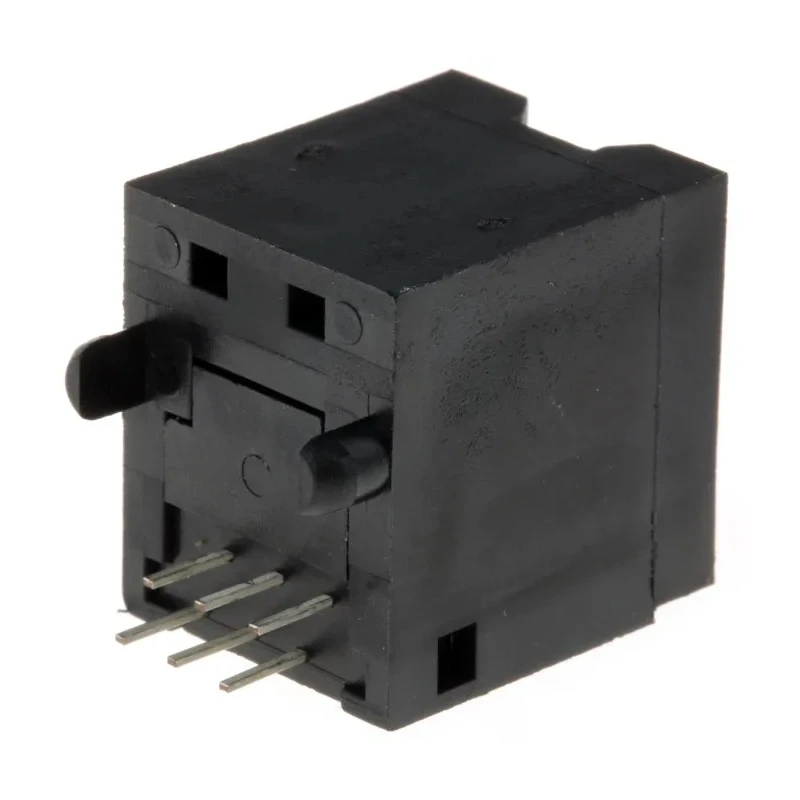

Bel-Stewart SS-65 Series Female Modular Jack Connector, Unshielded Through Hole, Straight Orientation, 1 Port 6 Way RJ25

Free Delivery in India | Lowest Global Shipping Charges

Bel-Stewart SS-65 Series Female Modular Jack Connector, Unshielded Through Hole, Straight Orientation, 1 Port 6 Way RJ25

Name: Bel-Stewart SS-65 Series Female Modular Jack Connector, Unshielded Through Hole, Straight Orientation, 1 Port 6 Way RJ25
Brand: Bel-Stewart
SKU: 162565
Price: 2.89 USD
Availability: InStock



Category Network & Telecom Connectors Brand Bel-Stewart Condition New

Specifications

Country of Origin	India
Brand	Bel-Stewart
Orientation	Straight
Length	13.59mm
Model	RJ25
Depth	16.51mm
Connector Type	Modular Jack
Number Of Ways	6
Width	16.51mm
Mount Type	Through Hole
Contact Material	Copper Alloy
Series	SS-65
Number Of Ports	1
Termination Type	Solder
Shield Type	Unshielded
Standards/Approvals	RoHS
Contact Plating	Gold
Connector Gender	Female
Ethernet Connector Type	RJ25

Key Features

This RJ25 connector features 6 contacts offering 1 port connectivity.
Constructed with copper alloy contacts plated in gold to enhance conductivity and durability.
Complies with RoHS standards ensuring environmental compliance.

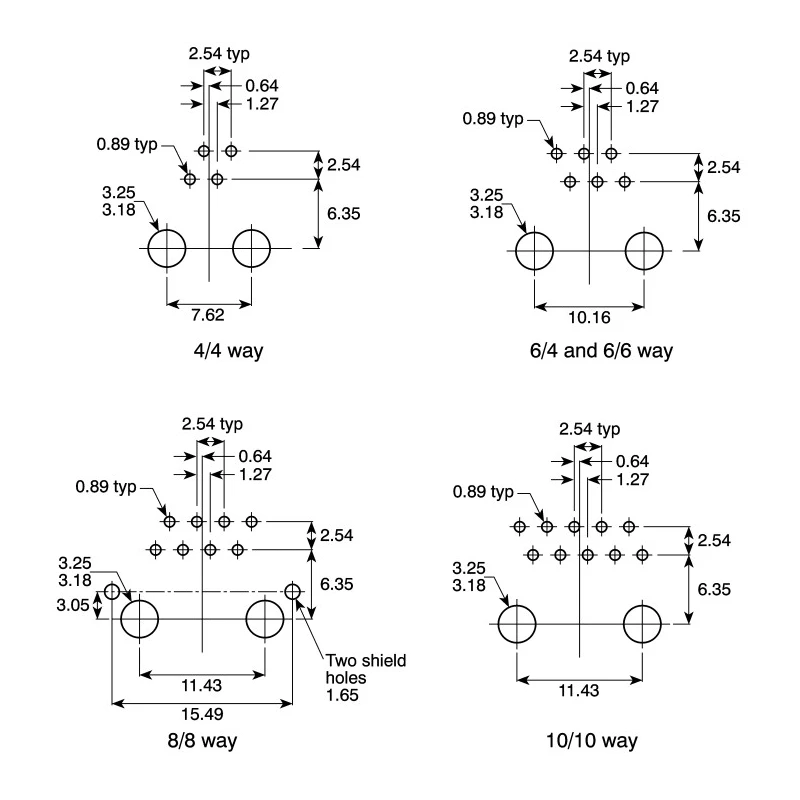

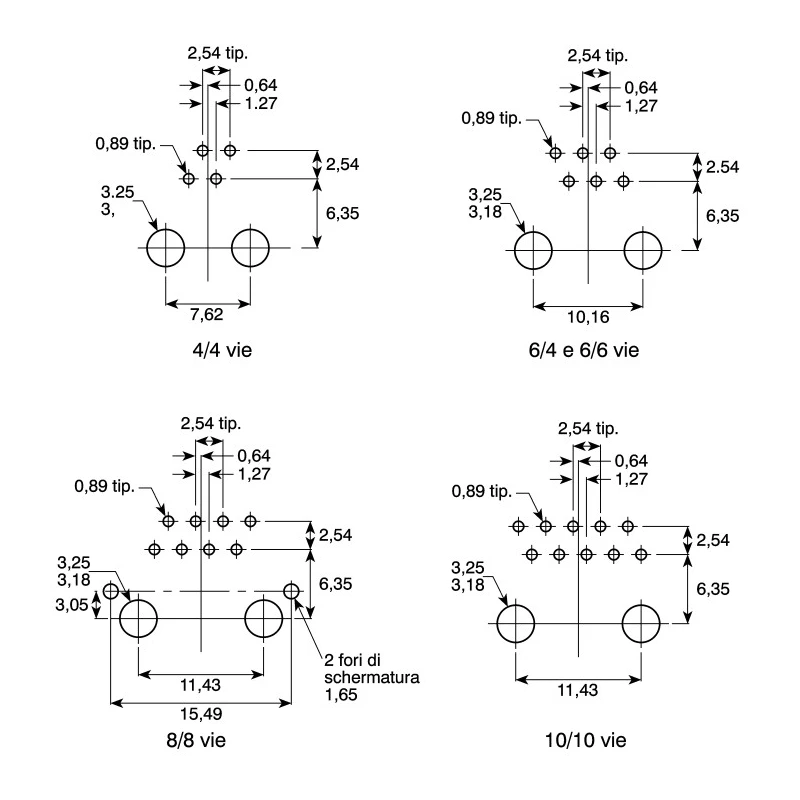

Measuring 16.51mm width, 16.51mm depth, and 13.59mm length for precise PCB mounting.
Designed for solder termination with no LED feature, suitable for network and telecom applications.
The straight orientation and unshielded design make it ideal for general ethernet connections.

Product Description

Bel-Stewart SS-6566-NF is an SS-65 Series RJ25 female modular jack connector designed for through hole PCB mounting in network and telecom applications. It features a robust copper alloy contact material with durable gold plating for optimal signal transmission and corrosion resistance. The connector supports a single port with 6 ways, offering reliable modular jack connectivity in a compact 16.51mm by 16.51mm by 13.59mm form factor.

This unshielded, straight orientation connector provides an effective solution for Category 4 ethernet connections, conforming to industry RoHS standards for safety and environmental compliance. Its solder termination type allows a secure and permanent mounting to PCBs, widely used in communications and networking equipment manufacturing.

The SS-65 series from Bel-Stewart is renowned for its quality and adherence to FCC68 specifications, ensuring compatibility and performance in data socket applications across industrial, commercial, and telecommunications sectors.

6-way contact configuration for stable data transmission. Gold plating on copper alloy contacts reduces oxidation and improves conductivity. Compact dimensions facilitate easy integration into PCB layouts. RoHS compliant materials and construction.

Solder termination supports durability and connection integrity. Designed for unshielded environments with straight connector orientation.

This connector is suited for use in industrial networking, telecommunications equipment assembly, manufacturing, and other applications requiring reliable ethernet interfacing. For further technical designs, 3D models and schematics, professionals can integrate this connector within advanced PCB and network hardware projects. Explore additional related components in the Network & Telecom Connectors category on EnvMart for comprehensive solutions.
