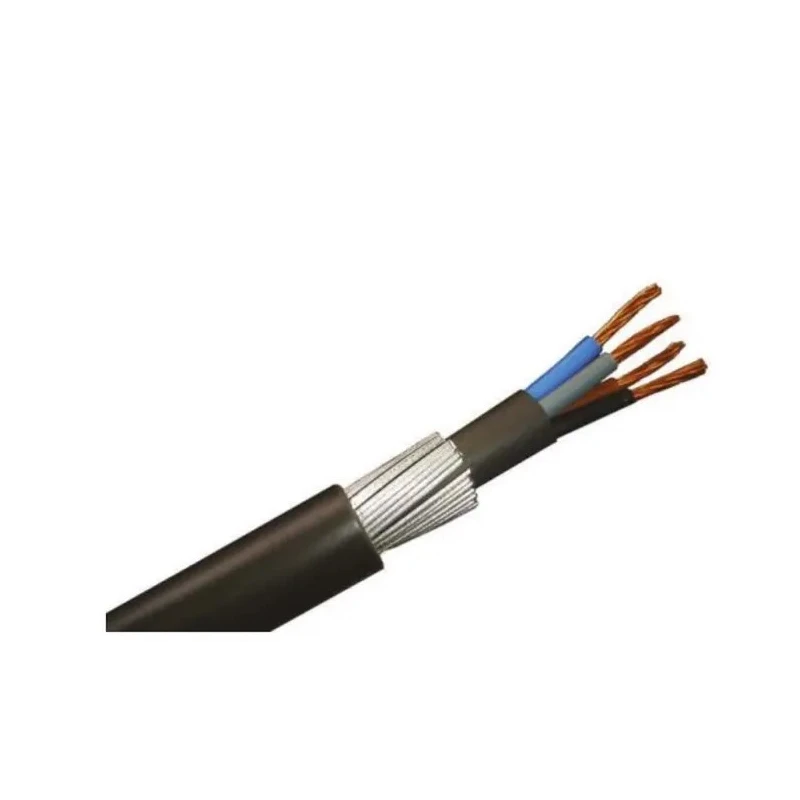

RS PRO 4 Core Power Cable Black 10mm² 600/1000V 90°C Stranded Annealed Copper Conductors Cross Linked Insulation 50 196-4706
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1000, 600V |
| Brand | RS PRO |
| Model | 196-4706 |
| Cable Length | 50m |
| Outside diameter | 20.5mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 4 |
| Conductor Material | Annealed Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Cross Linked |
| Standards/Approvals | BASEC |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 1.35mm |
| Size of Strands | 1.35mm |
| Cable CSA | 10mm² |
| Standards and Approvals | BS 5467 |
Key Features
- The cable has four cores with stranded annealed copper for excellent conductivity.
- With a total length of 50 meters, it supports high power transmission applications.
- Black cross-linked polyethylene (XPLE) insulation ensures enhanced thermal and chemical resistance.
- The cable is rated for 600/1000 volts and operates safely up to 90°C.
- Its galvanised steel wire armour provides mechanical protection and high tensile strength.
- Flame retardant jacket material improves fire safety during use.
- Designed for direct burial, embedding in concrete, and underground ducting.
- Manufactured to BS 5467 standard and BASEC-approved for quality assurance.
Product Description
RS PRO 196-4706 4 Core Power Cable is a high-quality, armoured power cable featuring a 10mm² cross-sectional area per conductor with stranded annealed copper cores, providing excellent electrical conductivity. This cable is designed for industrial use and mains power distribution systems requiring durability, safety, and reliable performance.
The black outer jacket is made of cross-linked polyethylene (XPLE) insulation that enhances thermal endurance up to 90°C, chemical resistance, and mechanical robustness. Beneath the insulation, a PVC bedding and a tough, galvanized steel wire armour protect the cable from mechanical stresses, making it suitable for installation in direct burial, concrete embedding, and underground ducting environments.
This 50-meter length cable operates at voltage ratings of 600/1000 volts, accommodating demanding industrial power supply applications. It complies with BS 5467 standards and holds BASEC certification, ensuring adherence to high safety and quality criteria.
The flame retardant properties of the jacket enhance operational safety by reducing fire risk. Its construction includes seven strands per core, each strand measuring 1.35 mm, which delivers flexibility and robustness to the conductor.
Four-core power cable suitable for industrial power and automation applications. Stranded annealed copper conductors for superior electrical performance. Cross linked polyethylene (XPLE) insulation for enhanced thermal and chemical resistance.
Galvanised steel wire armour offering mechanical protection and tensile strength. Black flame retardant PVC sheath ensuring fire safety. Rated for 600/1000 volts operation with a temperature rating of up to 90°C. Compliant with BS 5467 and approved by BASEC standards.
This power cable is ideal for use in electrical installations requiring durable, safe, and high-performance wiring solutions such as industrial facilities, factories, water treatment plants, and commercial electrical systems.
Explore more quality wiring solutions in the Power Cable category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 600/1000 volts, making it suitable for high power transmission applications.
It operates safely at a maximum temperature of 90°C.
The conductors are made of stranded annealed copper, which provides excellent electrical conductivity.
This power cable has a total length of 50 meters.
It features cross-linked polyethylene (XPLE) insulation, which enhances thermal and chemical resistance.
Yes, it is designed for direct burial, embedding in concrete, and underground ducting.
The outside diameter of the cable is 20.5 mm.
This model has four cores, each consisting of seven strands measuring 1.35 mm.
It complies with BS 5467 standards and is BASEC approved for quality assurance.
The jacket material is flame retardant, enhancing operational safety by reducing fire risk.
The minimum operating temperature is -15°C.
It is suitable for industrial power and automation applications, including use in factories and water treatment plants.
