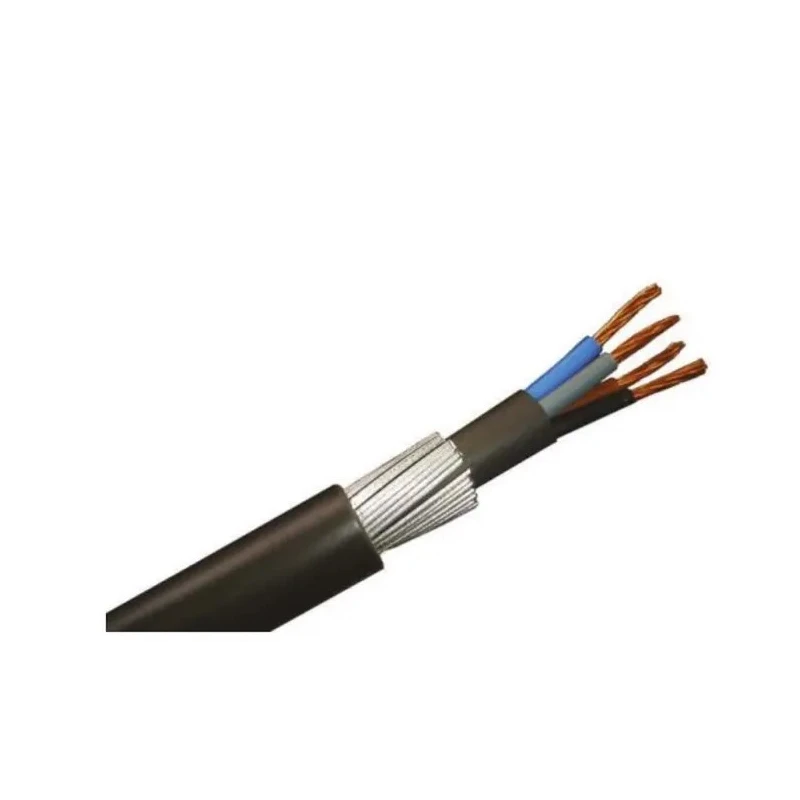

RS PRO 4 Core Power Cable Black 1.5mm² 90 °C 50 m Polyvinyl Chloride 196-4699
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1000, 600V |
| Brand | RS PRO |
| Model | 196-4699 |
| Cable Length | 50m |
| Outside diameter | 12.1mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 4 |
| Conductor Material | Annealed Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | BASEC |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.53mm |
| Size of Strands | 0.53mm |
| Cable CSA | 1.5mm² |
| RS PRO 1.5 mm² 4 Core Armoured Cable Polyvinyl Chloride PVCBrand | RS PRO |
Key Features
- Designed for reliable electrical power transmission in industrial and heavy duty applications.
- Galvanised steel wire armour provides excellent protection against mechanical damage.
- XLPE insulation ensures high dielectric strength and heat resistance.
- Flame retardant PVC sheathing enhances safety in various environments.
- Suitable for indoor, outdoor, and underground installations with free draining soil.
- Stranded annealed copper conductors improve electrical conductivity and flexibility.
- Complies with BASEC standards ensuring quality and safety.
- Operating voltage up to 1000V and operating temperature range from -15 °C to 90 °C.
Product Description

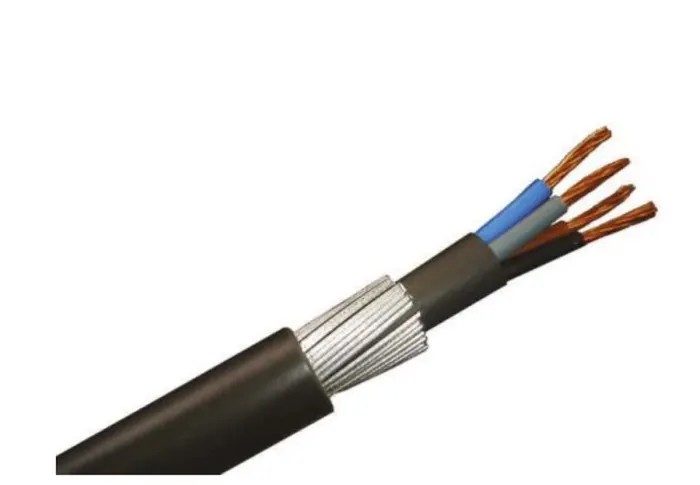

RS PRO 196-4699 is a 4 Core Power Cable with a black polyvinyl chloride (PVC) jacket and 1.5 mm² cross-sectional area, designed for industrial and heavy duty electrical applications. It features annealed copper stranded conductors with XLPE thermosetting insulation, providing reliable performance under harsh conditions and elevated temperatures up to 90 °C.
The cable is steel wire armoured (SWA) with galvanised steel wire armour which protects it from mechanical damage, making it suitable for installation indoors, outdoors, and underground where robust protection is critically needed. The PVC bedding and sheathing provide added safety and resistance to pinching and physical impacts in various environments.
RS PRO 196-4699 cable complies with BASEC standards ensuring high quality and safety, operating voltage ratings of 600V and 1000V, and an operating temperature range between -15 °C and 90 °C. Its flame retardant properties further enhance safety during use. The stranded conductor design ensures flexibility while maintaining good electrical conductivity.
This cable is ideal for powering mains electricity supply in power networks, construction sites, railways, and underground systems with free draining soil. It can be installed clipped to surfaces, on cable trays or ladders, embedded in concrete, or buried directly or in ducting.
Designed for reliable electrical power transmission in industrial and heavy duty applications. Galvanised steel wire armour provides excellent protection against mechanical damage. XLPE insulation ensures high dielectric strength and heat resistance.
Flame retardant PVC sheathing enhances safety in various environments. Suitable for indoor, outdoor, and underground installations with free draining soil. Stranded annealed copper conductors improve electrical conductivity and flexibility.
Complies with BASEC standards ensuring quality and safety. Operating voltage up to 1000V and operating temperature range from -15 °C to 90 °C. Robust construction for use in power networks, construction sites, railways, and underground systems.
Explore the RS PRO range for dependable electrical cables suitable for demanding industrial and commercial environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this power cable is 90°C.
This power cable has voltage ratings of 600V and 1000V.
The cable features a black polyvinyl chloride (PVC) jacket, stranded annealed copper conductors, and XLPE thermosetting insulation.
The cable length is 50 meters.
The outside diameter of this power cable is 12.1mm.
This power cable has 4 cores.
This cable can be installed clipped to surfaces, on cable trays or ladders, embedded in concrete, or buried directly or in ducting.
Yes, this power cable is suitable for indoor, outdoor, and underground installations with free draining soil.
This cable complies with BASEC standards, ensuring quality and safety.
The cable has flame retardant properties, enhancing safety during use.
The minimum operating temperature for this power cable is -15°C.
The cable uses stranded annealed copper conductors, which improve electrical conductivity and flexibility.
