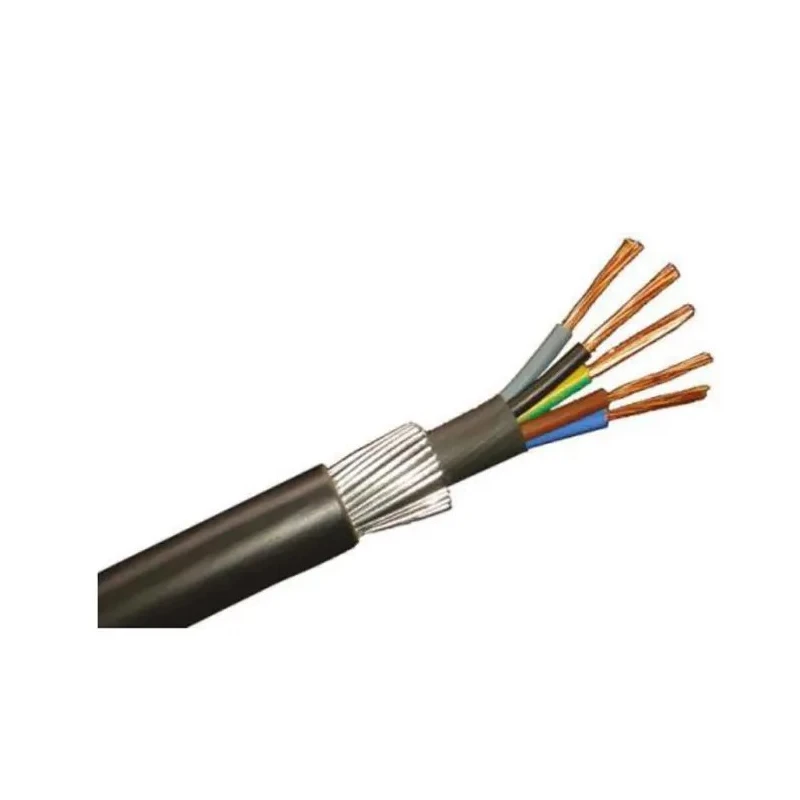

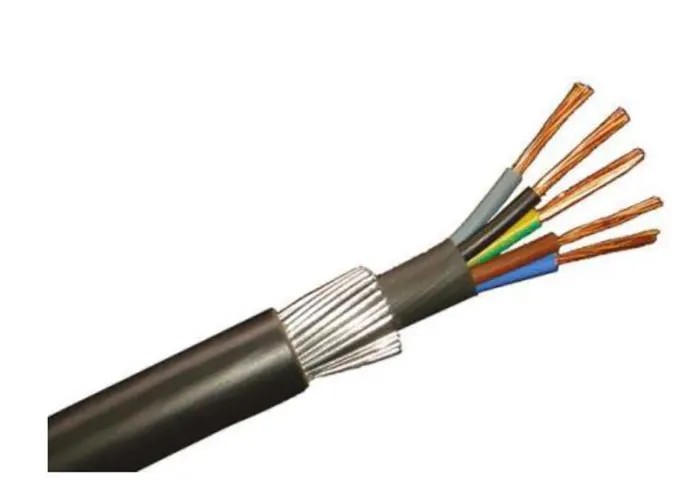

RS PRO 5 Core Power Cable Black 2.5mm² 90 °C 50 m Polyvinyl Chloride 196-4697
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 1000, 600V |
| Brand | RS PRO |
| Model | 196-4697 |
| Cable Length | 50m |
| Outside diameter | 14.5mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 5 |
| Conductor Material | Annealed Copper |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | BASEC |
| Jacket Colour | Black |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.67mm |
| Size of Strands | 0.67mm |
| Cable CSA | 2.5mm² |
| RS PRO 2.5 mm² 5 Core Armoured Cable, Black Polyvinyl Chloride PVCBrand | RS PRO |
Key Features
- Consists of five color-coded, screened cores for reliable industrial and electrical distribution use.
- Stranded annealed copper conductors with 7 strands, each 0.67 mm in diameter, providing flexibility and conductivity.
- Outer sheath made of durable polyvinyl chloride (PVC), offering resistance to chemical, heat and mechanical damage.
- Features galvanised steel wire braiding for electromagnetic interference shielding and corrosion resistance.
- Complies with British Approvals Service for Cables (BASEC) standards ensuring high quality and safety.
- Operates in temperature range from -15 °C to +90 °C, suitable for challenging environments.
- The cable has an outer diameter of 14.5 mm providing robustness for industrial use.
- Flame retardant properties to meet fire safety requirements in installations.
Product Description
RS PRO 196-4697 5 Core Power Cable is a highly durable and industrial-grade cable featuring black polyvinyl chloride (PVC) outer sheath, 2.5 mm² conductor cross-sectional area, and a length of 50 m. It is designed to meet robust electrical distribution needs in industrial, commercial, and heavy-duty environments.
The conductors are made of stranded annealed copper with seven strands of 0.67 mm diameter each, providing excellent flexibility and conductivity. The cable's five cores are color-coded and screen shielded by galvanised steel wire braiding which offers electromagnetic interference protection and resists corrosion for long service life.
This Power Cable is rated for 600 V and 1000 V voltages and with a maximum operating temperature of 90 °C, operating safely between -15 °C and +90 °C. The outer diameter of 14.5 mm ensures mechanical robustness for outdoor and underground installations.
The polyvinyl chloride sheath is flame retardant and protects against chemical, heat, and mechanical damage, making this cable suitable for a wide range of industrial wiring applications such as mains distribution and complex electrical installations.
Manufactured to comply with British Approvals Service for Cables (BASEC) standards, this cable guarantees industry compliance and safety for users in demanding environments. Consists of five cores with annealed copper stranded conductors for flexibility.
Outer black PVC sheath provides mechanical and chemical resistance. Galvanised steel wire screening shields against electromagnetic interference. Rated for 600 V and 1000 V, operable up to 90 °C temperature. Flame retardant sheath enhances fire safety for installations.
Compliant with BASEC standards ensuring quality and reliability. Ideal for industrial, commercial, and outdoor electrical wiring applications.
This RS PRO cable is ideal for industrial automation, electrical power distribution, machinery cabling, and environments requiring robust, shielded multi-core cables. For more industrial cables and accessories, explore the Electronics & Electricals section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this power cable is 90 °C.
The outer diameter of this model is 14.5 mm.
This power cable consists of five cores.
This cable is rated for both 600 V and 1000 V.
The conductors are made of stranded annealed copper, and the outer sheath is made of polyvinyl chloride (PVC).
Yes, the outer sheath of this cable is flame retardant, enhancing fire safety for installations.
The minimum operating temperature of this cable is -15 °C.
This power cable is suitable for industrial automation, electrical power distribution, and complex electrical installations.
Each core of the cable consists of 7 strands, with each strand measuring 0.67 mm in diameter.
Yes, this cable complies with British Approvals Service for Cables (BASEC) standards.
The cable features galvanised steel wire braiding for electromagnetic interference shielding.
The length of this power cable is 50 meters.
