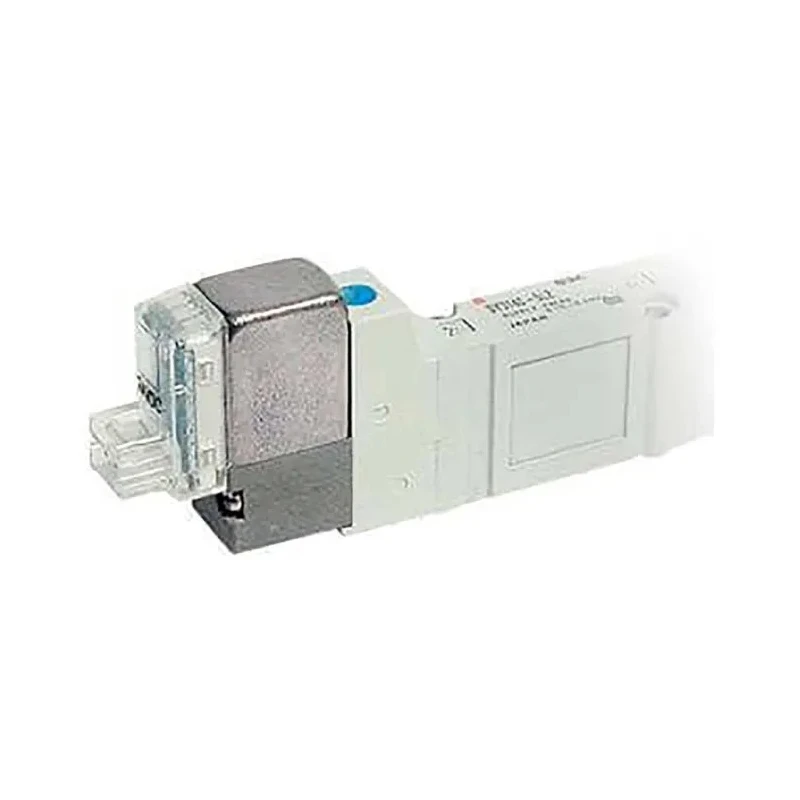

SMC Solenoid Pilot Valve Rc Port Type One-Touch Fitting SY5000

The SMC SY5140R-4DZ-Q Solenoid Pilot Valve with Rc connection and one-touch fitting port type is engineered for industrial pneumatic fluid power systems requiring accurate and reliable air control. This solenoid valve belongs to the SY5000 series and employs high-grade halogenated nitrile rubber seals for enhanced resistance to wear and chemicals, extending operational lifespan.

Designed for versatile mounting with a body ported base, this valve ensures secure installation across various machinery and pneumatic circuits. The device supports a maximum operating pressure of 0.7 MPa and a minimum pilot pressure of 0.15 MPa, accommodating diverse pneumatic applications.

Constructed from durable aluminium, the valve body offers a robust yet lightweight solution, complemented by a compact form factor of 105.8 mm height and 60.9 mm width, facilitating integration into tight spaces. The valve function features double acting, exhaust, one action, pressure centre, and closed positions, making it ideal for controlled pneumatic operations requiring two positions and reliable exhaust performance.

The electrical coil operates on rated voltages of 24 V and 12 V DC, supporting flexible control system configurations. Maximum flow rate capacity of 746 L/min enables efficient air delivery and response within pneumatic systems. The operating temperature range from -10°C to 50°C and non-freezing ambient conditions make this valve suitable for a wide range of industrial environments including manufacturing, automation, HVAC, and fluid handling.

Applications include pneumatic actuation, air flow control, and pressure regulation in industrial automation systems and pneumatic manufacturing equipment, where precise valve function and durability are critical.

The valve features a body ported base mount type for stable installation. Equipped with halogenated nitrile rubber seals to ensure durability and chemical resistance. Operating pressure ranges from -100 kPa to 0.7 MPa for versatile use.

Supports coil rated voltages of 24 V and 12 V DC for flexible power supply integration. Maximum operating temperature is 50°C, suitable for standard industrial environments. The valve offers double acting, exhaust, one action, pressure centre, closed function for efficient operation.

Constructed from aluminium body material ensuring strength and lightweight. Compact design with dimensions of height 105.8 mm and width 60.9 mm to fit constrained spaces. Provides a maximum flow rate of 746 L/min, delivering efficient air flow control.

Designed for air fluid type, with ambient and fluid temperature range from -10°C to 50°C (non-freezing).

This SMC pneumatic solenoid pilot valve is manufactured in Japan, assuring high quality and precision engineering standards. It complies with RoHS environmental standards, underscoring its safety and sustainability aspects.
