SMC Pneumatic 2 Finger Double Acting Action Gripper Bore 20mm, Angle Gripping Type, MHY2-20D2

Free Delivery in India | Lowest Global Shipping Charges

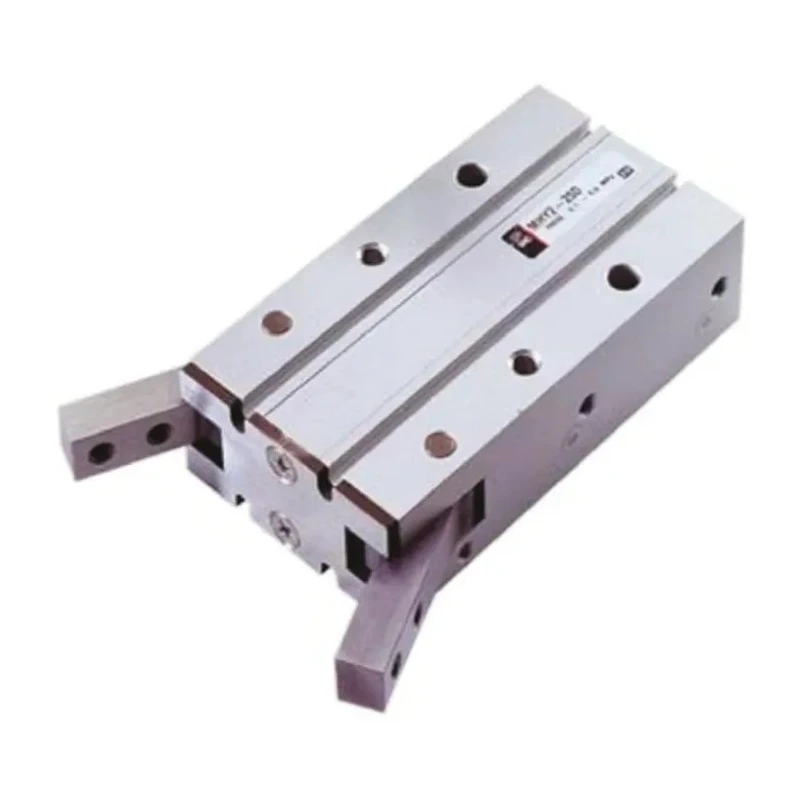

SMC Pneumatic 2 Finger Double Acting Action Gripper Bore 20mm, Angle Gripping Type, MHY2-20D2



Category Pneumatic Gripper Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Maximum Operating Pressure	0.6 Mpa
Height	48mm
Length	106mm
Model	MHY2-20D2
Gross Weight	320g
Width	26mm
Series	MHY2
Maximum Operating Temperature	60°C
Port Size	M5 x 0.8
Minimum Operating Temperature	-10°C
Bore Diameter	20mm
Open Width	110mm
Action Type	Double Acting
Standards/Approvals	RoHS
Number of Fingers	2
Gripping Type	Angle
Gripping Force - Internal	1.1Nm
Closed Width	36mm

Key Features

SMC MHY2-20D2 pneumatic gripper with 2 fingers operates on double acting action and angle gripping type.
Featuring a compact and light design for easy integration.
Gripping angle of 180 degrees with internal and external gripping force of 1.1 Nm.
Maximum operating pressure of 0.6 Mpa with an M5 x 0.8 port size.
Operating temperature range from -10°C to 60°C ensures versatile use.
Constructed with stainless steel fingers for improved dust resistance.
Supports maximum frequency of 60 cycles per minute for efficient automation.
Compatible with auto switch mounting at four locations.

Product Description

SMC MHY2-20D2 pneumatic gripper is a 2 finger, double acting action device designed for precision gripping applications in industrial automation. With a bore diameter of 20mm, it provides reliable gripping force with an angular gripping type offering a 180° operation angle.

The gripper features a lightweight and compact form factor, including stainless steel fingers for enhanced durability and resistance to dusty environments. It operates at a maximum pressure of 0.6 Mpa and accepts an M5 x 0.8 port size connection, allowing easy integration with pneumatic systems.

Operating temperatures range from -10°C to 60°C, making it suitable for a variety of industrial conditions. The gripper's maximum operating frequency of 60 cycles per minute supports high-speed automation processes. Auto switch mounting is supported at four locations on the device, increasing flexibility in industrial setups.

This model is part of the MHY2 series and complies with RoHS standards. Manufactured in Japan, it reflects quality and reliability for use in automation, mechanical handling, robotics, pneumatic assembly, and laboratory automation applications.

Compact, light design with stainless steel fingers for durability. Double acting, angular gripping with 180° operation. Operating pressure max 0.6 Mpa and port size M5 x 0.8. Temperature range -10°C to 60°C suitable for varied environments.

Maximum frequency 60 cycles per minute for rapid operation. Auto switch mounting at four locations. RoHS compliant and manufactured in Japan.

This pneumatic gripper is ideal for automated manufacturing processes requiring precision and reliability. Explore similar Pneumatic Gripper models and pneumatic automation tools on EnvMart for comprehensive solutions.
