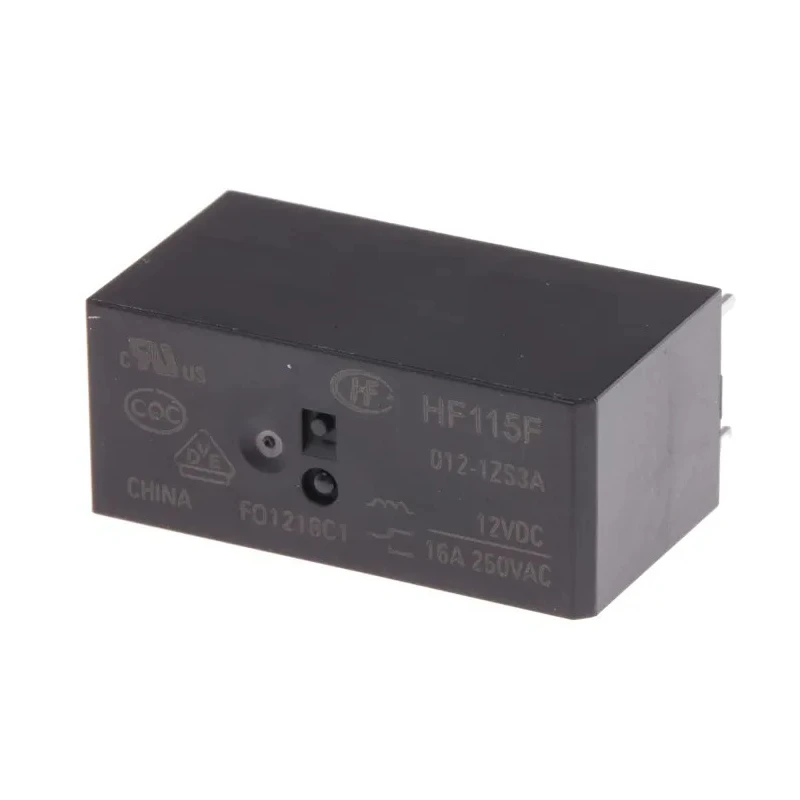

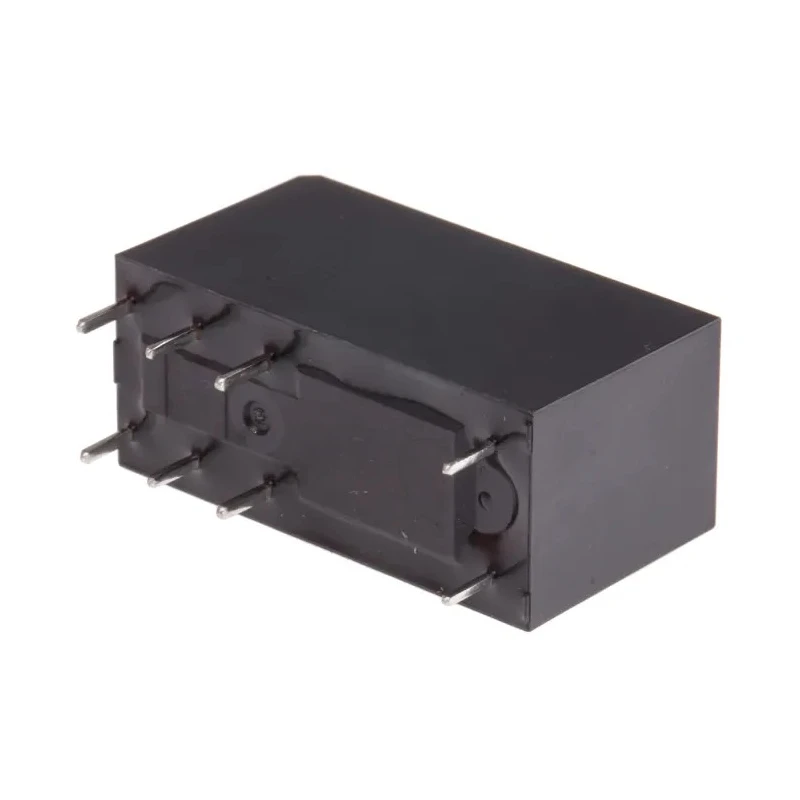

RS PRO Power Relay PCB Mount SPDT 12V dc Coil 16A Switching Current 0476808P
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 15.7mm |
| Length | 29mm |
| Model | 0476808P |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Low Profile | 15.7mm max height |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
Key Features
- Operates with a 12V DC coil voltage and supports a switching current of 16A.
- Features a silver alloy contact material to ensure reliable conductivity.
- Provides switching capabilities for up to 300V DC and 440V AC voltages.
- Designed for PCB mounting with through-hole terminal type for secure connections.
- Compact form factor with a height of 15.7mm and length of 29mm.
- Coil resistance measures 360Ω with coil power consumption of 400mW.
- Meets RoHS standards and conforms to IEC 60335-1 and VDE certifications.
- Operates reliably from -40°C to 85°C ambient temperature range.
Product Description
The RS PRO 0476808P Power Relay is engineered for industrial and automation systems requiring PCB mounted power relays with reliable switching performance.
Featuring a single-pole double-throw (SPDT) contact configuration, this relay supports both DC and AC switching voltages of up to 300V and 440V respectively, accommodating switching currents of up to 16A. The compact low profile design, with a maximum height of 15.7mm, facilitates integration into space-constrained electronic assemblies.
Its coil operates at 12V DC with a coil resistance of 360Ω and power consumption of 400mW, ensuring efficient electromagnetic actuation. The relay terminals are designed for through-hole mounting on PCBs, providing secure mechanical and electrical connections.
Constructed with silver alloy contacts offering low contact resistance of 100mΩ, the device supports switching power up to 4kVA, suitable for controlling various electrical loads in industrial environments.
Designed to operate in harsh conditions, the relay supports an operating temperature range from -40°C to 85°C and features a dielectric strength of 5kV between coil and contacts with surge voltage tolerance up to 10kV. This ensures durability and interference resistance in demanding applications.
The product complies with RoHS directives for environmental safety and holds certifications including UL and VDE, guaranteeing adherence to industry standards and reliable operation.
The RS PRO 0476808P power relay is ideal for industrial control systems, machinery automation, HVAC controls, and electrical distribution panels where precise and robust switching is critical. Its low profile and standard pin spacing make it suited for automated assembly and repair tasks.
EnvMart offers this relay for professional electrical engineering projects demanding dependable PCB Power Relays.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this power relay is 12V DC.
This relay can handle a maximum switching current of 16A.

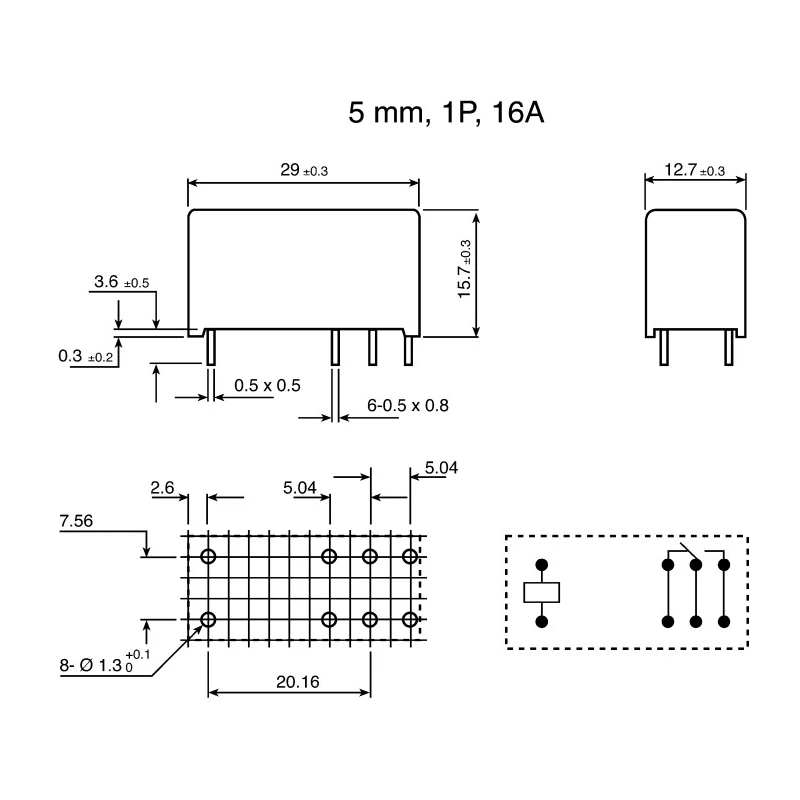

The dimensions of this model are a height of 15.7mm, a length of 29mm, and a width of 12.7mm.
The contact configuration of this relay is single-pole double-throw (SPDT).
The dielectric strength of this relay is 5kV between the coil and contacts.
This model operates reliably within an ambient temperature range of -40°C to 85°C.
This relay is designed for PCB mounting with a through-hole terminal type.
The contacts are made from silver alloy, which ensures reliable conductivity.
The coil resistance of this relay measures 360Ω.
This relay can switch DC voltages up to 300V and AC voltages up to 440V.
The coil power consumption of this relay is 400mW.
This relay complies with RoHS standards and conforms to IEC 60335-1 and VDE certifications.
