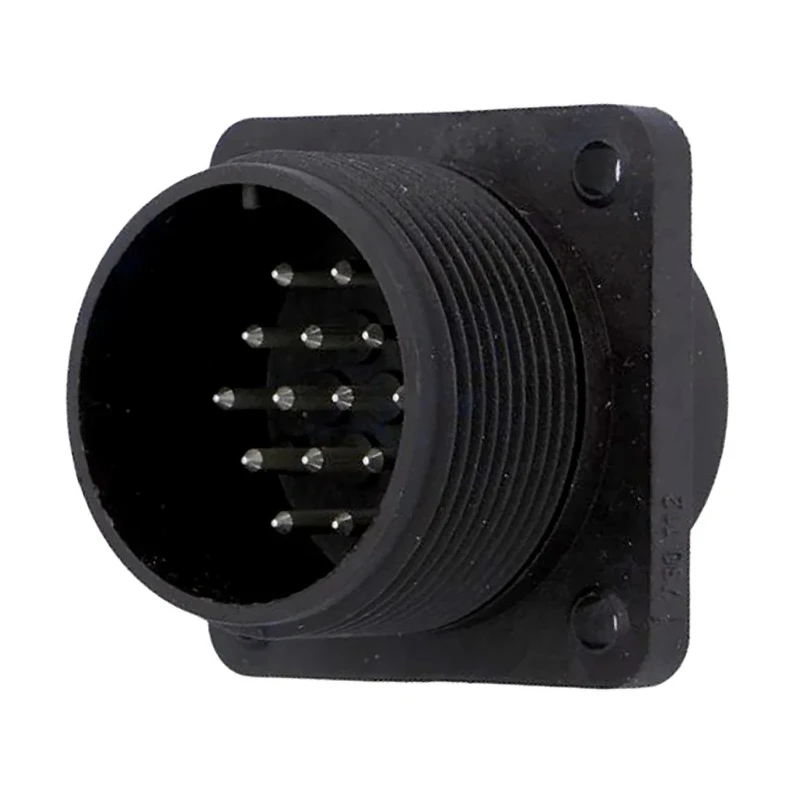

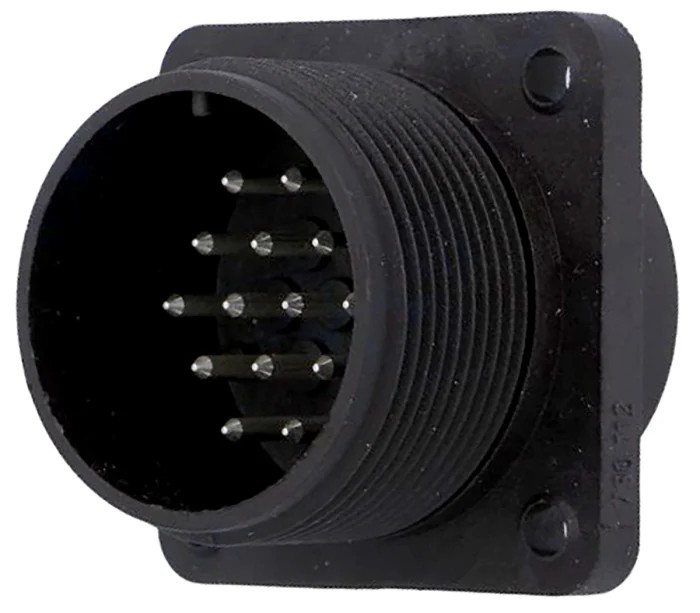

Amphenol Industrial MIL Spec Circular Connector Copper Alloy Straight 37 Way Box Mount 500, 700V AC 5A MS3102A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Industrial |
| Colour | Black |
| Orientation | Straight |
| Current | 5A |
| Model | MS3102A |
| IP Rating | IP67 |
| Mount Type | Box Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | MS3102A |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Silver |
| Number of Contacts | 37 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 28 |
| Military Standard | MIL-DTL-5015 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- The connector offers a durable copper alloy construction with silver-plated contacts for reliable electrical performance.
- It features a black zinc cobalt-plated aluminium shell with olive drab chromate finish for excellent corrosion resistance.
- Designed for box mounting, it has a shell size 28 with screw coupling mating type for secure and accurate connections.
- This MIL Spec connector supports IP67 ingress protection and operates reliably from -55°C to 125°C.
- The 37 contact male/female configuration is ideal for industrial, military, and aerospace applications requiring rugged and reliable circular connectors.
- Its resilient synthetic rubber inserts provide high dielectric strength and vibration resistance suitable for harsh environments.
- Strain relief is incorporated to safeguard against mechanical stress during usage.
Product Description
Amphenol Industrial MS3102A is a MIL Spec Circular Connector engineered for demanding industrial and military uses. It features a 37 way configuration with a box mount design and straight orientation, delivering a reliable electrical interface with 5A current capacity at 500 and 700V AC voltages. The connector is built to MIL-DTL-5015 standards ensuring robust mechanical and electrical integrity in harsh environments.
The connector body is made from high-grade aluminium alloy with a black zinc cobalt plating and an olive drab chromate finish, providing superior corrosion resistance. The contacts are copper alloy with silver plating to maintain excellent conductivity and durability over time. Synthetic rubber inserts enhance dielectric strength and provide resistance to vibration, ensuring stable operation in rugged settings.
Designed for industrial, laboratory, shipboard, aerospace, and military applications, this MS Series circular connector offers threaded couplings for quick, secure mating, and single key/keyway shell polarization to prevent mismating. Operating across a temperature range from -55°C to 125°C, it meets IP67 ingress protection, suitable for environments with dust and water exposure.
Durable copper alloy contacts with silver plating for optimum electrical conductivity. High grade aluminium housing with corrosion-resistant zinc cobalt plating and chromate finish. Designed to MIL-DTL-5015 military specifications for quality and reliability.
Synthetic rubber inserts provide high dielectric strength and vibration resistance. 37 way configuration with male/female contacts for versatile connections. Screw coupling and keying prevent mismating and facilitate rapid assembly.
IP67 rated for effective protection against dust and water ingress. Wide operating temperature range from -55°C to 125°C for harsh environments. Box mount design suitable for equipment panel installation requiring secure connectors.
Strain relief built-in to enhance connector durability during mechanical stress.
Amphenol Industrial MS3102A circular connectors are widely used in industrial, laboratory, military, aerospace, shipboard, and other professional electronic applications where reliable connections are critical under demanding conditions.
Find a range of Mil Spec Circular Connectors and related electronic components at EnvMart for your power and connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports voltages of 500 and 700V AC.
It has a current capacity of 5A.
It features a box mount design suitable for equipment panel installation.
The housing is made from aluminium with a zinc cobalt plating, and the contacts are copper alloy with silver plating.
It is rated IP67, providing protection against dust and water ingress.
The connector operates reliably within a temperature range of -55°C to 125°C.
This connector has a total of 37 contacts.
It uses a screw coupling mating type for secure connections.
The shell size for this model is 28.
It is built to MIL-DTL-5015 standards, ensuring robust mechanical and electrical integrity.
It utilizes a solder termination type.
It is designed for industrial, military, aerospace, and laboratory applications requiring reliable connections in harsh environments.
