RS PRO 10-Contact Male Interface Module IDC Connector DIN Rail Mount 50V 1A 403-308

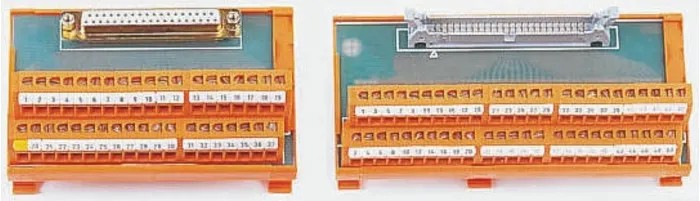

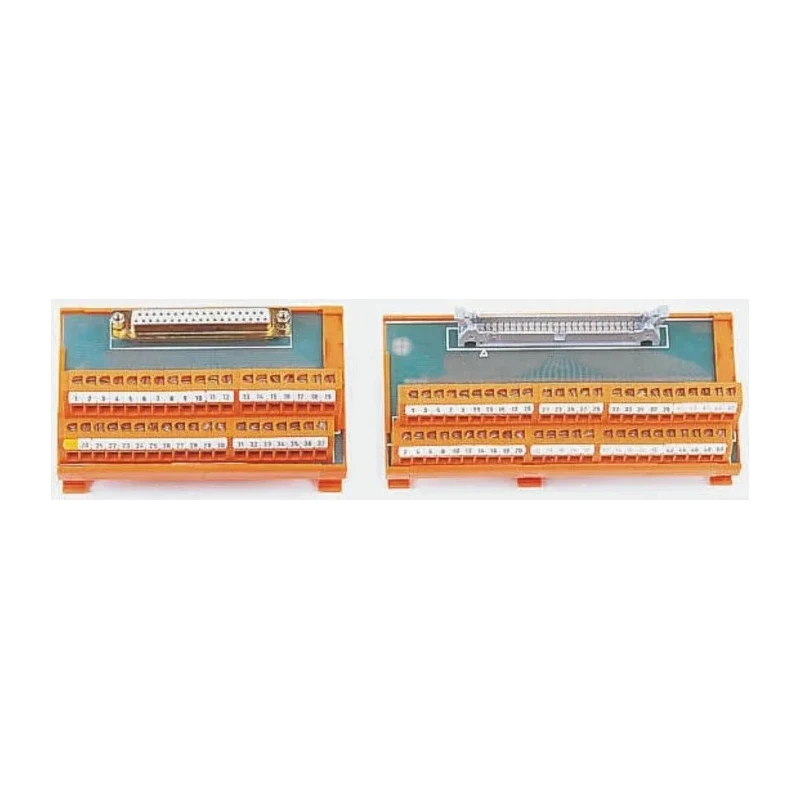

RS PRO 403-308 10-Contact Male Interface Module IDC Connector is a robust and reliable electrical connector module designed for secure interfacing of electrical cables to I/O cards and electronic devices. It accommodates a straight male IDC connector with 10 contacts and is purpose-built to mount on standard BS 5584:1978 DIN rails, facilitating easy and standardized installation in various electrical enclosures.

The module features an orange polyamide 6.6 housing providing excellent mechanical stability and insulation. The connector contacts are gold plated to ensure optimal conductivity and resistance to corrosion, enhancing the longevity of the connection in demanding electrical environments.

This interface module supports wire sizes 14 and 22 AWG with a cable cross-sectional area up to 4 mm² for solid conductors and 2.5 mm² for flexible cables, making it versatile for various cabling setups. It is rated for 1 ampere current and 50 volts operating voltage, suitable for low power control circuits and signal interfacing.

The operating temperature range from -20°C to +50°C ensures dependable performance under typical industrial conditions. Physical dimensions of the module include a width of 70 mm, depth of 62 mm, and length of 45 mm, making it compact for panel and rack-mount applications.

Provides stable and secure male IDC plug connection with 10 contacts. Mounts easily on standard DIN rail for organized electrical setup. Housing constructed from durable orange polyamide 6.6 material. Gold plated contacts for enhanced conductivity and corrosion resistance.

Supports wire sizes 14 and 22 AWG, with cable CSA up to 4 mm² solid and 2.5 mm² flexible. Operating voltage 50V and maximum current 1A ratings suitable for control circuits. Operating temperature range from -20°C to +50°C for industrial environments.

Compact dimensions for easy integration into electrical panels and enclosures. No formal approvals or certifications specified. Ideal for industrial, manufacturing, instrumentation, and power connector applications.

This RS PRO interface module is a dependable component designed to facilitate efficient and secure electrical connections in industrial and electronic settings. It provides a practical solution for engineers requiring standardized DIN rail mounting connectors with IDC interface compatibility.
