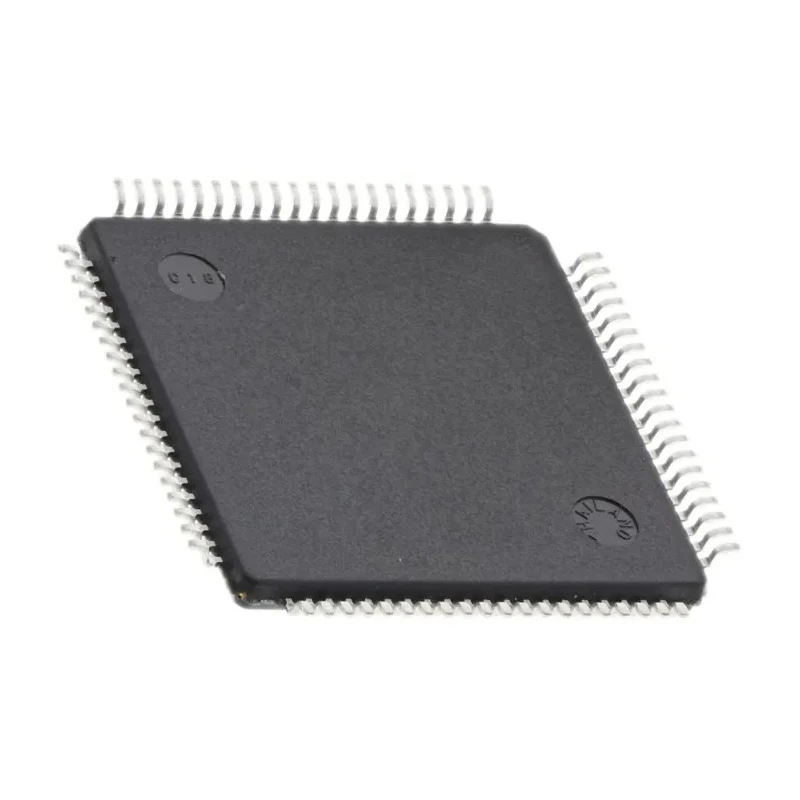

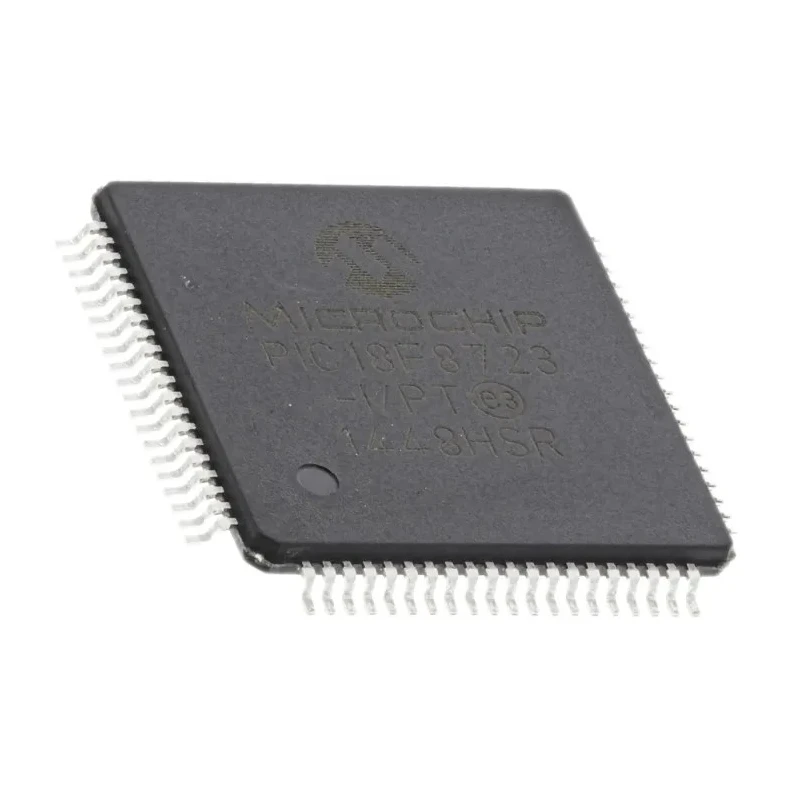

Microchip 8 bit PIC18F Microcontroller, 40 MHz, 128kB FLASH, 80-Pin TQFP PIC18F8723-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 12mm |
| Model | PIC18F8723-I/PT |
| Width | 12mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.94kB |
| Standards/Approvals | RoHS |
| Pin Count | 80 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 70 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 1.02kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- Operates up to 40 MHz maximum clock frequency.
- Features 8 bit PIC device core architecture with RISC instruction set.
- Includes 128kB FLASH program memory and 3.94kB RAM size.
- Equipped with 16 x 12 Bit ADC channels and 2 analogue comparators.
- Supports multiple serial communication protocols (I2C, SPI, LIN).
- 80-Pin TQFP surface mount package with 70 programmable I/Os.
- Operating voltage from 1.8V to 5.5V with 800mW maximum power dissipation.
- Suitable for industrial control, instrumentation, and embedded systems.
Product Description
Microchip PIC18F8723-I/PT is an 8 bit PIC microcontroller designed for complex, low power embedded applications. It operates at a maximum clock frequency of 40 MHz and provides 128kB of FLASH memory along with 3.94kB of RAM, making it ideal for instrumentation panels, TCP/IP enabled devices, and industrial control and monitoring.
This microcontroller package features an 80-Pin TQFP surface mount, supporting up to 70 programmable I/O pins. It offers multiple serial communication options including double synchronous serial ports (I²C™ and SPI™) and double asynchronous serial ports capable of LIN communication. It includes a 12-bit ADC with 16 channels, two analogue comparators, a DAC, and up to 5 timers for versatile application use.
The device supports operation within a voltage range of 1.8V to 5.5V and can operate reliably in climates from -40°C up to 85°C temperature. Its architecture uses RISC instruction set, providing efficient and flexible programming and execution.
This microcontroller is suited for industrial, laboratory, manufacturing, and communication applications requiring substantial memory, multiple interfaces, and a robust operating temperature range. It is also RoHS compliant, ensuring environmental safety standards.
Operates up to 40 MHz maximum clock frequency. Features 8 bit PIC device core architecture with RISC instruction set. Includes 128kB FLASH program memory and 3.94kB RAM size. Equipped with 16 x 12 Bit ADC channels and 2 analogue comparators.
Supports multiple serial communication protocols (I2C, SPI, LIN). 80-Pin TQFP surface mount package with 70 programmable I/Os. Operating voltage from 1.8V to 5.5V with 800mW maximum power dissipation. Suitable for industrial control, instrumentation, and embedded systems.
Reliable across -40°C to 85°C operating temperature range. RoHS compliant for environmental safety. Explore other Microcontroller solutions and components at EnvMart to find ideal parts for your embedded system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It operates within a voltage range of 1.8V to 5.5V.
This microcontroller includes 128kB of FLASH program memory.
The dimensions are 12mm x 12mm with a height of 1.05mm.
It supports up to 70 programmable I/O pins.
It supports multiple serial communication protocols including I2C, SPI, and LIN.
The RAM size is 3.94kB.
It can operate reliably in temperatures ranging from -40°C to 85°C.
It is equipped with 16 x 12-bit ADC channels.
This model comes in an 80-Pin TQFP surface mount package.
There are 5 timers available in this microcontroller.
Yes, this microcontroller is RoHS compliant, ensuring it meets environmental safety standards.
