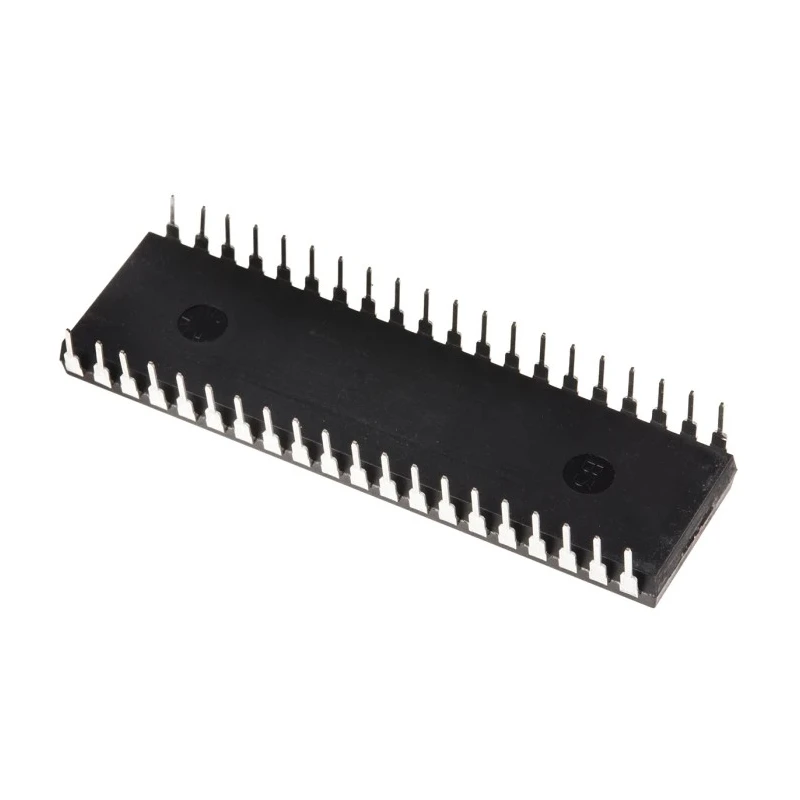

Microchip 8 bit PIC18F Microcontroller, 40 MHz, 16kB FLASH, 40-Pin PDIP PIC18F442-I/P

Microchip PIC18F442-I/P is an 8 bit PIC microcontroller designed for embedded applications requiring efficient 40 MHz processing speed and moderate memory capacity. This device features a 16kB FLASH program memory, 768 bit RAM, and incorporates 8 ADC channels with 10 bit resolution, facilitating precise analog input conversion.

It operates on a voltage range from 4.2V minimum to 5.5V maximum supply, with a power dissipation up to 1W, ensuring stable operation within embedded circuit power constraints. The microcontroller offers 4 timers and employs a RISC architecture providing streamlined instruction execution for optimal performance.

The unit comes in a 40-pin PDIP package suitable for through-hole mounting, measuring 52.45 mm in length, 14.22 mm in width, and 4.06 mm in height, making it compatible with standard DIP sockets and prototyping boards.

Operating temperature ranges from -40°C to 85°C allow deployment in varied industrial and commercial environments. Compliance with RoHS directs its suitability for environmentally conscious manufacturing.

Key applications include embedded controllers, automation systems, instrumentation, and other electronics requiring moderate program memory and analog processing capability. Operates with 40 MHz maximum clock frequency for responsive task handling.

Offers 16kB FLASH memory for application code storage. Supports 8 analog inputs via 10 bit ADCs for sensor interfacing. RISC architecture ensures efficient instruction execution and low power consumption. 40-pin PDIP package supports standard commercial and hobbyist circuit integration.

Wide operating voltage and temperature ranges for versatile application environments. Meeting RoHS compliance aligns with global manufacturing standards. Microchip products can be explored in the Electronics & Electricals category at EnvMart for related semiconductor and Microcontroller solutions.
