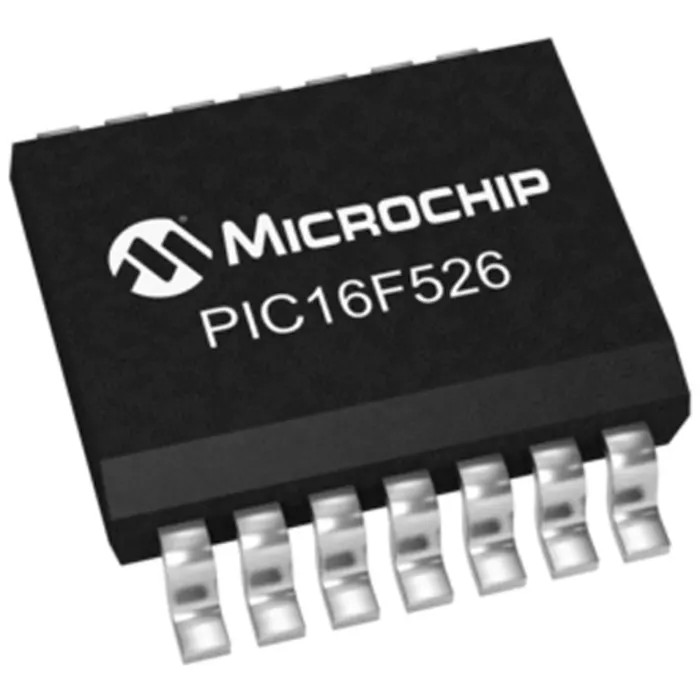

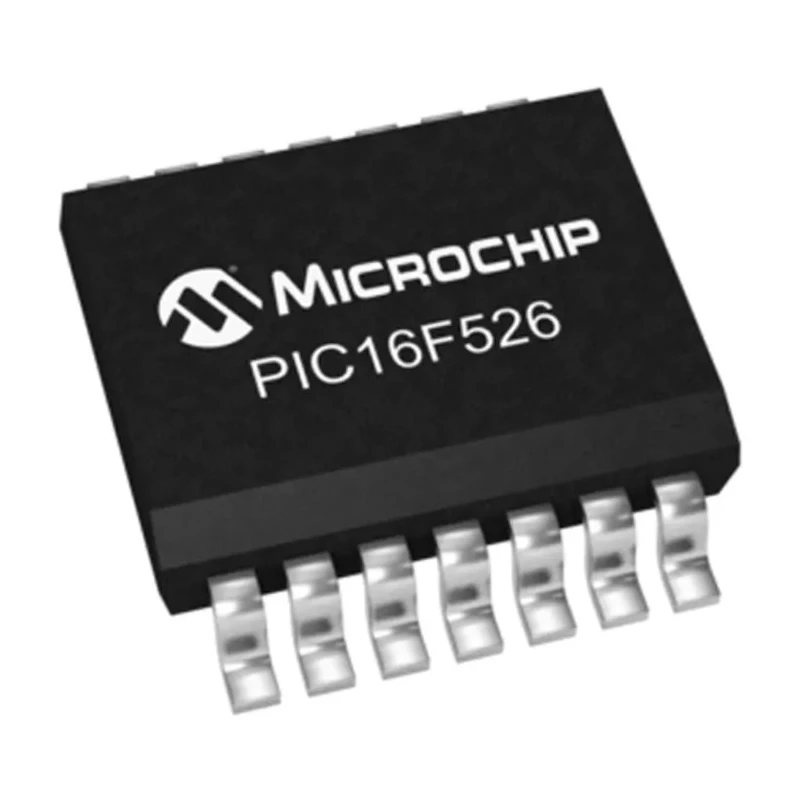

Microchip 8-bit PIC Microcontroller, PIC16F Series, 1.5 KB FLASH, 20 MHz, 14-Pin SOIC PIC16F526-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F526-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 67bit |
| Interface Type | SPI |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 700mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 1.5kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 3 x 8 Bit |
| Program Memory Type | FLASH |
Key Features
- Implements 33 instruction RISC architecture for efficient processing.
- Operates with 1.8 V to 5.5 V supply voltage.
- Includes 67 bytes RAM and 64 bytes Data EEPROM for versatile data storage.
- Features built-in 8-bit ADC with 3 input channels for analog signal processing.
- Equipped with two analog comparators and one 8-bit timer for advanced control.
- Supports In-Circuit Serial Programming (ICSP) and debugging capabilities.
- Offers power-on reset, watchdog timer, and device reset timer for reliability.
- Operates in temperature range from -40°C to 85°C suitable for industrial environments.
Product Description
Microchip PIC16F526-I/SL is an 8-bit PIC microcontroller from the PIC16F series featuring a 1.5 KB Flash program memory and a maximum operational clock frequency of 20 MHz. It is packaged in a 14-pin SOIC surface-mount format, designed for embedded system applications requiring low power and compact size.
This microcontroller employs a RISC architecture with 33 instructions and a 2-level hardware stack, enhancing performance efficiency. It supports a supply voltage range of 1.8 V to 5.5 V, making it versatile for diverse power environments.
RAM of 67 bytes and 64 bytes of data EEPROM facilitate flexible data handling, while three 8-bit ADC channels support precise analog signal conversions. Two analog comparators and a single 8-bit timer enable sophisticated timing and control operations.
Additional features include Power-On Reset (POR), Watchdog Timer (WDT), and Device Reset Timer (DRT), which provide reliable operation and protection against system failures. ICSP and In-Circuit Debug (ICD) support enhance development and troubleshooting capabilities.
The device operates reliably within industrial temperature ranges from -40°C to +85°C. Its compact dimensions, height of 1.5 mm, length of 8.65 mm, and width of 3.9 mm, make it suitable for applications where PCB space is limited.
This microcontroller is ideal for industrial, automotive, consumer electronics, and embedded control systems requiring efficient program execution and flexible I/O configurations. Implements 33 instruction RISC architecture for efficient processing.
Operates with 1.8 V to 5.5 V supply voltage. Includes 67 bytes RAM and 64 bytes Data EEPROM for versatile data storage. Features built-in 8-bit ADC with 3 input channels for analog signal processing. Equipped with two analog comparators and one 8-bit timer for advanced control.
Supports In-Circuit Serial Programming (ICSP) and debugging capabilities. Offers power-on reset, watchdog timer, and device reset timer for reliability. Operates in temperature range from -40°C to 85°C suitable for industrial environments.
Designed for surface mount applications with a space-saving 8.65 mm × 3.9 mm footprint. Explore more Microchip Microcontrollers and embedded solutions at EnvMart for your next industrial or commercial electronics project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this microcontroller is 20 MHz.
It operates with a supply voltage range of 1.8 V to 5.5 V.
This microcontroller features 1.5 KB of FLASH program memory.
It includes 67 bytes of RAM and 64 bytes of Data EEPROM for data storage.
The dimensions are 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height.
It supports SPI as the interface type.
It operates reliably within a temperature range from -40°C to +85°C.
The PIC16F526-I/SL is equipped with two analog comparators.
The maximum power dissipation is 700 mW.
This model has 25 programmable I/Os.
It employs a RISC architecture with 33 instructions.
It includes features like Power-On Reset (POR), Watchdog Timer (WDT), and Device Reset Timer (DRT) for reliability.
