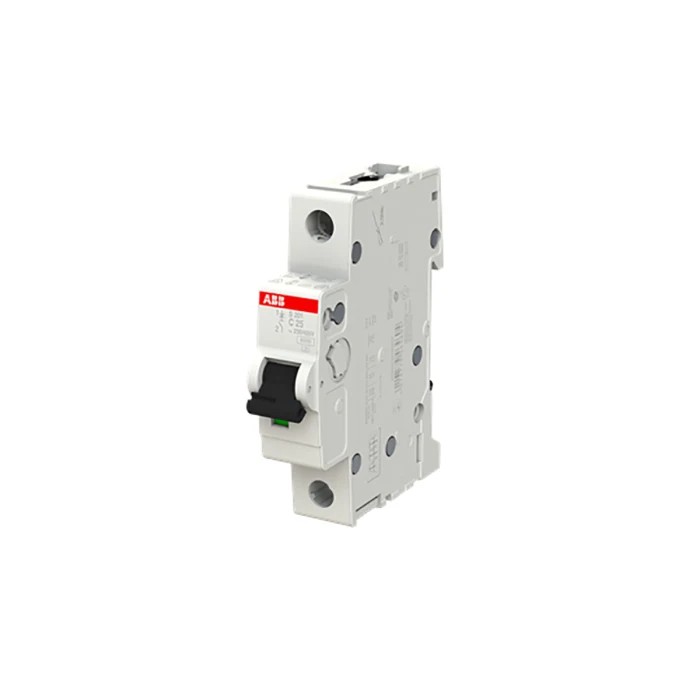

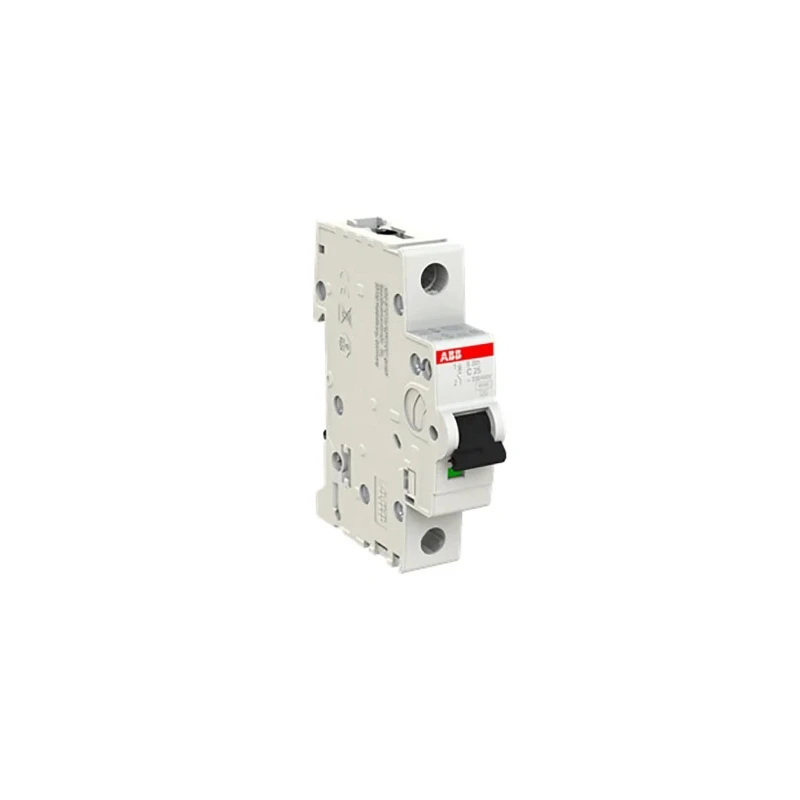

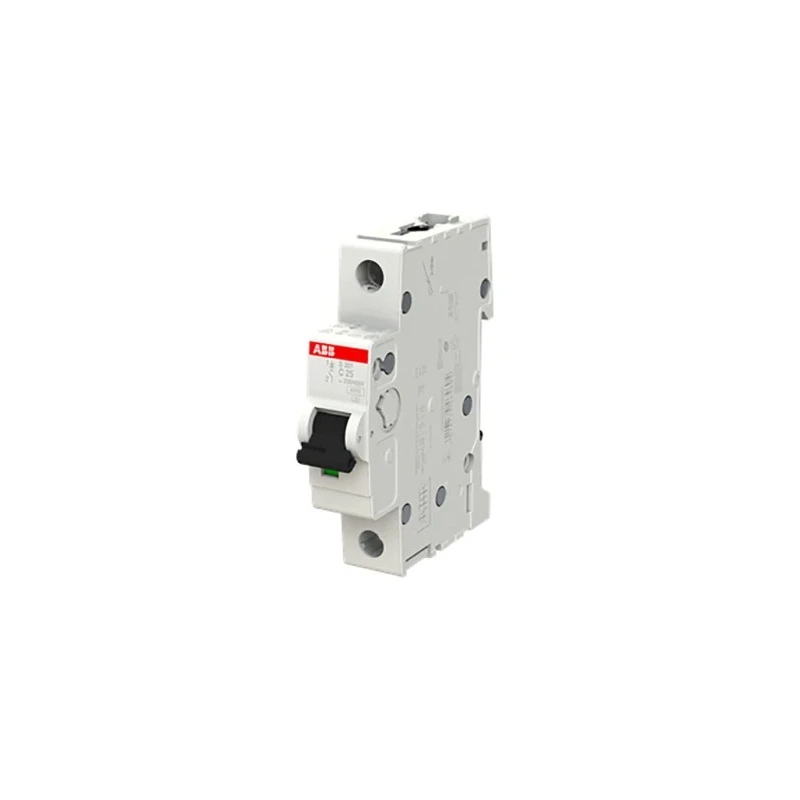

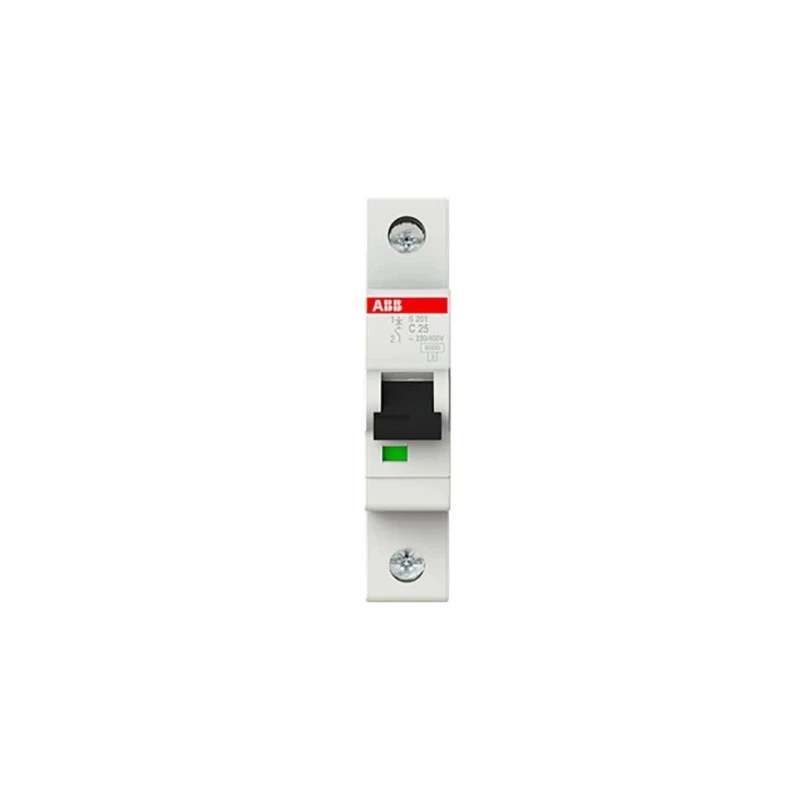

ABB System Pro M Compact Miniature Circuit Breaker, 1-Pole, 25A, Type C, 400V AC, 72V DC, 20kA 2CDS251001R0254 S201-C25

ABB 2CDS251001R0254 S201-C25 System Pro M Compact Miniature Circuit Breaker is engineered for dependable protection of electrical circuits against overloads and short circuits. With a compact, single-pole configuration rated at 25 amperes, it is suitable for demanding commercial and industrial electrical installations.

This breaker incorporates a current limiting design enhancing system safety and reliability. Its Type C tripping characteristic is optimized for effective response to short circuit events, making it ideal for a wide range of electrical equipment protection scenarios. The device accommodates high fault currents with a robust 20 kA breaking capacity to safeguard circuits.

The thermal tripping mechanism functions by heating a bimetallic strip when excess current passes through, disconnecting the circuit promptly to prevent damage. The toggle switch reset actuator allows straightforward manual reactivation after fault clearance.

Conforming to IEC/EN 60898-1 standards, this circuit breaker guarantees quality and safety compliance. It mounts easily on standard DIN rails with screw terminals that ensure secure electrical connections when tightened properly.

Its IP20 and IP40 ratings provide basic protection against ingress of solid objects and partial protection against water. The compact dimensions of 88 mm height, 69 mm width, and 88 mm depth enable space-efficient installations, especially where panel space is limited.

Rated for operation in ambient temperatures from -25°C to +55°C, it is suitable for various industrial and commercial environments, delivering reliable performance under diverse conditions.

Features a current limiting design to enhance electrical system safety. Type C tripping characteristic ensures effective protection against short circuits. Offers 20 kA breaking capacity for handling high fault currents safely.

Thermal tripping mechanism provides reliable overload protection. User-friendly toggle switch enables easy circuit resetting. Complies with IEC/EN 60898-1 standards for quality and safety assurance. Designed for DIN rail mounting with secure screw terminals.

IP20 and IP40 rated offering protection against ingress in various environments. Compact dimensions measure 88mm height, 69mm width, and 88mm depth. Operating ambient temperatures range from -25°C to +55°C.

This ABB Miniature Circuit Breaker is ideal for safeguarding electrical installations in industrial, commercial, manufacturing, and building environments. It ensures reliable protection of circuits powering motors, lighting, and general power distribution systems. Its compact form factor and robust construction make it a preferred choice for electrical professionals installing and maintaining safe electrical circuits.

Explore the full range of ABB System Pro M Compact circuit breakers for enhanced electrical protection solutions available at EnvMart.
