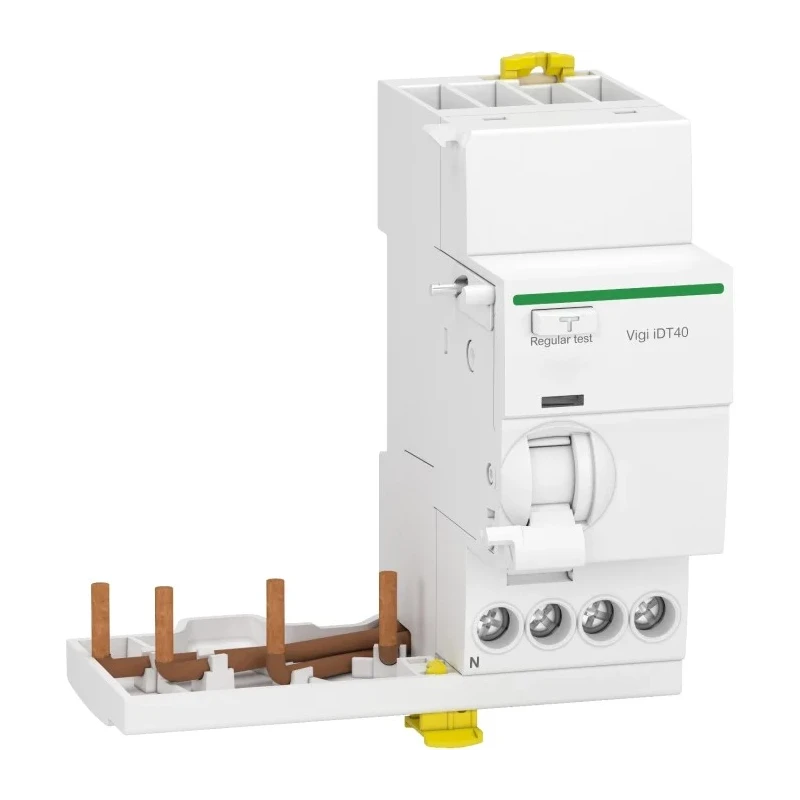

Schneider Electric Residual Current Device 40A, 3-Pole, 30 mA Trip Sensitivity, AC Earth Leakage Protection, DIN Rail iDT40

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric Residual Current Device 40A, 3-Pole, 30 mA Trip Sensitivity, AC Earth Leakage Protection, DIN Rail iDT40

Name: Schneider Electric Residual Current Device 40A, 3-Pole, 30 mA Trip Sensitivity, AC Earth Leakage Protection, DIN Rail iDT40
Brand: Schneider Electric
SKU: 159565
Price: 554.73 USD
Availability: InStock



Category Residual Current Device Brand Schneider Electric Condition New

Specifications

Country of Origin	Spain
Range	Acti9
Brand	Schneider Electric
Height	99.5mm
Model	iDT40
Depth	99.5mm
Width	74mm
Mount Type	DIN Rail
Current Rating	40A
Series	Vigi iDT40
Terminal type	Tunnel
Number of Poles	3
Standards/Approvals	NF, EN/IEC 61009-2-1, CE
Tripping Mechanism	Thermal Magnetic
Reset Actuator Type	Toggle Switch
Trip Sensitivity	30mA
Break Time	Instantaneous
Earth Leakage Protection Type	AC

Key Features

Designed for instantaneous tripping to ensure rapid fault response.
Type AC earth leakage protection for enhanced electrical safety.
Tunnel type terminals provide secure and reliable electrical connections.
Compact form factor with dimensions 99.5mm height, 74mm width, and 99.5mm depth.
Equipped with toggle switch reset actuator for easy manual reset.
Suitable for mounting on standard DIN rail systems.
Thermal magnetic tripping mechanism for reliable operation.
Conforms to NF, EN/IEC 61009-2-1, CE standards and approvals.

Product Description

Schneider Electric iDT40 Residual Current Device (RCD) is a high-performance protection component for electrical installations requiring reliable earth leakage detection and safety. Rated for a current capacity of 40A and a trip sensitivity of 30mA, this 3-pole device facilitates the rapid interruption of electrical circuits to prevent electrical hazards.

Its compact dimensions of approximately 99.5mm height, 74mm width, and 99.5mm depth enable seamless integration into control panels and industrial enclosures, mounted conveniently on DIN rails. The device employs a thermal magnetic tripping mechanism coupled with an instantaneous break time providing quick response to earth faults.

The RCD features type AC earth leakage protection, suitable for alternating currents, and incorporates tunnel type terminals which bolster secure and maintainable electrical connections. The toggle switch actuator allows for straightforward manual reset operation post-tripping events.

Certified to comply with NF, EN/IEC 61009-2-1, and CE standards, the iDT40 series assures safe, compliant, and dependable operation suited for diverse applications including commercial facilities, industrial plants, and residential electrical distribution boards.

Instantaneous tripping mechanism for fast fault detection and response. Type AC earth leakage protection enhances safety during AC fault conditions. Tunnel terminal design improves connection security and ease of installation.

Compact and robust construction suitable for DIN rail mounting. Toggle switch reset actuator facilitates simple operational control. Thermal magnetic tripping mechanism ensures reliable and sensitive protection. Meets stringent international standards and certifications.

Applicable across industrial, commercial, and residential electrical installations. Operates efficiently in humid environments with up to 95% relative humidity. Manufactured in Spain, guaranteeing high quality and durability.

This Schneider Electric iDT40 Residual Current Device combines safety, reliability, and installation convenience, making it an essential component for electrical systems requiring earth fault protection.
